Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Product Name: | Led Display Module | Module Size(W * H): | 192mm*192mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 3mm | Module Qty: | 1pcs |
| Usage: | Indoor Use | Resolution(W*H): | 64dots*64dots |
| High Light: | led screen module,led sign module |
||

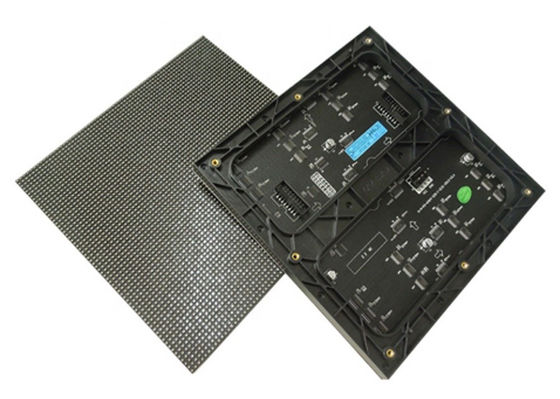

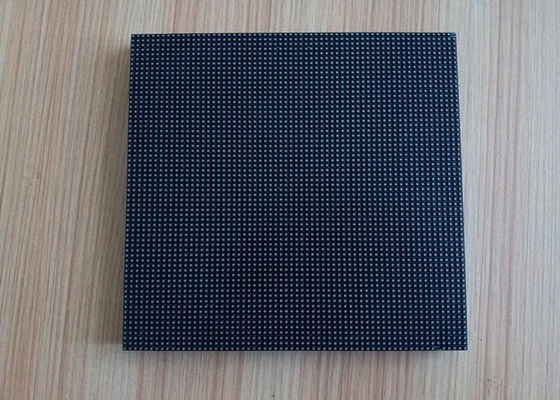

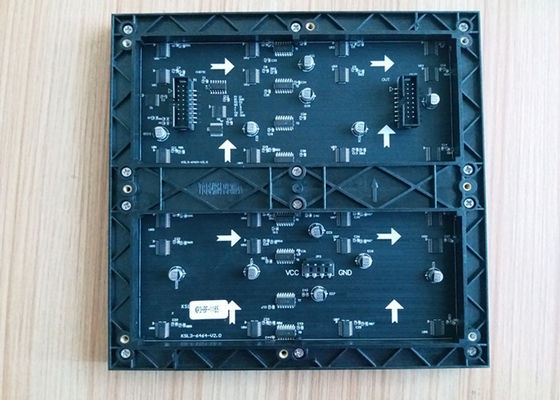

super high definition indoor p3 SMD full color module with resolution 64dots*64dots
LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportantion,Security,
Real estate and Stage show background.
| High quality and resolution outdoor full color led led display P3 smd 2121 | ||||||||||||||
| Resolution/mm | 3 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192x192mm | |||||||||||||
| View distance | 1-150m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | 2500 cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/16 scan) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >10000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 100000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <700W | |||||||||||||
| Average power:/㎡ | <200W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
The epistar Led chip. with SMD Technology .
we adopt the epistar led chip from Taiwan, SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
