Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P4 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |

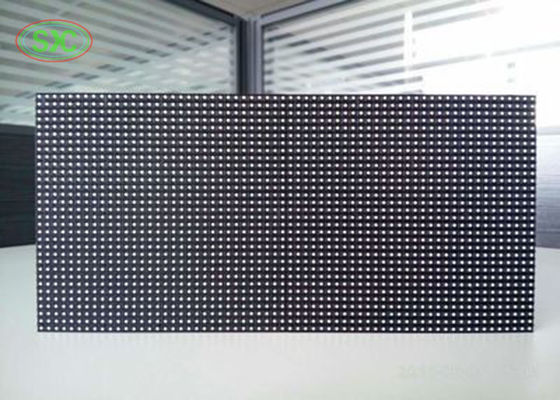

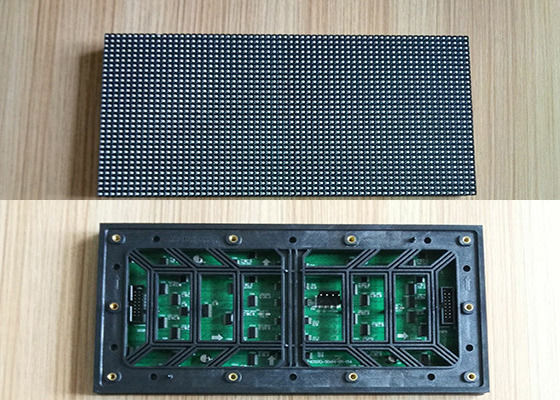

| Product Name: | Led Display Module | Module Size(W * H): | 256mm*128mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001 | Tube Chip Color: | Full Color |
| Pixel Pitch: | 4mm | Module Qty: | 1pcs |
| Type: | Free Standing | Resolution(W*H): | 64dots*32dots |
| High Light: | led sign module,rgb led display module |
||
|
1, Item Name |
technology parameter |
|
2, pixel tube: |
pixel pitch:4mm; primary colors: pure red+pure green+pure blue , color composing: 3 in 1 Density:62500dots/sq m; SMD3528 |
|
3 , unit box |
module size:256mm×128mm; Module resolution:64x32 cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
|
4, whole screen: |
the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
|
|
5, operating voltage |
AC220V±10% or 110V±10% ,average consumption:500 W/sq m max consumption:≤650 W/ sq m |
|
6, main parameter |
1) driving mode: 1/8 scan 2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥7000cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768
|
Applications:
The led display module is very popular in LED display advertising field. This type digital billboards module are widely used ,store ,stadium,shopping ,airport etc;
Features :
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle
The epistar Led chip. with SMD and DIP Technology .
competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Methods for Quality Assurance
a. Aging
100% fully test :Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition:3-5 min up and down in 5mm range
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
