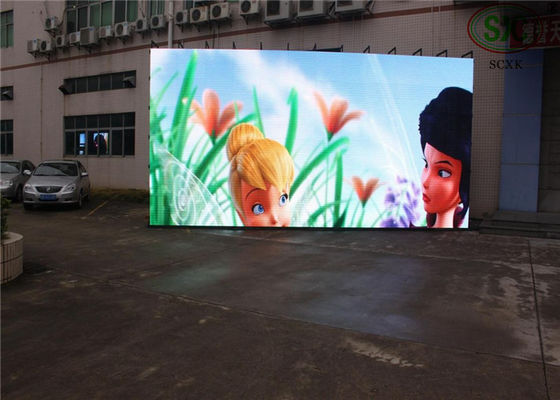

GOB High brightness photo SMD 3 in 1 indoor usage RGB LED Display outdoor For exhibition

GOB High brightness photo SMD 3 in 1 indoor usage RGB LED Display outdoor For exhibition

  • GOB High brightness photo SMD 3 in 1 indoor usage RGB LED Display outdoor For exhibition
GOB High brightness photo SMD 3 in 1 indoor usage RGB LED Display outdoor For exhibition
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMDP5in-F
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: 5mm SMD 3 In 1 Indoor Usage RGB LED Display With 1/16 Scanning 160mmx160mm Usage: Outdoor
Pixels: 5mm Led Type: SMD3528
Tube Chip Color: Full Color Display Function: Video
Waterproof: IP30 Cabinet: Steel Or Aluminum For Options
Highlight:

led display rgb

,

rgb led screen

Shenzhen ShiChuangXinKe Electronics Co.,Ltd



♦ What we do ?



We are a professional led manufacturer,specialized in this field for 10 years,item mainly cover led

displays both indoor and outdoor,OEM and a chain service are all available,quality good and perfect

 service,you deserve it.



♦ Product



5mm  SMD 3 in 1 indoor usage RGB LED Display  With 1/16 scanning 160mmx160mm





♦ Applications



Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion

shows, concerts, ceremonies, entertainment,etc.



♦ Our advantages

Professional Manufacturer of led display



1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.





♦ Product specification

indoor  SMD P5
Lamp size 3528
Resolution/mm 5
Pixel configuration RGB  3 in 1
Pixel density/pixels/m² 40000/m²
Module resolution 32x32
Module size/mm 160x160
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <750W
Average power:/㎡ <250W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



♦ Production process:



1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.





♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





♦ Frequently Asked Questions



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display  quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
