Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | SMDP7.62in-F |
Minimum Order Quantity: | negotiatiable |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Product Name: | 7.62mm SMD 3 In 1 Indoor Usage RGB LED Display With 1/8 Scanning 244mmx122mm | Usage: | Outdoor |
---|---|---|---|
Pixels: | 7.62mm | Led Type: | SMD3528 |
Tube Chip Color: | Full Color | Display Function: | Video |
Waterproof: | IP30 | Cabinet: | Steel Or Aluminum For Options |
Highlight: | led display rgb,full color outdoor led display |
♦ What we do ?
We are a professional led manufacturer,specialized in this field for 10 years,item mainly cover led displays
both indoor and outdoor,OEM and a chain service are all available,quality good and perfect service,you
deserve it.
♦ Product
7.62mm SMD 3 in 1 indoor usage RGB LED Display With 1/8 scanning 244mmx122mm
♦ Applications

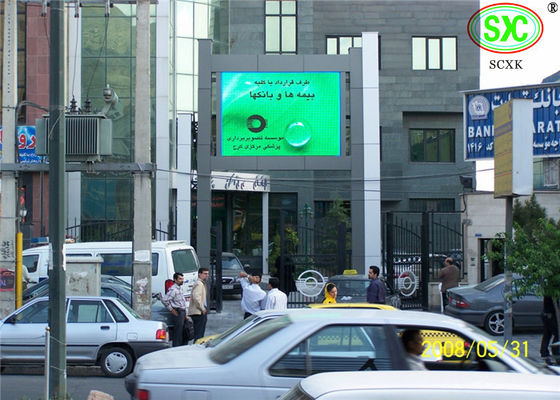

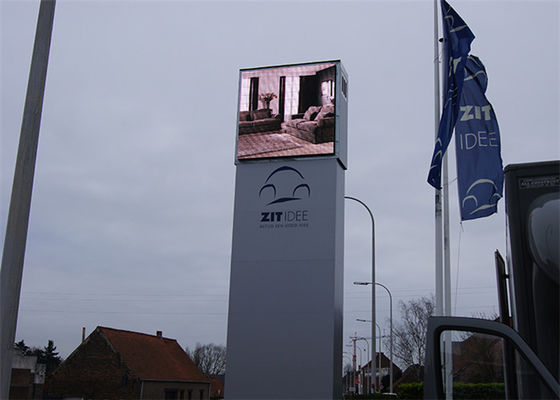

Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Product specification
indoor SMD P7.62 | ||||||||||||||
Lamp size | 3528 | |||||||||||||
Resolution/mm | 7.62 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 17222/m² | |||||||||||||
Module resolution | 32x16 | |||||||||||||
Module size/mm | 244x122 | |||||||||||||
View distance | ≥7m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >2000cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 120(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/16 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >1200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <370W | |||||||||||||
Average power:/㎡ | <200W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
♦ Production process:
1) Incoming Inspection→2) SMD→3)Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Our team will be forever here to offer you full supports !!!
