Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO |
| Model Number: | P5 |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD404-428per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7 working days after deposit payment received |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 3000sqm per month |
| Pixel Pitch: | P5 | Display Function: | Video |
|---|---|---|---|
| Module Resolution: | 64*32 | Tube Chip Color: | FULL COLOR |
| Module Size: | 320*160MM | Scanning Mode: | 1/16scan |
| Usage: | Indoor | Pixel/㎡: | 40000dots |
| Cabinet Size: | 640*640MM | ||
| Highlight: | p5 led display full color,stage background led display full color,p5 indoor smd screen |
||
| P5 LED Billboard Dislplay | |
| Resolution/mm | 5mm |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 40000/square meter |
| Module resolution | 64x32 |
| Module size/mm | 320x160MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >600Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
RGB indoor SMD LED Display Screen P5 with 320mm x 160mm Production Process:

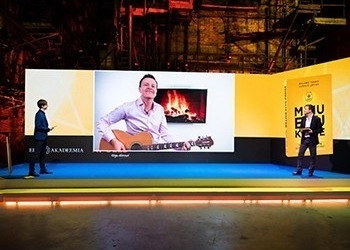

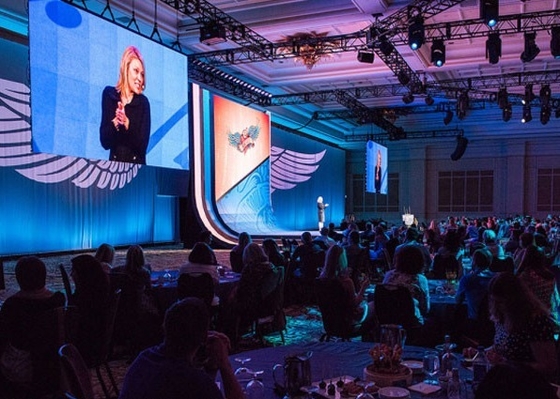

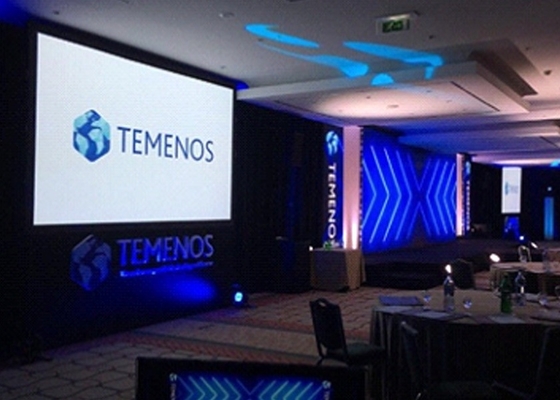

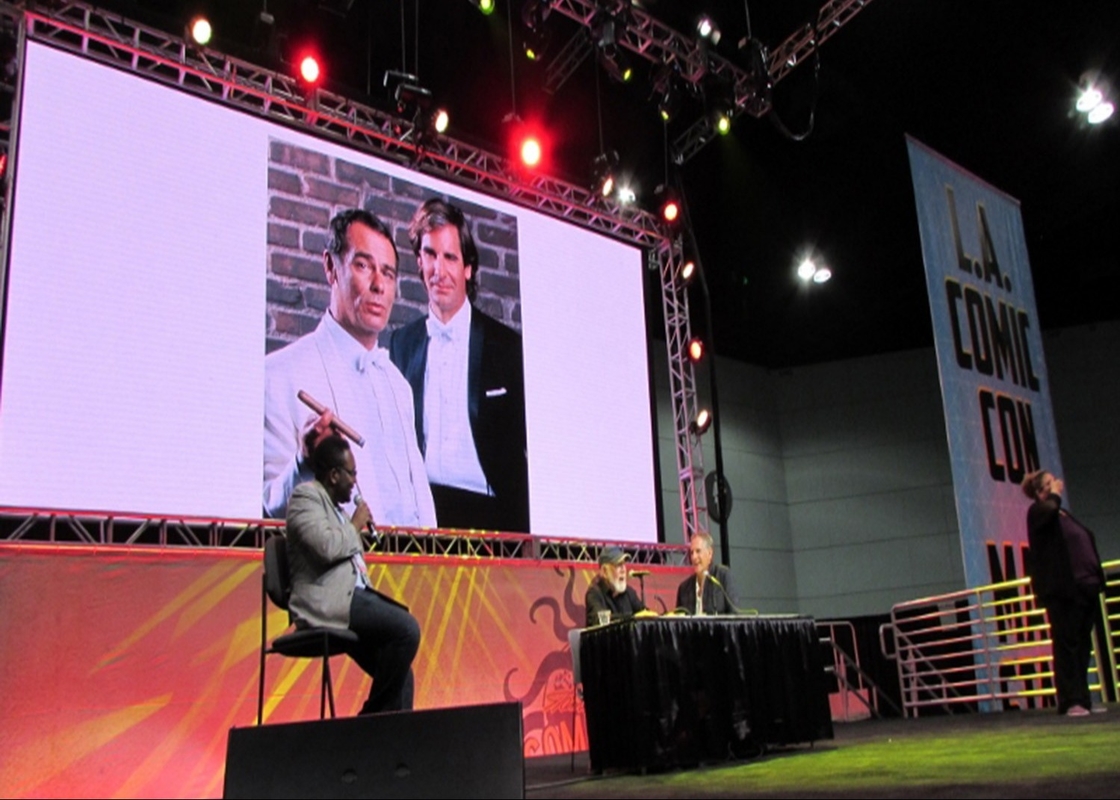

| ♦ Applications |
| --- Outdoor and indoor advertising, digital billboards, advertising companies |
| --- Sports halls, fields, playgrounds,school church |
| --- Airports, bus stations and railway passenger terminals. |
| --- Facades of shopping malls, department stores, banks and car dealerships. |
| --- Architecture and social projects, information systems in cities. |
| --- Show-business, concerts, festivals, motor shows and other public events |
Packaging:
1:Flight Case(3 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(3 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Shipping:
Capacity: above 5000sq.m / month
Pre-sales support
1. provide technical advice to our customers before they buy our products.
2. Help customers to choose the most affordable and suitable products within their budget.
3. design the frame structure according to the technical drawings in order to install our led products.
4. provide software customization service for customer's specific use.
After- sales service
1. We promise our customers 3 years warranty service.
2. we provide our customers with free maintenance services, including remote configuration, technical consultation and troubleshooting.
3. We promise to provide lifelong tracking service for all equipment provided by our company. This includes continuous improvement of system functions and upgrading of system software.
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Certifications:
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
