|Place of Origin:||China|
|Model Number:||SMD P4|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000sqm per month|
|Module Resolution:||64x32||Display Function:||Video|
|Frame Rate:||60Hz||Cabinet:||Steel Or Aluminum For Options|
advertising led display board,
full color led screen
SMD2121 P4 Exhibition Stadium led screen wall High Resolution Energy saving
♦ Quick Detail
1. Super lighter and thinner;
2. Easy to connection and uninstall;
3. It can display,words,texts,graphics and videos.
4. High resolution and high frequency dynamic image.

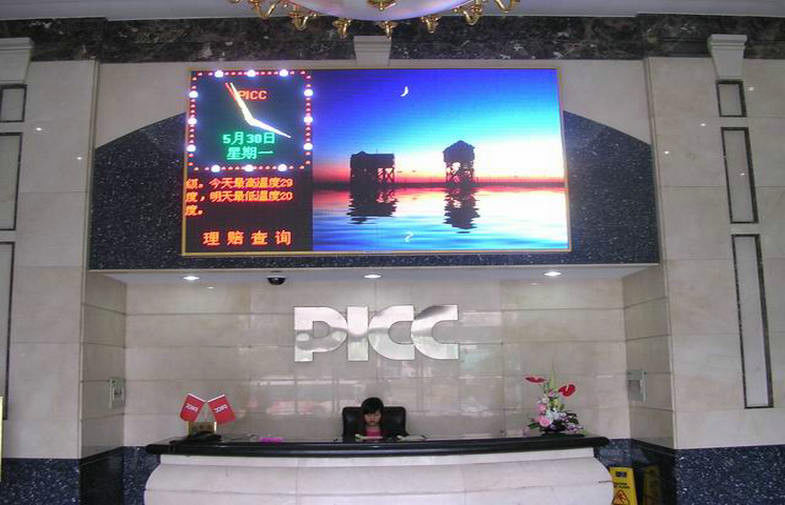

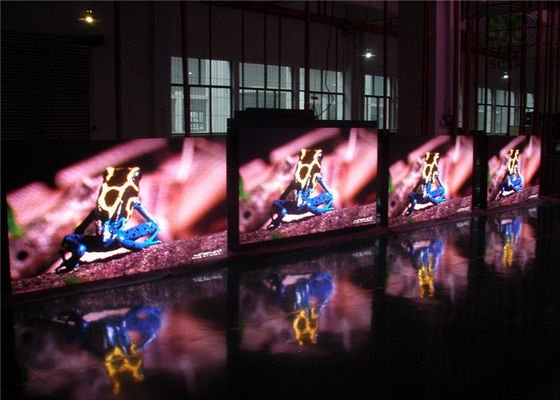

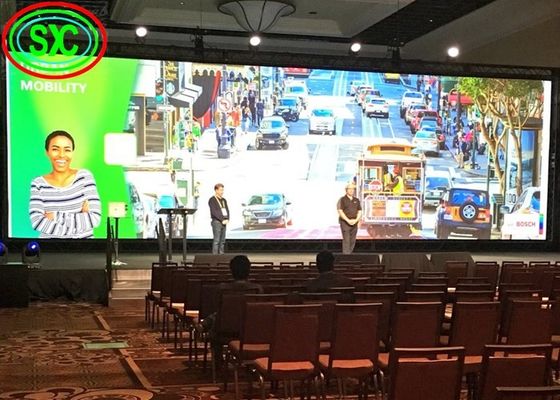

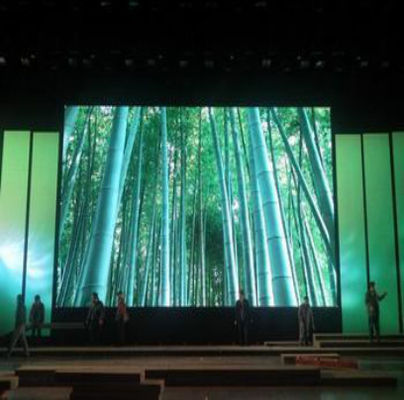

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Product specification
|indoor SMD P4|
|Pixel configuration||RGB 3 in 1|
|Single point brightness adjust||Can be added|
|Single point color adjust||Can be added|
|White balance brightness||>2500cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||120(degrees)|
|Signal Process bit||10 or 14 bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||Internet cable:100m, multimembrane:500m, monofilm:5km|
|Driving mode||Constant driving current|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃ Storing temperature range: -30-65℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
