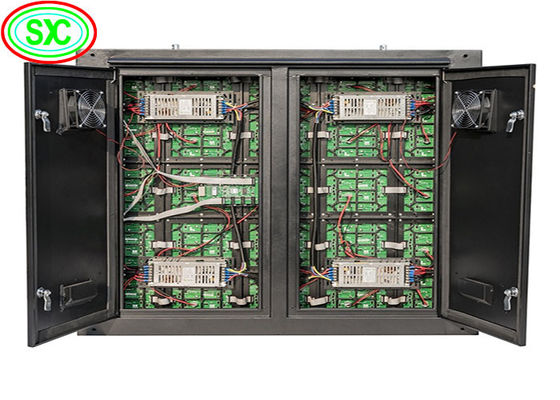

Outdoor P10 Full Color 10mm SMD LED Stadium Display IP65 Waterproof 600W/M²

Outdoor P10 Full Color 10mm SMD LED Stadium Display IP65 Waterproof 600W/M²

Brand Name:	SCXK
Model Number:	P10
MOQ:	5 pcs
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

10mm

Led Type:

SMD 3535

Display Function:

Video

Waterproof:

IP65

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Transmiiting Distance:

Internet Cable <100m

Refresh Rate:

>=180HZ

Maximum Power:

600m2

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

P10 Stadium Led Advertising Billboards

Product Description

P10 Full Color High Definition Football Game Stadium LED Advertising Billboards

Wide Viewing Angle For Broader Reach

The display features a wide viewing angle of 140° which reaches more viewers. The picture quality remains seamless in all directions and at a distance, presenting all viewers with the same high quality output. This makes it suitable for large gatherings.

Product Features

Lightweight design for easy transportation and installation, reducing labor costs and ideal for mobile shows
Attractive appearance with simple structural design
Quick assembly requiring no tools - can be installed and disassembled by one person
User-friendly interface with diagnostic indicator lights for easy maintenance
High brightness adjustment capability with no gray scale damage, ensuring excellent image quality

Applications

Outdoor and indoor advertising, digital billboards, advertising companies
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations and railway passenger terminals
Facades of shopping malls, department stores, banks and car dealerships
Architecture and social projects, information systems in cities
Show-business, concerts, festivals, motor shows and other public events

Technical Specifications

Specification	Details
Model	Outdoor SMD P10
Resolution	10mm
Pixel configuration	1R1G1B
Pixel density	10000/m²
Module resolution	32x16
Module size	320x160mm
View distance	≥10m
Brightness adjustment	Can be added
Color adjustment	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Viewing angles	Horizontal: 120°, Vertical: 60°
Signal processing	10 or 16bit
Grey scale processing	1024x1024x1024 to 65536x65536x65536
Control distances	Internet cable: 100m, multimode: 500m, single mode: 2km
Driving mode	Constant driving current
Scanning mode	1/4
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjustment range	Manual/automatic, 255 steps with no grey loss
Out of control point	<1/10000
Operating temperature	-20°C to 45°C
Power consumption	Max: <950W/m², Avg: <350W/m²
Lifespan	100,000 hours (50,000 hours to half brightness)

Packaging and Shipping

Available in wooden cases or flight cases. Multiple shipping options including sea, air, or DHL express.

Our Services

24-hour response to inquiries
Multilingual support in English, Spanish, French, German, and more
Custom design services with OEM & ODM options
Professional engineering solutions tailored to customer needs
Special distributor discounts and sales area protection
24-month warranty with options for extended coverage
