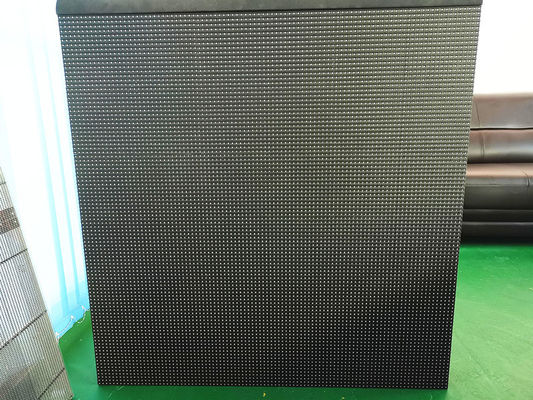

P5 SMD RGB Full Color Stadium LED Display IP65 Waterproof 5000cd/M2

P5 SMD RGB Full Color Stadium LED Display IP65 Waterproof 5000cd/M2

Brand Name:	SCXK
Model Number:	P5
MOQ:	10sqm
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/CB/UL

Pixel Pitch:

5mm

Led Type:

SMD 2727

Display Function:

Video/Text/Image

Waterproof:

IP65

Cabinet:

Die-casting Aluminum Or Iron

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Brightness:

More Than 5000cd/m2

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Fixed Installed Stadium LED Display

Outdoor Stadium LED Display

Full Color Stadium LED Display

Product Description

Full Color Outdoor SMD P5 RGB Stadium LED Display Screen Fixed Installed

Product Specifications

Attribute	Value
Pixel Pitch	5mm
Led Type	SMD 2727
Display Function	Video/Text/Image
Waterproof	IP65
Cabinet	Die-casting aluminum or Iron
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Brightness	more than 5000cd/m²

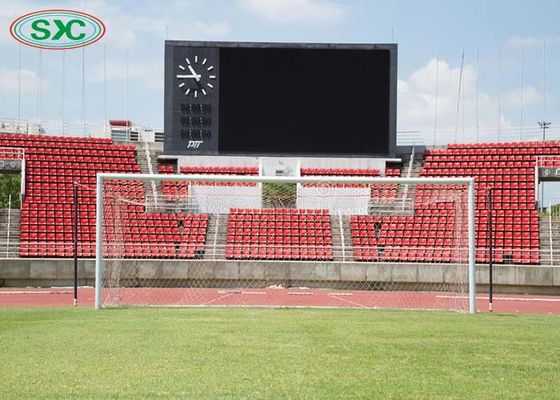

Football Club Stadium P5 Digital Big LED Live Video Wall Billboard Basketball Stadium Sports Score Board

Detailed Specifications

Pitch size: 5mm

Module size: 320mm*160mm

Panel pixel(dots): 64*32

Pixel configuration: 1Red,1Green,1Blue

Color scale: 256-65536grade/16777216colors

Pixel density: 10000 pixel dots

View angle(H/V): 160/120 degree

Brightness: ≥6500cd/square meter

View distance: 5-150m

Power consumption: 100-1200W/square meter

Net weight: 8kg/pcs

Operating temperature: -25°C~+60°C

Operating humidity: 10%--95%RH

Life time: ≥100,000hours

Exchange frame speed: >150frames per second

Refresh frame frequency: 1920-3840Hz

Control distance: 100m (without relay),single mode fiber: 20000m,multi mode fiber:500m-20km

Power: 110V/220V/380V±15% 50Hz

Operating system: Windows98/Me/2000/Xp

Drive mode: constant current driving

Display mode: VGA640X480--VGA1600X1024

Protections for outdoor display: IP65

Accepting signal: PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Key Features of Stadium Perimeter LED Screen

High refresh rate: Up to 3800Hz refresh rate ensures flicker-free performance under professional camera conditions (1/2800 seconds) for ultra high-definition image quality.
Standard size modules: 320mm×160mm panels allow for quick assembling, maintenance, and easy pixel pitch changes (P5mm, P8mm, P10mm) without structural modifications.
Exquisite cabinet design: Lightweight construction with quick locks, delicate structure for gap-free installation, and humanization handlebar design for easy movement.
Independent support structure: Rotatable and adjustable design withstands strong impacts and allows flexible angle adjustment (60°-90° range) to suit various site conditions.
Soft mask design: Unique soft protective pad enhances safety by protecting individuals who might come into contact with the screen.
Ultra light weight cabinet: At only 28.5kg, the outdoor stadium display is easy to transport, install, and saves on labor costs.
Waterproof performance: Special air inlet and waterproof structure provides excellent water resistance while maintaining effective heat dissipation and quiet operation.
IP65 protection level: All-weather outdoor performance with anti-ultraviolet protection, ensuring durability and reliability in any weather condition.

Packaging and Shipping

Wooden case or flight case package available.

Shipping options: sea, air or DHL available.

Our team provides comprehensive support for all your LED display needs!
