P10 Outdoor IP65 Waterproof RGB LED Display Screen For Stadiums Footballfield

P10 Outdoor IP65 Waterproof RGB LED Display Screen For Stadiums Footballfield

Brand Name:	SCXK
Model Number:	P10
MOQ:	6sqm
Price:	negotiation
Payment Terms:	T/T,Western Union,D/P,L/C,MoneyGram
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/CB/UL

Pixel Pitch:

10mm

Led Type:

SMD 3535

Display Function:

Video/Text/Image

Waterproof:

IP65

Cabinet:

Iron Or Aluminum For Options

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Dot Density:

10000dots/ Sqm

Viewing Angle:

160/140

Brightness:

More Than 5000cd/m2

Packaging Details:

flight case/wooden case/carton

Highlight:

P10 RGB Stadium LED Display

Outdoor Waterproof Stadium LED Display

Full Color Stadium LED Display

Product Description

Full Color Outdoor Waterproof P10 RGB Stadium LED Display Screen Fixed Installed

Product Specifications

Attribute	Value
Pixel Pitch	10mm
Led Type	SMD 3535
Display Function	Video/Text/Image
Waterproof	IP65
Cabinet	Iron or Aluminum For Options
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Dot Density	10000dots/ sqm
Viewing Angle	160/140
Brightness	more than 5000cd/m2

Football Club Stadium P10 Digital Big LED Video Wall Billboard Basketball Stadium Sports Score Board

Technical Specifications

Pitch size: 10mm

Module size: 320mm*160mm

Panel pixel(dots): 32*16

Pixel configuration: 1Red,1Green,1Blue

Color scale: 256-65536grade/16777216colors

Pixel density: 10000 pixels/square meter

View angle(H/V): 160/120 degree

Brightness: ≥6500cd/square meter

View distance: 10-300m

Power consumption: 100-1200W/square meter

Net weight: 8kg/pcs

Operating temperature: -25°C~+60°C

Operating humidity: 10%--95%RH

Life time: ≥100,000hours

Exchange frame speed: >150frames per second

Refresh frame frequency: 1920-3840Hz

Control distance: 100m (without relay),single mode fiber: 20000m, multi mode fiber:500m-20km

Power: 110V/220V/380V±15% 50Hz

Operating system: Windows98/Me/2000/Xp

Drive mode: constant current driving

Display mode: VGA640X480--VGA1600X1024

Protections for outdoor display: IP65

Accepting signal: PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Key Features of Stadium Perimeter LED Screen

High refresh rate: Up to 3800Hz refresh rate ensures flicker-free performance under professional camera conditions
Standard size modules: 320mm×160mm panels for easy assembly, maintenance and pitch changes

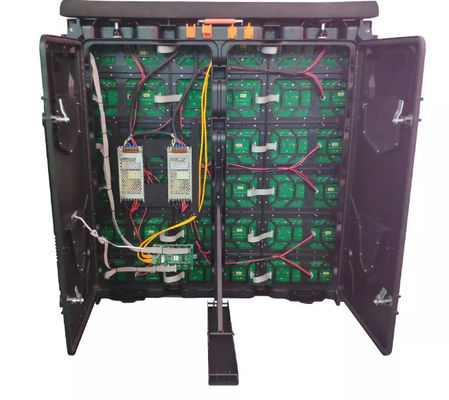

Exquisite cabinet design: Lightweight with quick locks and humanization handlebar for easy installation
Independent support structure: Adjustable installation angles from 60° to 90° for flexible positioning
Soft mask design: Protective padding ensures safety for players and spectators
Ultra lightweight: Only 28.5kg cabinet weight reduces transportation and installation costs
Waterproof performance: Special air inlet and waterproof structure with excellent water resistance
IP65 protection: All-weather durability with anti-ultraviolet and steady performance
