| Brand Name: | SCXK |
| Model Number: | P6 |
| MOQ: | 5 sqm |
| Price: | negotiation |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000 sqm per month |

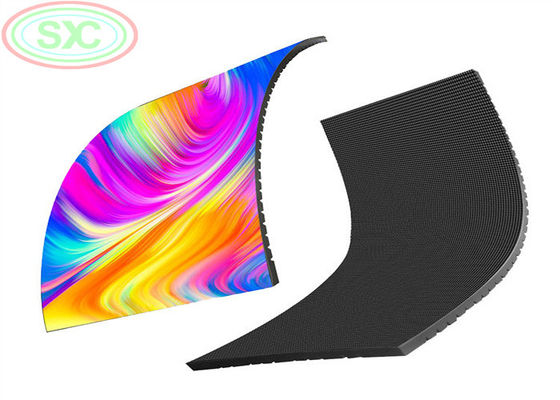

Ultra-high brightness ensures clear visibility even at long distances under direct sunlight. The display features exceptional color uniformity and delicate image quality. Supports curved splicing for seamless integration with surrounding environments, delivering higher visual impact in outdoor settings.
The unique waterproof case protects against severe weather conditions. Independent drainage holes and effective sealant allow normal operation in all outdoor weather conditions with high waterproof rating. Features anti-UV and anti-deformation module kit to maintain screen integrity.
The LED screen can be stitched in any direction, size, or shape without visible seams. Unlike rear projection or liquid crystal splicing, there are no brightness variations between cells or black seams, delivering perfect visual effects. Exquisite unit structure ensures consistent dot spacing for uniform display without separation, black lines, or missing information.
Vertical and horizontal directions feature an ultra-wide 160-degree viewing angle, allowing viewers to enjoy high-quality display from all angles without color patches, black spots, or mosaics.

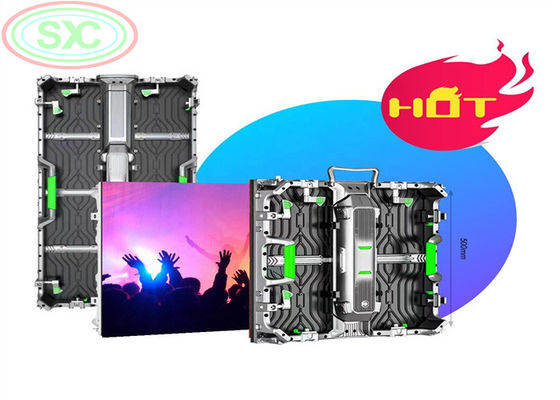

Designed with ultra-thin aluminum box for high precision, easy installation and maintenance. Features superior heat dissipation, low power consumption, and high stability.
| Model Number | HX-P6-8s | Best Viewing Distance | 6M-50M |
| Model Size | 192MM*192MM | Pixel Resolution | 160°(W)120°(H) |
| Pixels Density | 27777dots/㎡ | Temperature | Storage: -35℃/+85℃ |
| Pixel Pitch | 6mm | Operation Humidity | 10%-75% |
| Package Mode | SMD3535/2727 | Working Voltage | AC220V±10% |
| Pixel Resolution | 32Dots(W)*32Dots(H) | Average Power Consumption | ≤320W/m2 ≤370W/m2 |
| Module Thickness | 14.85MM(Non magnetic column) | Max Power Consumption | ≤750W/m2 ≤900W/m2 |
| Model Weight | 0.45kg | Control Method | Synchronization |
| Drive Type | Constant Drive | Driving Device | Constant Drive |
| Brightness White Balance | ≥5500CD/m2 | Refresh Frequency | ≥400HZ |
| Thermal Discharge | Fan Pcs | Frame Frequency | 60HZ |
| Cabinet Dimension | 576MM*576MM | Luminance Level/Color | RGB256 |
| Power Supply | 5V/40A*2PCS | Gray Level | 65536 |
Note: Specifications can be adjusted according to client requirements. Please contact us for any questions.
