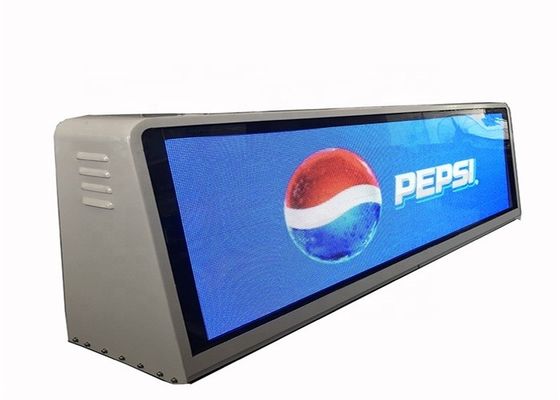

P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet

P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet

Brand Name:	SCXK
Model Number:	P5
MOQ:	3 sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T
Supply Ability:	5000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

5mm

Tube Chip Color:

Full Color

Led Type:

SMD 2727

Waterproof:

Ip65

Cabinet:

Iron/die-casting Aluminum

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Transmiiting Distance:

Internet Cable <100m

Refresh Rate:

>=180HZ

Maximum Power:

800m2

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

P5 Car LED Sign Display

Aluminum Cabinet Car LED Sign Display

Aluminum Cabinet LED Video Display

Product Description

Outdoor Full Color P5 Car LED Sign Display LED Video Display with Aluminum Cabinet

Product Attributes

Attribute	Value
Pixels	5mm
Tube Chip Color	Full color
Led Type	SMD 2727
Waterproof	IP65
Cabinet	Iron/Die-casting aluminum
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Transmitting distance	Internet cable <100m
Refresh Rate	>=180HZ
Maximum power	800m²

Product Description

P5 Car LED Display LED Video Wall Full Color LED Screen 1R1G1B

Our Mission

To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

Key Features

Lightweight design for easy transportation and installation, reducing labor costs - ideal for mobile displays
Sleek appearance with simple structural design
Tool-free assembly/disassembly by a single person
User-friendly interface with diagnostic indicator lights for easy maintenance
High brightness with preserved grayscale for superior image quality

Applications

Outdoor and indoor advertising, digital billboards
Sports venues, fields, playgrounds, schools, churches
Transportation hubs: airports, bus stations, railway terminals
Commercial buildings: shopping malls, department stores, banks, car dealerships
Urban architecture and public information systems
Entertainment events: concerts, festivals, motor shows

Technical Specifications

Resolution	5mm
Pixel configuration	1R1G1B
Pixel density	40,000 pixels/m²
Module resolution	64×32
Module size	320×160mm
Viewing distance	5-300m
Brightness adjustment	Individual pixel control available
Color adjustment	Individual pixel control available
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Viewing angles	80° horizontal, 60° vertical
Signal processing	10 or 16bit
Driving mode	Constant current
Scanning mode	Static driving
Frame rate	60Hz
Refresh frequency	3000Hz
Control mode	Computer synchronous
Brightness adjustment range	255 steps with no grayscale loss
Out of control rate	<1/10000
Continuous operation	>72 hours
MTBF	>500 hours
Lifespan	>100,000 hours
Operating temperature	-20℃ to 50℃
Power consumption	Max: 800W/m², Avg: 280W/m²
Diagnostic features	LED self-check, communication monitoring, power check, temperature monitoring (customizable)
Remote monitoring	Remote supervision with fault alerts (customizable)
Compatible systems	Windows, 1999, XP
Power input	AC110V to 220V
Signal input	DVI
Warranty	2 years quality warranty, 10 years spare parts support

Our Services

24-hour response to product inquiries
OEM & ODM services for custom lighting solutions
Distributor support for unique designs
Confidentiality protection for all client information
Premium quality products at competitive prices with reliable after-sales service
