Place of Origin: | China(Mainland) |
Brand Name: | SCX |
Certification: | CE,ISO,FCC,UL |
Model Number: | SCX-P3.91 |
Minimum Order Quantity: | 5sqm |
---|---|
Price: | 859-1100USD/sqm |
Packaging Details: | Carton,wooden and flight cases. |
Delivery Time: | 12working days. |
Payment Terms: | T/T, Western Union, L/C, MoneyGram |
Supply Ability: | 5000sqm/month |
Function: | Play Video | Pixels: | 3.91mm |
---|---|---|---|
Pixel Density: | 65410dots/m2 | Brightness: | 6000nit |
Cabinet Size: | 500x500x65mm Die Casting Aluminum | Tube Chip Color: | Full Color |
Usage: | Outdoor | Application: | Competition/Advertising,Indoor Led Floor Screen |
Certificate: | CE,ISO,FCC,UL | ||
Highlight: | Ultra-Thin LED Poster Display,Indoor P3.91 LED Poster Display,Rental Installation LED Poster Display |
3 years warranty Ultra Slim Indoor P3.91 Portable Advertising LED Display Digital Poster with Foldable Stand
Quick Browse:
1. High definition and low grayscale.
2. Lightweight and easy to rent and move.
3. Strong power supply for long time use. .
4.NOVA control system, synchronized display with the control computer via DVI.
5. High resolution, can clearly present the image.
Product description:
Resolution/mm | 3.91 |
Pixel configuration | 1R1G1B |
Pixel density/pixels/m² | 65410dots/square meter |
Module size/mm | 500x500 |
View distance | 4-50m |
Single point brightness adjust | Can be added |
Single point color adjust | Can be added |
White balance brightness | 6000cd/square meter |
Color temperature | 6500K-9500K |
Horizontal view angle | 120(degrees) |
Vertical view angle | 60(degrees) |
Signal Process bit | 10 or 16bit |
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
Driving mode | Constant driving current |
Scanning mode | 1/8 |
Frame rate | 60Hz |
Refresh frequency | 1200Hz |
Control mode | Computer synchronous |
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
255 steps. No grey loss | |
Out of control point | <1/10000 |
Working hours | ≥72hours |
Mean Time Between Failure | >5000hours |
Life time | 100000hours |
Life-all-white(brightness halving) | 50000hours |
Environment temperature range | Operating temperature range: -20-45℃ |
Maximum power:/square meter | <1200W |
Average power:/square meter | <380W |
Self-check technology | LED spot self-check, communications check, power check, |
temperature monitor(need customization) | |
Remote monitoring | Remote supervision and control, record potential fault, |
send out warning signs to the operators.(need customization) | |
Software environment | WindowsNT,Windows1999,WindowsXP |
Luminous point width between centres | Deviation<3% |
Brightness uniformity | <10% |
Color uniformity(chromaticity coordinate) | ±0.003 |
Power supply request | AC85-264V(50Hz-60Hz) |
Contrast | (1000:1) |
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
Humidity(working) | working:10-95% |
Humidity(storing) | storing:10-95% |
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information.
Advantage
1) Displaying video motion pictures in high definition
With 4,096 steps of brightness control for each RED, GREEN and BLUE color,
our system is designed to provide pictures quality similar to that of analog formula, without losing image data.
2) Displaying multi(natural) colors
With 4,096 color grades of each RED, GREEN and BLUE color, our system is designed to
display multi-colors amounting 68.7 billion on the screen.
3) Windows based operating software
Our system is designed to be operated with MS Windows.
4) Providing delicate brightness adjustment
Our system is designed to provide delicate brightness adjustment(by each 0.025% steps)
5) Providing automatic brightness adjustment
Our system is designed to provide automatic brightness adjustment according to
the change of ambiance brightness.
6) Screen size adjustment
Our system is designed to adjust screen size not only to the standard ratio of 4 : 3 or 16 : 9
but also specific size as you want to use

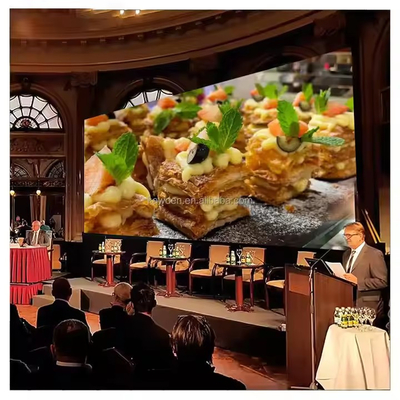

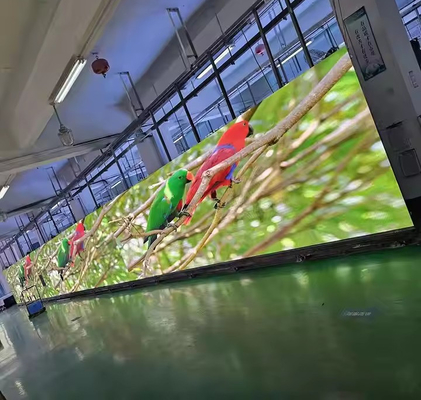

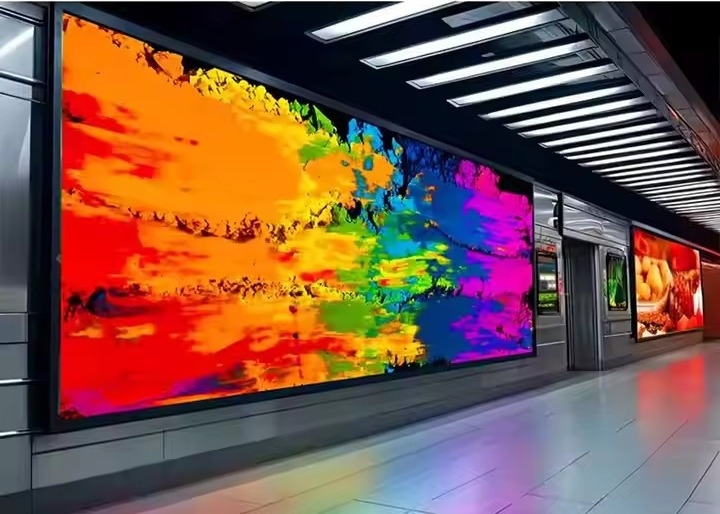

Application:
Package and Delivery:
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
