Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Model Number: | SCXK-P10 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Woodend and flight case,it's up to you. |
| Delivery Time: | 10 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqs/month |
| Pitch: | 10mm | Working Voltage: | DC5V |
|---|---|---|---|
| Control System: | LSN | LED Type: | SMD3535 |
| Module Size: | 320*160mm | Cabinet Size: | 640*640mm |
| Brightness: | ≥7500cd/sq | Pixel Density: | 10000dots/sq |
| Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... | ||
| Highlight: | Outdoor Stadium LED Display,Waterproof Stadium LED Display,Rental Stadium LED Display |
||

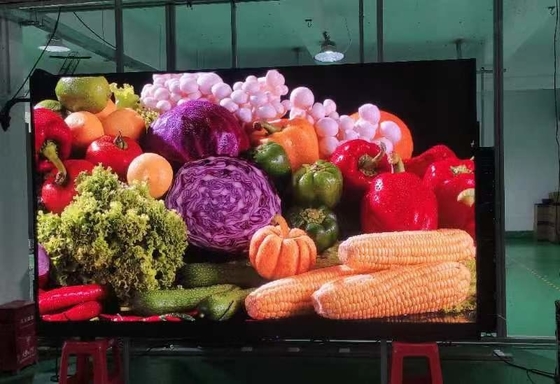

Outdoor P10 Statium LED Display Waterproof Large Screen for Rental 320*160mm Module
Why choose us?
1.Rich experience in LED field
2.Professional team support.
3.Fast delivery after payment.
4. High quality and low price.
5.Free technical support and good after-sales service.
6.If there is any problem, we will reply and solve it within 24 hours!
Specifications :
| outdoor SMD P10 | |||||
| Resolution/mm | 10 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 10000/square meter | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 256x128MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
♦ Production process
1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Welcome to visit our website and inquire more info!!!
