Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | 5sqms |
|---|---|
| Price: | 441-500 USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 sqms/month |
| Pixel Pitch: | 8MM | Brand Name: | SCXK Full Color LED Display |
|---|---|---|---|
| Module Size: | 256*128MM | Cabinet Size: | 512*512MM |
| Color: | Full Color | Warranty: | 3 Years |
| Life Time: | 100000Hours | Aging Time: | ≥72 Hours |
| Control System: | Nova,Linsn | Application Places: | Shopping Mall,Commercial Centure,Airports,Stations,Roads... |
| Highlight: | Large HD Outdoor Rental LED Display,P8 Outdoor Rental LED Display |
||

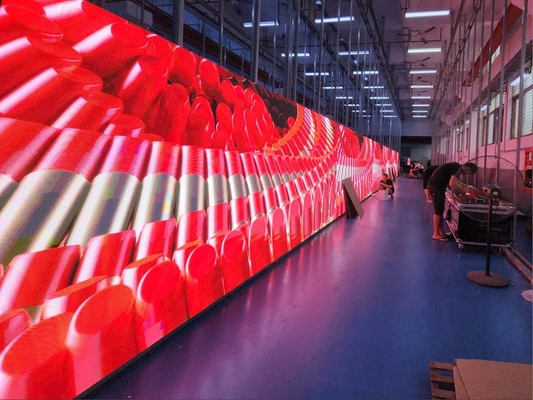

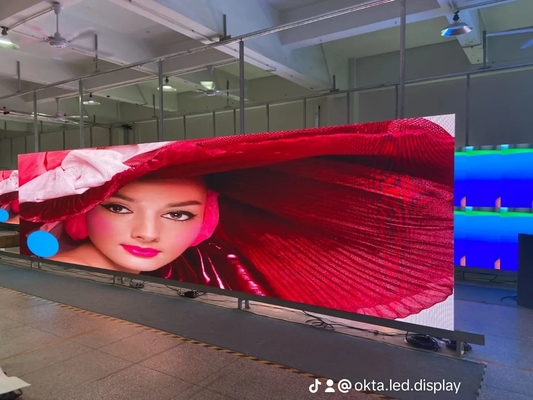

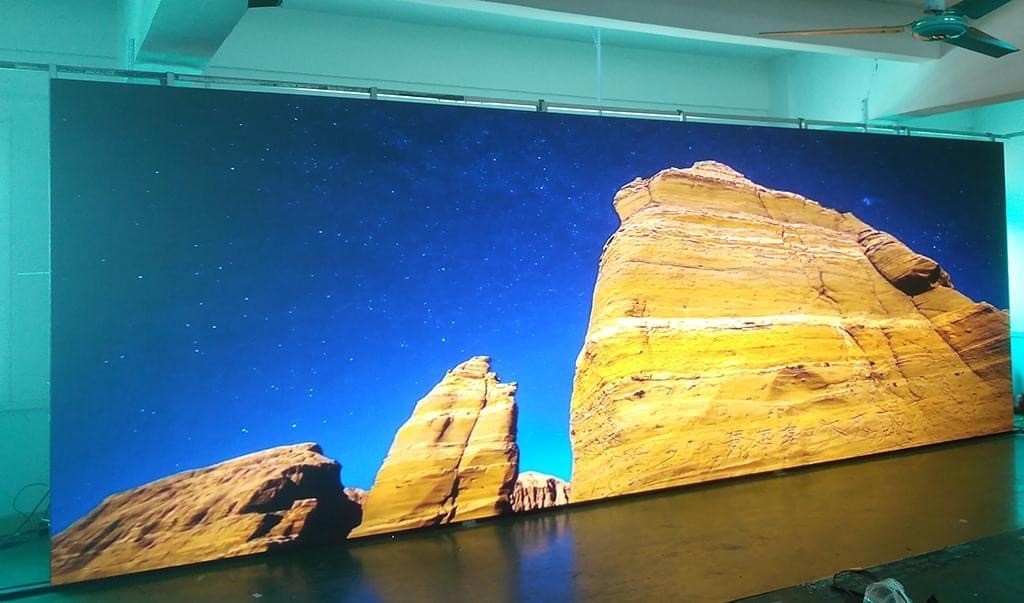

Light Weight Full Color Rental LED Display P8 Installed for Concert Outdoor
Outstanding Performance & Quality:
Supported by advanced technology and a team of professionals, Jekaz presents world-class standard LED displays with beautiful images, long-lasting stability, low power consumption, wide viewing angles, and high levels of protection ..... Fully automated production controls our high quality and best colors. Consistency leads to better performance.
-Energy saving, low power consumption, and long life up to 100,000 hours (about 10 years).
-Jackie Katz guarantees that the products we supply are new, complete and unused.
-Unique ventilated fan design for heat dissipation and water resistance.
From material - production - testing - packaging - delivery, Jekaz performs quality control on every process.
| Rental LED Display P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/square meter | ||||
| Module resolution | 32*16mm | ||||
| Module size/mm | 256*128mm | ||||
| View distance | 8-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >8000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color SCANNING | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP68 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Mainly applications:
1 Stage entertainment: music performance, concert, live band performance, party, etc.

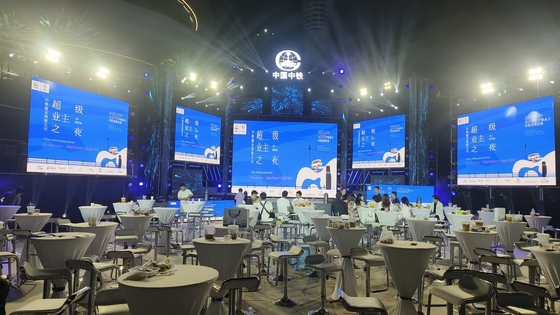

2 Events Conferences, product launches, exhibitions, fashion shows, weddings, company openings, etc.
3 Rental advertising: shopping malls, supermarkets, restaurants, etc.
Four main reasons why our customer choose us:
1. we are LED screen manufacturer for many years, quality is guaranteed
2. because we are factory, our price is 5%-10% lower than the same level of middlemen and dealers.
3. 280 professional sales and technical team to ensure perfect effect 4.
4. taking customers' needs as the root, making different solutions according to different needs of customers.
Welcome to Shenzhen ShiChuangXin Ke Electronic Co.,Ltd.
We are always be here to wait for your inquiry!!!
Contact Person: Lillian seori
Tel: +8619386814677
