Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mianland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P1.667 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7 working days after payment |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000sqs/month |
| Brand Name: | RGB LED Display | Brightness: | ≥1200cd/sq |
|---|---|---|---|
| Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL | LED Chip: | Epistar |
| Waterproof: | IP43 | Operation Power: | 220V 60HZ |
| Module Size: | 200*150mm | Cabinet Size: | 400*300mm |
| Control System: | LSN | Pixel Density: | 360000dots/sq |
| Resolution: | 120*90 | Warranty: | 3 Years |
| Highlight: | Waterproof Outdoor LED Screen Module,Full Color Outdoor LED Screen Module |
||
Full Color P1.667 SMD LED Module 1/30Scan Indoor LSN System Epistar Chip
Specifications :
| Indoor P1.667 LED Display | |||||
| Resolution/mm | 1.667 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 360000/square meter | ||||
| Module resolution | 120x90 | ||||
| Module size/mm | 200x150 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
1. Indoor Extrusion Aluminium , Quick Assemble
Extrusion Aluminium cabinet 400mm * 300mm, 0.1mm gapline between 2 cabinets High technology design, high flatness.
2. Correction Technology and Broadcasting Level
good uniformity, adopt dot correction technology, picture pure and vivid showing. Vertical/Horizontal 140, CT/Brightness adjustable, broadcasting level.

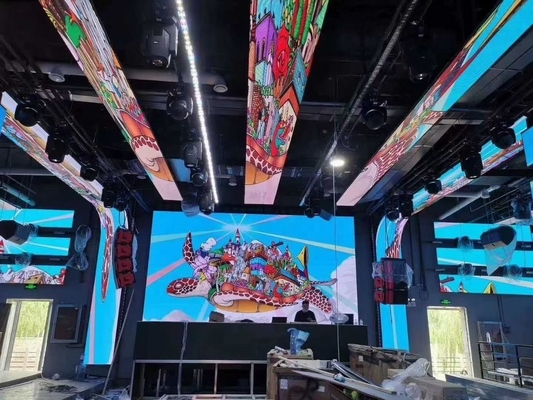

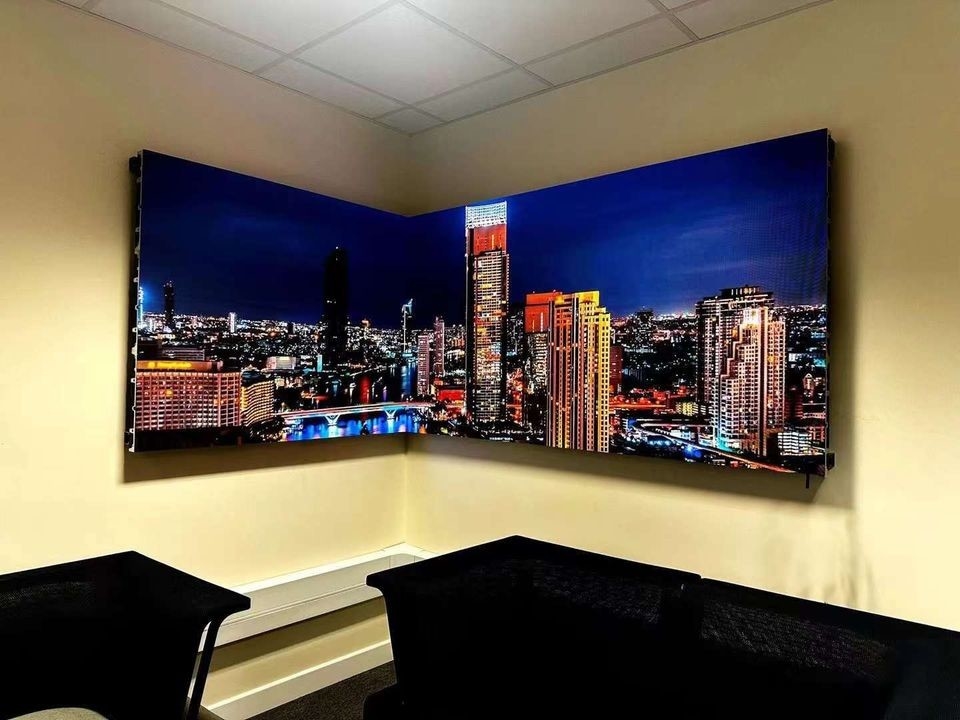

P1.667 Full Color Led Video Display Application places
Auditorium, conference room, banquet hall and exhibition presentations, traffic, studio, command and monitor system.
