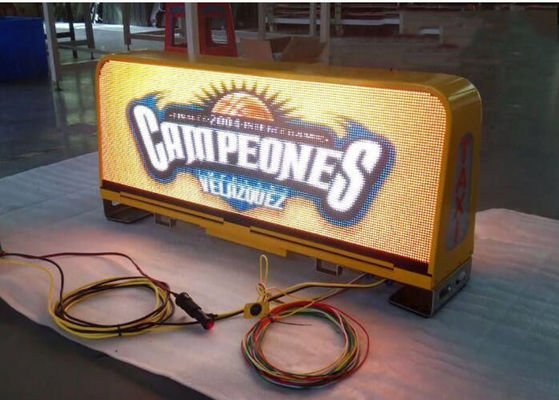

Waterproof Car LED Sign Display , Outdoor Full Color Taxi Roof Screen Double Side

Waterproof Car LED Sign Display , Outdoor Full Color Taxi Roof Screen Double Side

Brand Name:	SCXK
Model Number:	SMD P6
MOQ:	negotiation
Price:	negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO/CB

Product Name:

P6 HD Full Color LED Car Roof LED Sign Display Screen Wifi 4g 3g Remote Control

LED Chip:

Epistar

Pixel Density:

27778/sqm

Color:

Full Color

Function:

Video

Driver Mode:

1/8

Waterproof Level:

IP65

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Waterproof Car LED Sign Display

Outdoor Car LED Sign Display

Double Side Car LED Sign Display

Product Description

P6 HD Full Color LED Car roof LED Sign Display Screen wifi 4g 3g remote control

P6 Car LED Sign Display Product Description

1.Muiti-Connection Mode Group Control

(USB/WIFI USB/3G USB/4G USB&WIFI/3G/4G/GPS)

2.Easy Software,Intelligent Group Management

3.Passed FCC/CE/ROHS certifications

4.Production Capacity 500pcs for one month

♦ P6 Car LED Sign Display Technical Parameters

P6 Car Led Sign Display

Lamp size

3535

Resolution/mm

Pixel configuration

RED

Pixel density/pixels/m²

27778/m²

Module resolution

32x32

Module size/mm

192*192MM

View distance

≥6m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>5000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Warranty

5 years

Frame rate

60Hz

Refresh frequency

>2500Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1000W

Average power:/㎡

<300W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

Waterproof Car LED Sign Display , Outdoor Full Color Taxi Roof Screen Double Side 0

♦ Packaging and Shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.

Waterproof Car LED Sign Display , Outdoor Full Color Taxi Roof Screen Double Side 1

Our Service

1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English.
3) Customized design is available, OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 3 years warranty.

♦Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range.

Our team will be forever here to offer you full supports !!!
