Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution

Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution

  • Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution
  • Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution
  • Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution
  • Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution
Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution
Product Details:
Place of Origin: China(Mainland)
Brand Name: SCXK
Certification: CE,ISO,FCC,UL
Model Number: SCXK-P8
Payment & Shipping Terms:
Minimum Order Quantity: 5 sqms
Price: 400-500USD/sqm
Packaging Details: Wooden and flight case,it's all up to you.
Delivery Time: 12-15 working days after receiving your down payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000sqms/month
Contact Now
Detailed Product Description
Brand Name: SCXK Pixel Pitch: 8MM
Usage: Rental/Fixed Module Size: 256*128MM
Cabinet Size: 512*512MM Resolution: 32*16
Scan Mode: 1/4 Working Voltage: DC5V
Highlight:

Outdoor Waterproof Hanging LED Display

,

DC5V Hanging LED Display

,

IP65 Hanging LED Display

Rental Full Color Hanging LED Display P8 Outdoor IP65 for Installation

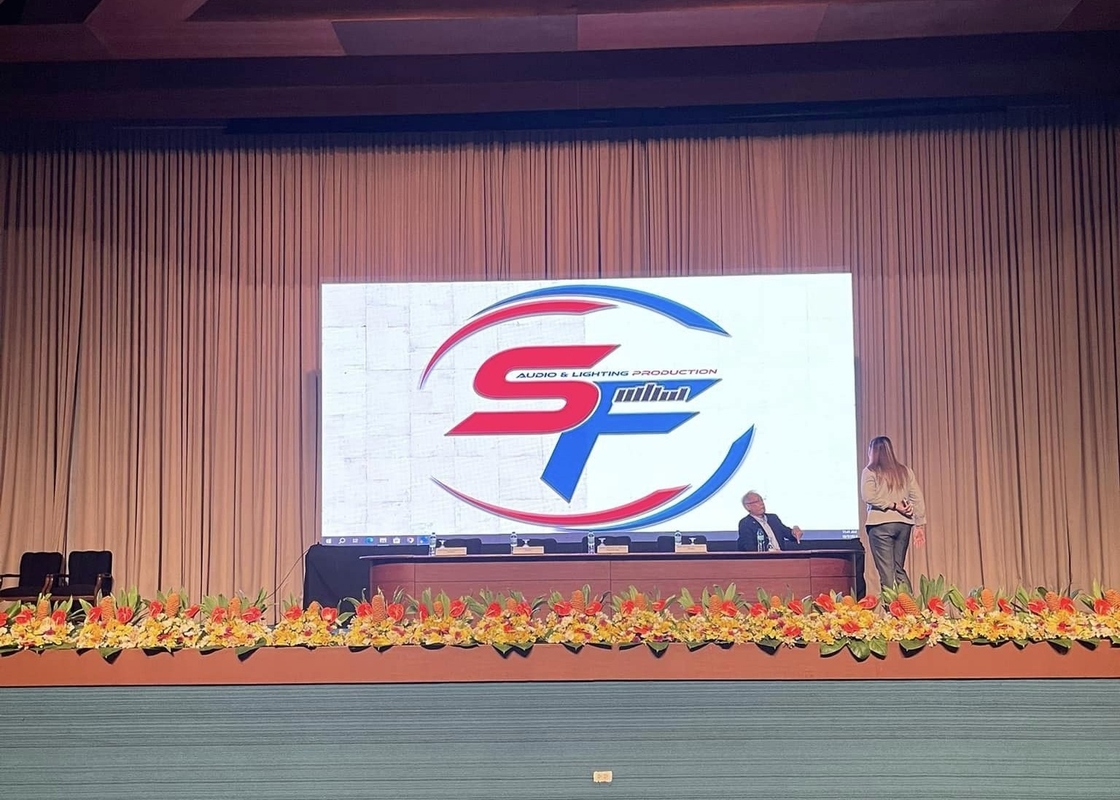

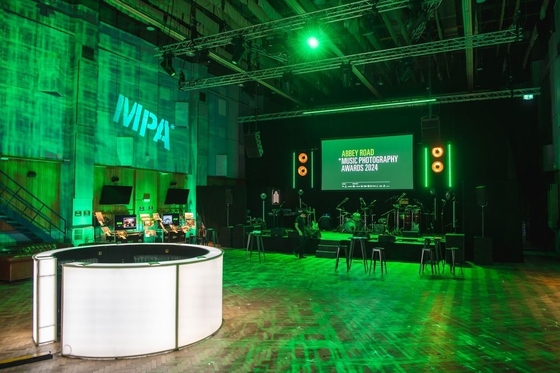

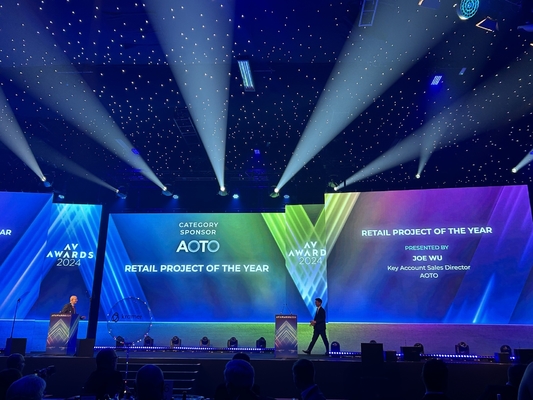

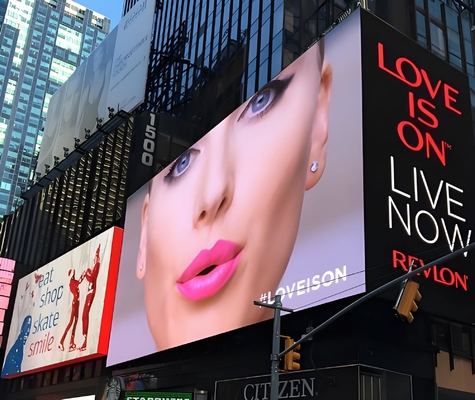

Application scope of rental LED screen: widely applied to outdoor advertisement, stage shows, advertising screens, concerts and so on.



Quality control capacity:



1. QC Team: 20persons.

2. Integrated QC system is implemented in every aspect of production for 4 times strictly check. Raw materials- during productive process-finished products-after aging before pack( one by one)

3, More than 200square meters aging room for each goods aging 24hours.



Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution 0

Rental Full Color Hanging LED Display P8 Outdoor Waterproof IP65 DC5V 32*16 Resolution 1

Hanging LED Display P8 Outdoor
Resolution/mm 8
Pixel configuration 1R1G1B
Pixel density/pixels/m² 15625/square meter
Module resolution 32x16mm
Module size/mm 256x128mm
View distance 8-150m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/4 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Waterproof IP65
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



What we will provide:

1. We will provide you with a batch of spare parts (details as above) at the time of shipment, including LEDs, power supplies, modules, cables ...... etc., enough for you to replace within two years.



2.We will provide a two-year warranty for the product. This means that the factory will provide labor and parts free of charge for two years, but the customer will have to pay the round-trip shipping cost of the damaged parts.



3.  For technical support, we will send installation drawings and user manuals after order confirmation, and provide free training for your technicians at our factory until they can operate it proficiently.





Advantage



1. High brightness: Due to the use of high-brightness LED lights, viewers can clearly see the image from a distance even in strong sunlight.

2. Long service life: Using high-quality LED lights as the core material, the screen body adopts patented PCB design, which fundamentally guarantees the long life of the product.
Fundamentally guarantees the long life of the product.

3. Stable performance: Special treatment is carried out for electromagnetic waves, and the screen body adopts distributed scanning and modular design, with stable performance.
Modular design makes the work more reliable and stable.

4. Delicate image: Non-linear correction technology, delicate and clear image, realistic video image.

5. Excellent flatness: The module frame components are precisely designed to control the deviation of adjacent modules within 0.1mm, with excellent flatness and no mosaic phenomenon.
