Outdoor Die-Casting Aluminum Advertising RGB LED Full Color Custom Display Flex Module P4 High Resolution

Outdoor Die-Casting Aluminum Advertising RGB LED Full Color Custom Display Flex Module P4 High Resolution

Brand Name: SCX
Model Number: SCX-P4
MOQ: 5 square metres
Price: 900-1000 USD/sqm
Payment Terms: T/T, Western Union
Supply Ability: 5000 sqms/month
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE,ISO,SAA,UL
Brand:
SCX
Module Size:
256*128mm
Color:
Full Color
Cabinet Size:
512*512mm
Resolution:
64*32
Scan Mode:
1/8
Application Places:
Shopping Mall,Stations,Airports,Commercial Centure...
Type Of Cabinet:
Die-cast Aluminum/Iron Cabinet
Packaging Details:
Wooden and flight cases,it's up to you.
Highlight:

Outdoor RGB LED Display

,

P4 High Resolution RGB LED Display

,

Custom Display Flex Module

Product Description


Outdoor RGB LED Display flexible module P4 for Advertising High Resolution

Short introduction about our company
1) Manufacturer with over 11 years of experience in electronics and PCB assembly.
2)With more than 400 employees.
3) 6 Panasonic high-speed SMT machines, 6 Yamaha SMT machines, 2 AOI test equipment, etc.
4)10 production lines.
5)6S management.
6) ISO9001:2008 and ISO14001:2004 certified and CE/RoHS/FCC certified.


outdoor P4 LED screen Display
Resolution/mm 4
Pixel configuration 1R1G1B
Pixel density/pixels/m² 62500 pixels/sqm
Module resolution 64*32mm
Module size/mm 256*128mm
View distance 4-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Scanning mode 1/8 scanning
Fresh rate 60Hz
Refresh frequency >3000Hz
Control mode

Asynchronous,3G,4G,Wifi

Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Aging hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Main features of the products:

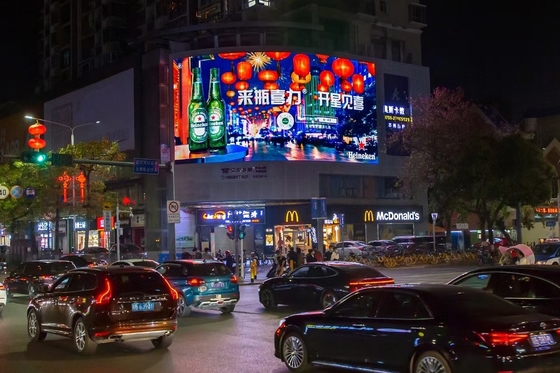

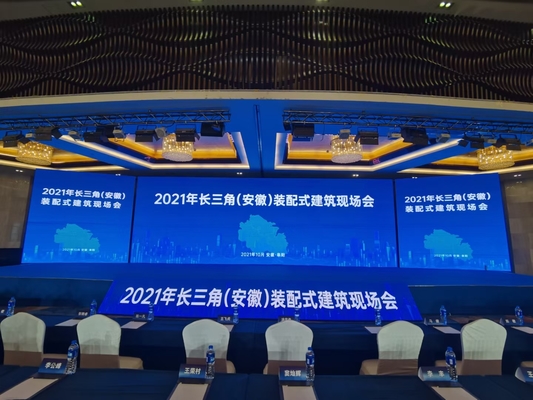

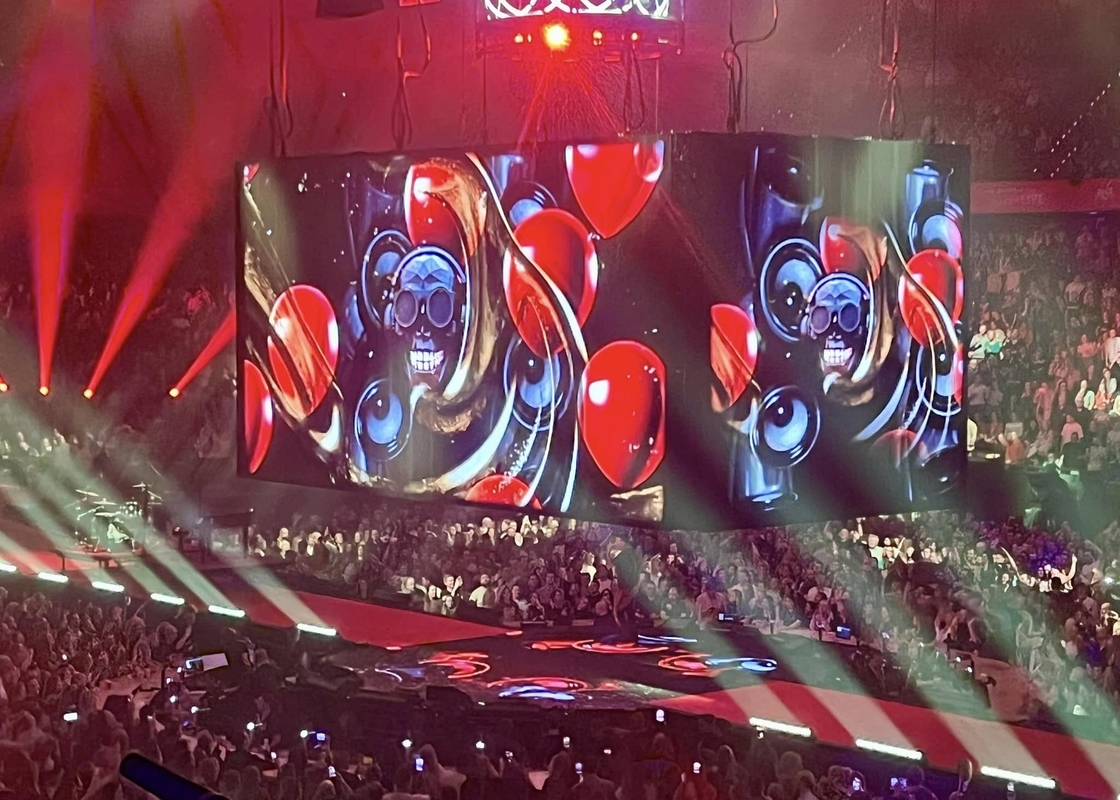

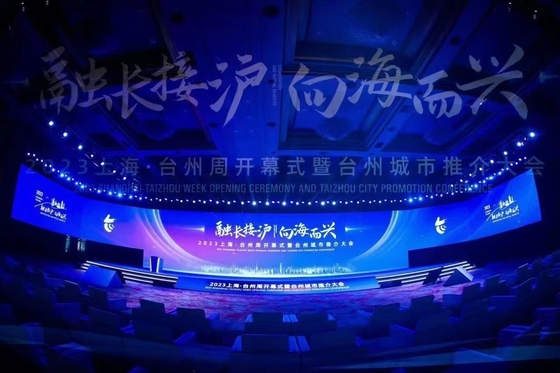

1)Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .
2)High brightness:7500cd/m2 Automatic or manual adjustment of the brightness of the display.
3)Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4)Clear vivid image quality: Throughout the show, the picture clear, bright color.
5)Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.

Outdoor Die-Casting Aluminum Advertising RGB LED Full Color Custom Display Flex Module P4 High Resolution 0
Outdoor Die-Casting Aluminum Advertising RGB LED Full Color Custom Display Flex Module P4 High Resolution 1Outdoor Die-Casting Aluminum Advertising RGB LED Full Color Custom Display Flex Module P4 High Resolution 2

__________________________________FAQ_________________________________________

1. How long could i receive the inquiry reply ?
A: You will get a reply within 24 hours.

2.How long is the warranty?
A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty.

3.How is the after sales service ?
A: We have a professional team which is in all around the world , also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems

4.How long will it take to deliver goods ?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.
