Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO.UL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | 800-1000USD/sqm |
| Packaging Details: | Wooden and flight case. |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Pixel Pitch: | 4mm | Color: | Full Color |
|---|---|---|---|
| Module Size: | 256*128mm | Cabinet Size: | 512*512mm |
| Brightness: | 5500cd/sqm | Resolution: | 64*32 |
| Highlight: | Outdoor Full Color LED Display Screen |
||

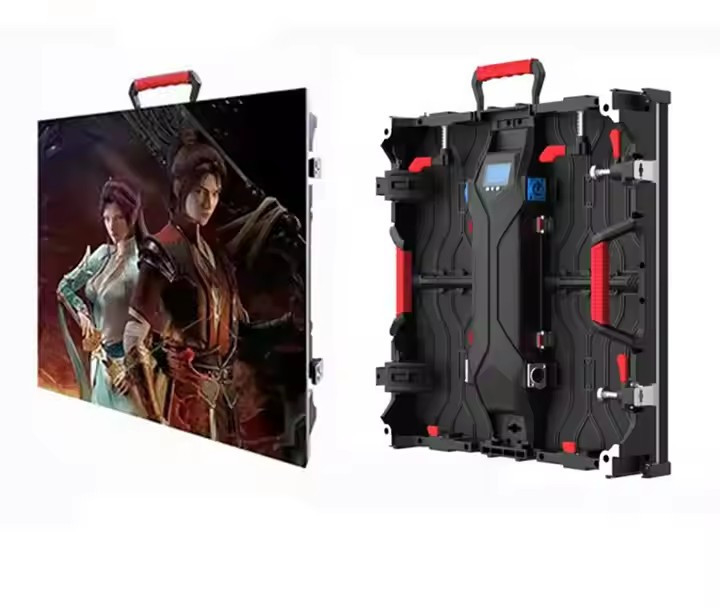

Good Price Outdoor Full Color LED Display P4 256*128mm 1920HZ HD
Control system:Linsn and Nova;
LED lamp:Epistar,Kinglight,Nationstar;
Power supply:Chuanglian,Meanwell,Souren,E-energy
Video processor:LVP605,605S,SCX818;(you also can provide the brand you want)
Refresh rate 3840,1920HZ
Specifications :
| outdoor P4 LED screen Display | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/square meter | ||||
| Module resolution | 64*32mm | ||||

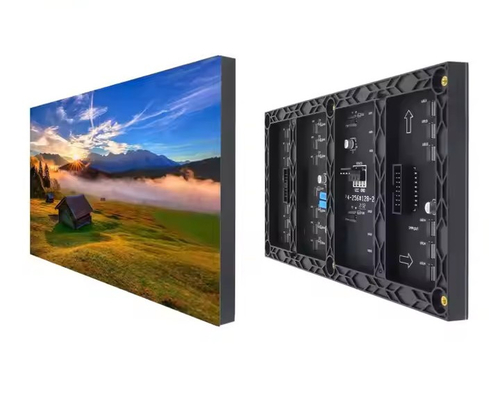

| Module size/mm | 256*128mm | ||||
| View distance | 4-50m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 5500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color SCANNING | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | 1920Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Payment:
1. We can accept T/T payment, 30% deposit is used to secure the order and we will ship the goods,
After 70% down payment, we will ship the goods.
2. Delivery time (lead time): 12-15 working days after receiving the deposit.
3. Warranty: Warranty period is 2 years after delivery for free repair.
4. 24 hours online service, you can check any information!
Our company is located in Shenzhen, China and has been in the RGB LED display business since 2005.
We have our own factory with professional equipment and strict quality requirements,
We respect our customers and protect their data.
You choose to trust us, we will double back!!!!
If you have any questions ,just type down and send to me!
Contact Person: Lillian seori
Tel: +8619386814677
