Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainalnd) |
| Brand Name: | SCX |
| Certification: | CE,ISO,RoHs,FCC |
| Model Number: | SCX-P8 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | 399-599USD/sqm |
| Packaging Details: | Carton,wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Pixels: | 8mm | Usage: | Outdoor |
|---|---|---|---|
| Warranty: | 3 Years | Module Size: | 256*128 Mm |
| Product Name: | Led Video Display Panel | Brightness: | 6000nits |
| Led Chip: | Epistar | Life Span: | 100000hours |
| Highlight: | HD Outdoor Full Color LED Display,Outdoor Full Color LED Display,IP65 Outdoor Full Color LED Display |
||

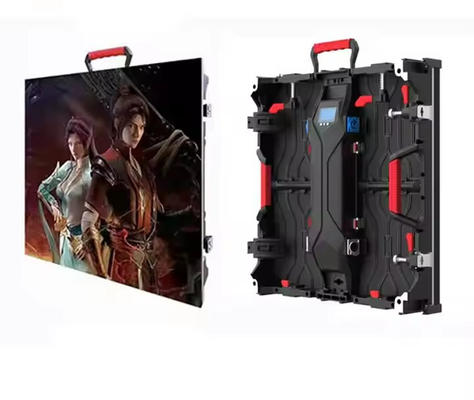

Pixel Panels Outdoor Full Color LED Display P8 HD High Quality IP65 Fixed Installation
Outdoor LED Screen Series:
1.Automatic brightness control, super processing ability, strong color restoration.
2. High brightness, even in direct, full-on sunlight to ensure you attract more audience to
get short ROI of your full color outdoor led display screen's investment.
3.Support various interfaces and signal sources.
4.Advanced digital control technology, excellent effect.
5. Antiseptic and durable, can be used outdoors in all weather.
Specifications:
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625dots/quare meter |
| Module resolution | 32x16 |
| Module size/mm | 256x128 |
| View distance | 8-50m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 6000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 |
| Frame rate | 60Hz |
| Refresh frequency | 1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <800W |
| Average power:/square meter | <280W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
