Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P12 |
| Minimum Order Quantity: | 3 square meters |
|---|---|
| Price: | USD 550-750 square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 12 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/4 Scanning | Module Size: | 192x192mm |
| Cabinet Size: | 960x768mm | Certificates: | CE RoHS FCC CCC UL |
| Material: | Aluminum | Warranty: | 3-5 Years |
| Application: | Stadium,airport,shopping Mall,street Advertising | ||
| Highlight: | HD LED Video Wall,Supermarket Advertising LED Video Wall,Waterproof LED Video Wall |
||

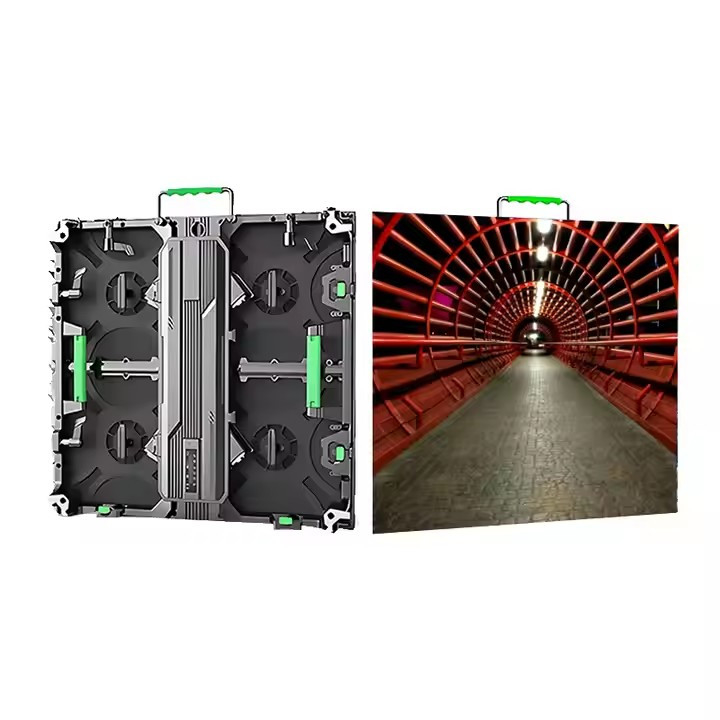

P12 IP65 outdoor LED Video Wall for supermarket advertising , DIP LED Display
Wide application field :

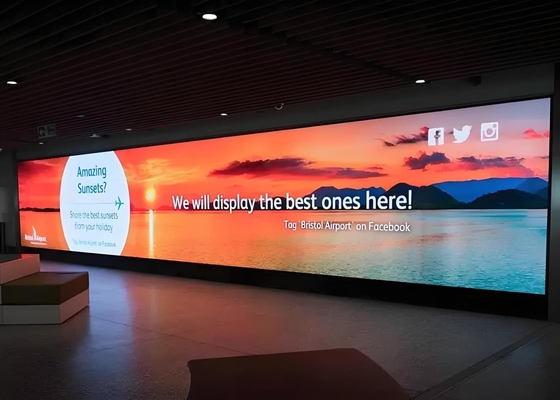

1) Widely used in promotional activities, outdoor advertising media, finance, securities, stations, airports ,
Supermarkets, entertainment places, etc.
2) Full Color LED Display: Red, green and blue colors are made into a point in equal amount or compactly, and distributed evenly on the panel, so that the whole display shows red, green and blue colors.
2) Full color LED display: Red, green and blue colors are made into a point in equal amount or compactly, and distributed evenly on the panel, so that the whole display shows red, green and blue colors.

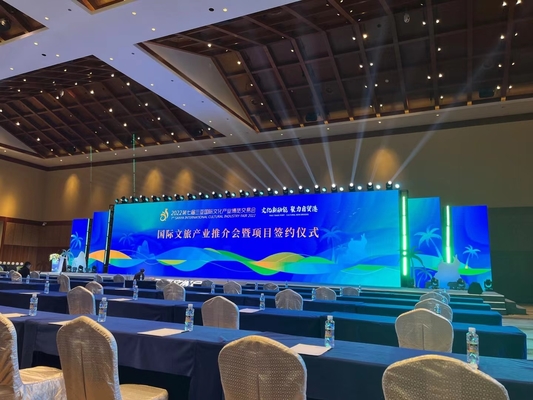

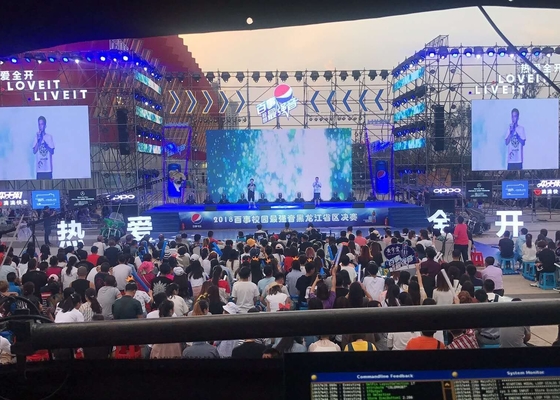

3) Usually used in sports, advertising, banks, stock exchanges, stations, ports, markets,
telecommunications, departments, schools, monitors, restaurants, entertainment venues, etc.
| outdoor DIP P12 | |||||
| Resolution/mm | 12 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 6944/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 192x192MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Main Export Markets:
a)Asia
b)Australasia
c)Central/South America
d)Eastern Europe
e)Mid East/Africa
f)North America
g)Western Europe
____________________________________FAQ_________________________________________
1.Except this model, are there any other models?
---yes, For indoor led screen we have p1.25,p1.56,p1.67,p1.87,p2, p2.5 p3 ,p3.91, p4 ,p4.81, p5 ,p6,p8,p10
For outdoor led screen we have p3,p3.91,p4,p4.81,p5, p5.95,p6,p6.67,p8, p10
2.Are you factory? and your warranty?
yes we are 10 years factory, 2 years warranty and lifetime maintenance
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4.What's your delivery time?
Wthin 15-25 days after receiving deposit
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea
