Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P4.81 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqs/month |
| Application: | Outdoor | Pitch: | 4.81mm |
|---|---|---|---|
| Module Size: | 250*250mm | Scan Mode: | 1/13 |
| Control Mode: | Synchronous By DVI | Cabinet Material: | Aluminum |
| Resolution: | 52*52 | Warranty: | 5 Years |
| Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P8,P10... | Certificate: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Highlight: | Commercial Clear LED Advertising Wall Curtain,Full Color LED Advertising Wall Curtain,P4.81 LED Advertising Wall Curtain |
||
LED SMD 3 in 1 Wall Curtain For Advertising , P4.81 Commercial Clear Full Color Resolution 52*52 Epistar 1/13 Scan
Quick Browse:
1. High definition, low grayscale.
2. Lightweight, easy to move and rent.
3. Strong power supply, can be used for a long time.
4. LSN control system, synchronized display with control PC via DVI.
5. High resolution, clear image display.
Product description:
| outdoor P4.81 LED Display | |||||
| Resolution/mm | 4.81 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/square meter | ||||
| Module resolution | 52x52mm | ||||
| Module size/mm | 250*250mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Products Advantages:
1) Price advantage: We have the most competitive price in the market, while having the same or even better quality.
2) Quality advantage: From materials to finished products, from design to production, we control all steps
3) Service advantage: Better service under the same circumstances, better cooperation under the same service
Products function introduction:
1) High brightness, adjustable, can meet customer requirements according to the environment.
2) Optimal uniformity, well solves the mosaic problem, with excellent light consistency
3) Clear, delicate and real display effect for images and text LED curtain screen
4) Large viewing angle, up to 110 degrees horizontally and 60 degrees vertically
5) Each LED light can be repaired, so the maintenance cost is low and easy to repair.
6) Usually suitable for sports, advertising, banks, stock exchanges, stations, ports, indoor P6 display screens, etc.

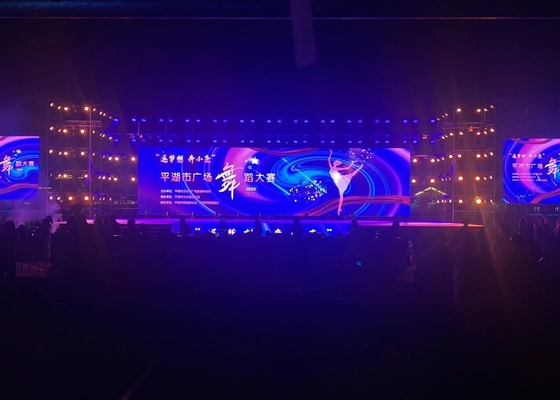

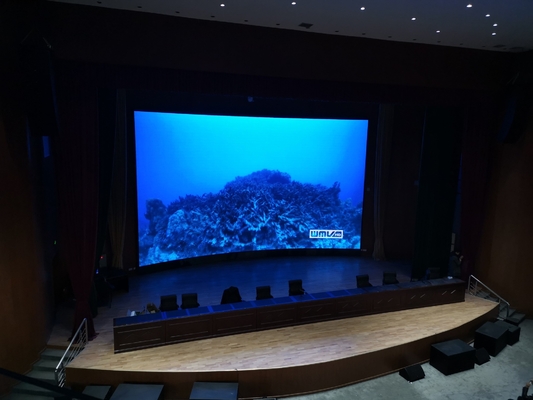

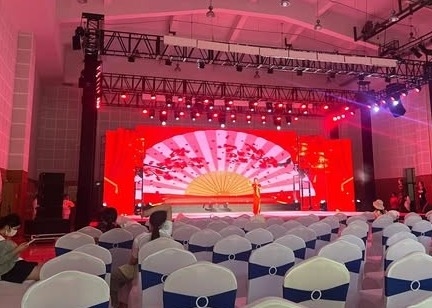

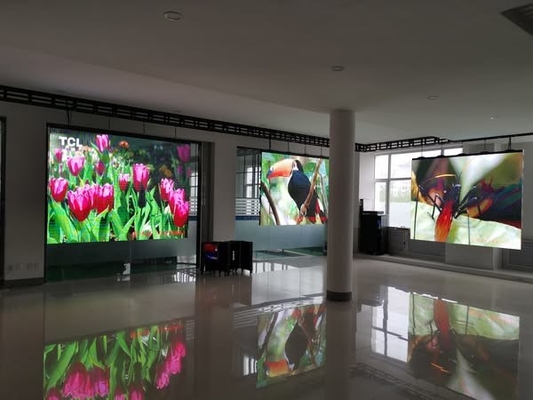

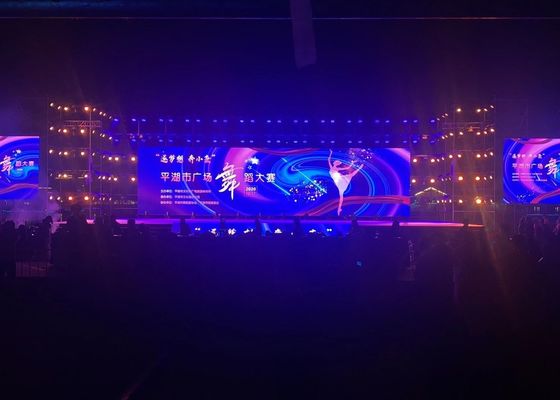

Our cases:
FAQ:
Welcome to inquire us!!!
Contact Person: Lillian seori
Tel: +8619386814677
