Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P10 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | 300-400USD/sqm |
| Packaging Details: | Wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Application Place: | Outdoor | Pixel Pitch: | 10mm |
|---|---|---|---|
| Waterproof: | IP65 | Cabinet Material: | Iron |
| Cabinet Size: | 960*960mm | Brightness: | 5500cd/sqm |
| Pixel Density: | 10000dots/sqm | Warranty: | 2 Years |
| Highlight: | Wind Resistant Full Color LED Screen,Waterproof Full Color LED Screen,High Definition Full Color LED Screen |
||
New design city large advertising three-sided led billboard wind resistance steel structure
Our advantages:
1. Imported high-end light-emitting materials, high-quality special IC chip, noiseless high-power power supply;
2. Static/dynamic constant-current driver;
3. High brightness, high grayscale, high contrast, high-density, large viewing angle, high stability;
4. High color uniformity, high color saturation, fine and clear image edges; smooth video effect;
Specifications :
| Outdoor P10 LED Display Screen | |||||
| Resolution/mm | 10 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 10000/square meter | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 320x160 | ||||
| View distance | 10-100m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 5500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

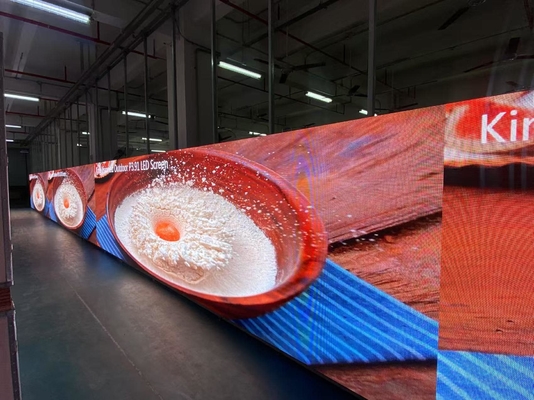

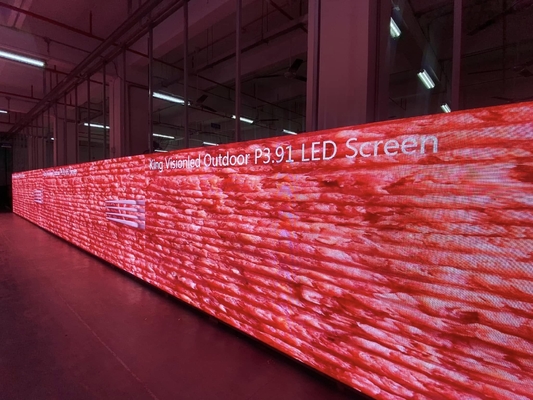

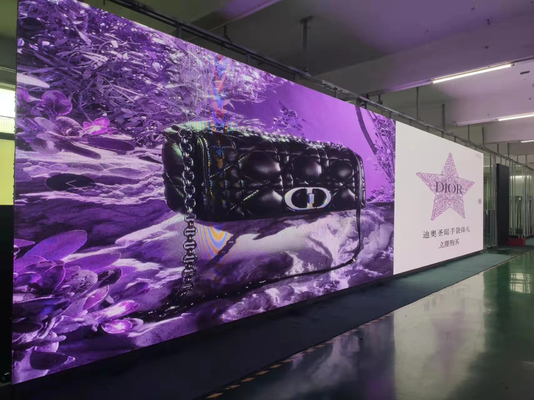

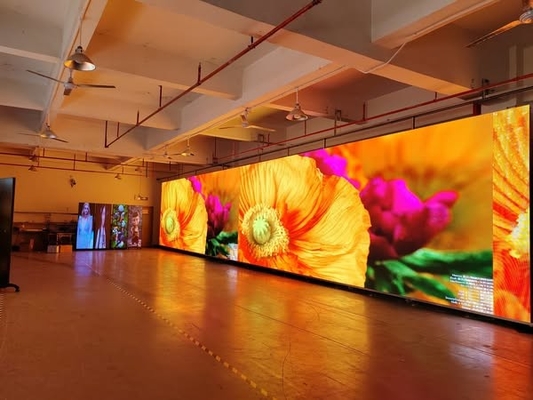

Our cases:
Short descriptions:
1. High protection, dustproof, waterproof, corrosion-resistant P10 outdoor LED display;
2. Ultra-high resolution, bright colors;
3. Energy saving and environmental protection, cost-effective;
4.120 degrees ultra-wide viewing angle, large viewing angle, viewing position at will;
5. Ultra-high uniformity, relieve eye fatigue;
6. Seamless splicing;
Applications places:
1. Educational publicity: interactive systems for campuses, scenic spots, training institutions, etc.
2. Public places: information and real scenes of airports, railways, subways, highways, libraries, museums, shopping malls, etc.
3. Commercial displays: TV studios, large-scale performances and commercial exhibitions, hotel lobbies, enterprises and institutions, etc.
4. Government departments: publicity for the people, service guides, government affairs disclosure, etc.
Our promises:
1. Diversified products:
outdoor/indoor LED display screen has many models, customized box can be provided to meet various requirements and win more profits for customers.
2. Experienced and professional:
10 years LED display manufacturing experience, professional craftsmanship and design.
3. Best raw material:
Taiwan Epistar LED chips, high quality, high brightness, long life.
4. Competitive price:
100% ex-factory price, competitive and reasonable price.
5. Strict Quality Control:
100% testing before packing, to ensure the quality before leaving the factory.
6. Quality Assurance:
All of our LED displays have a service life of more than 100,000 hours.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
