Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 5 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Module Size: | 320x160mm |

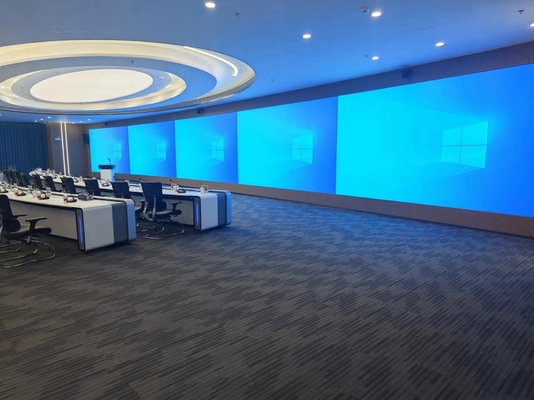

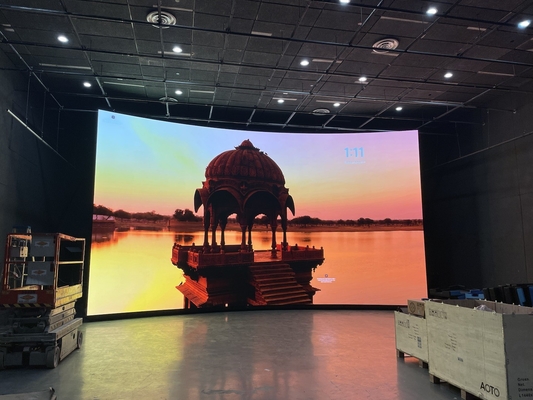

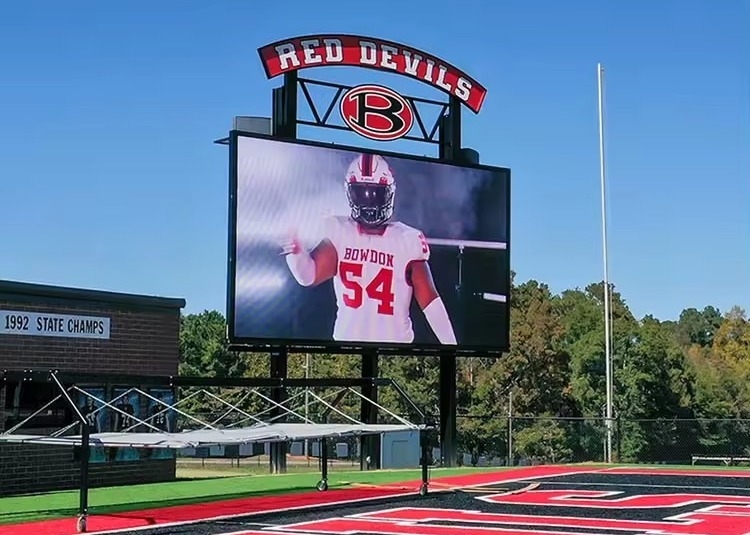

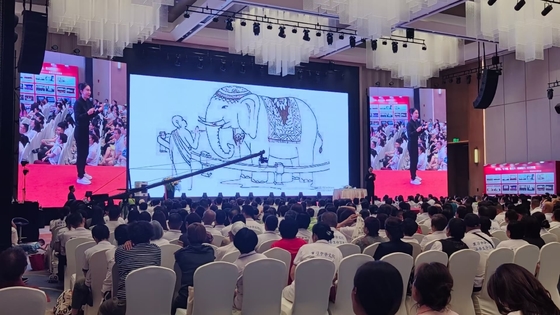

| Certificates: | CE RoHS FCC CCC UL | Application: | Stadium,airport,shopping Mall,street Advertising |
| Material: | Aluminum | Warranty: | 3-5 Years |
| Cabinet Size: | 640x640mm/800x800mm | ||
| Highlight: | Customizable LED Display Module,LED Video Wall LED Display Module |
||
SMD 3 In1 P5 Led Display Module 320mm×160mm With 140 Wide View Angle
Product Description
1. The indoor LED display screen adopts SMD three-in-one technology.
2. Wide viewing angle: 140 degrees horizontally and 140 degrees vertically.
3. Special design and advanced SMT patch technology to improve heat dissipation effect.
4. Equipped with a high refresh rate controller to ensure no scanning lines when taking pictures.
5. Light and thin design.
6. Equipped with quick locks and connectors, easy to assemble and connect.
7. High color uniformity and clear images, bringing you realistic audio-visual effects.
8. Models: P3, P3.75, P4, P5, P6, P8, etc.
1. High quality:
Our most basic guarantee: aging time is more than 24 hours. Failure point rate is less than 0.0001. Mean time between failures (MTBF) is more than 10000 hours. We guarantee high brightness and long life.
2. Perfect display effect:
High brightness, clear LED display effect, coupled with easy-to-use control system, makes you easily become an enviable LED display expert.
3. Attractive factory price:
We are a professional manufacturer with our own factory and production line. Without middlemen and trading companies, our prices are more competitive and quality is more reliable.
1. Automated production. More than 90% of the production process is automated.2. Quality control. We can control the quality of the raw materials ourselves, for example, we can do the LED encapsulation ourselves.3. The most competitive price. Because we can produce most of the raw materials ourselves. So our cost is also lower.4. The most professional technical support. We have been in this industry for nearly ten years, and we have a lot of experience to solve various problems.5. The best customer service. We can provide you with the best pre-sales and after-sales customer service. You can contact us 24 hours a day, 7 days a week.6. Two-year warranty. We are confident in the quality of our products, so we can provide customers with a two-year warranty without any problems.
Specifications :
| outdoor SMD P5 | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/m² | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
