Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | customized |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden and flight case ,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqs/month |
| Brand Name: | LED Billboards | Material Cabinet: | Aluminum |
|---|---|---|---|
| Pitch: | 4mm | Module Size: | 256*128mm |
| Control System: | LSN | Pixel Density: | 62500dots/sq |
| Working Voltage: | DC5V | Brightness: | ≥7500cd/sq |
| Warranty: | 3-5years | Outdoor Potions: | P3.91,P4,P4.81,P5,P6,P6.67,P8,P10,P12,P16,P20,P25,P31.25... |
| Highlight: | DC5V LED Billboard,Outdoor Stadium LED Billboard,HD LED Billboard |
||
SMD Full Color LED Billboards P4 Outdoor Applicated In Statium Commercial Centure
Info about company:
Shenzhen Cisco Electronics Co., Ltd. has a standard new factory with about 100 employees. We have excellent R&D department and after-sales service staff, as well as independent design capability. Our products mainly include led indoor full-color display, led outdoor full-color display, led indoor full-color display, led wireless vehicle mounted USD screen, poster screen, transparent screen, etc., which can be used in shopping malls, banks, bus stations, railway stations, city centers, airports, schools, factories, buses, cabs and so on. We sell our products all over the world by using many methods and good after-sales service. Whenever and wherever we are, we always adhere to the principle of “Professionalism creates quality, quality creates market, market creates price” to provide perfect products and services for our customers.
Specifications :
| Outdoor SMD P4 | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 256x128MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

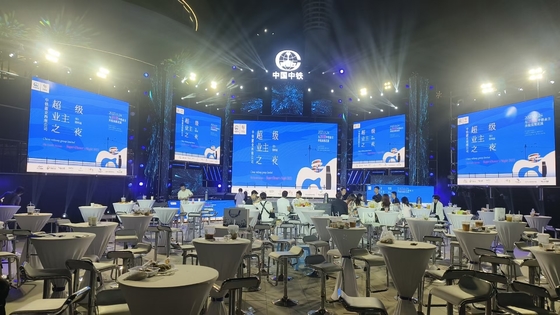

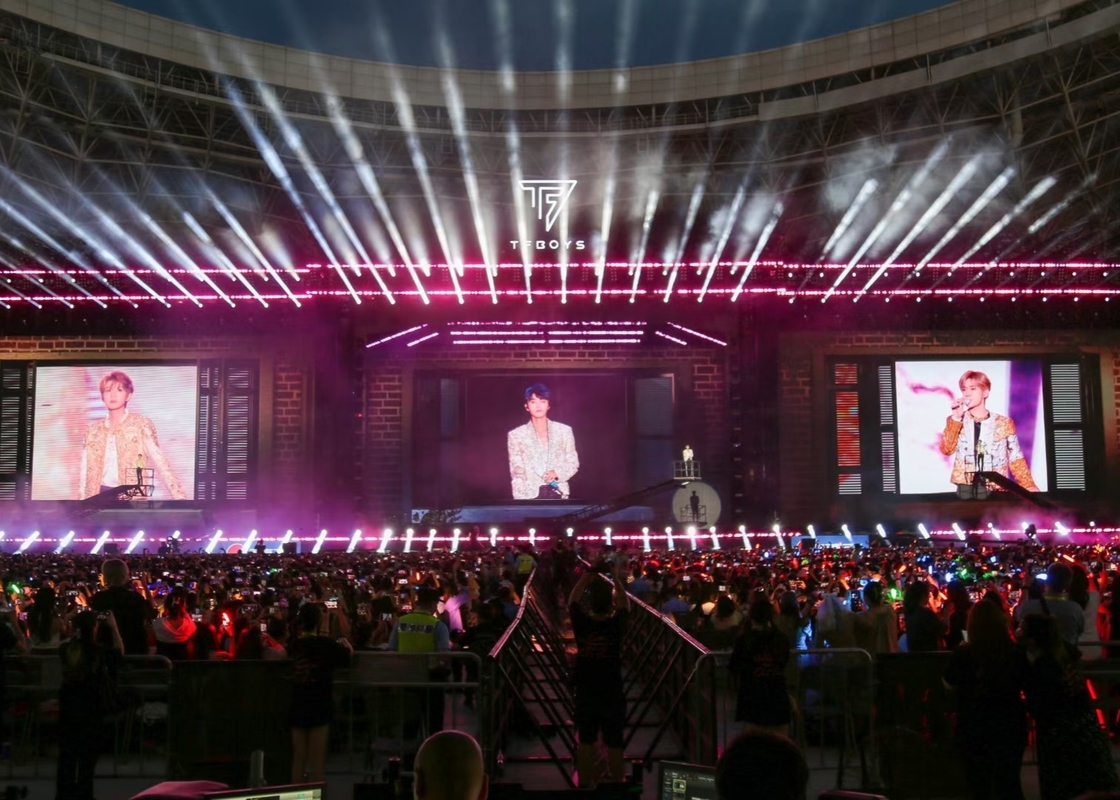

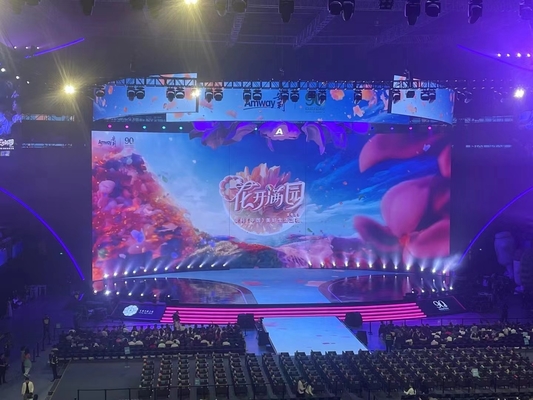

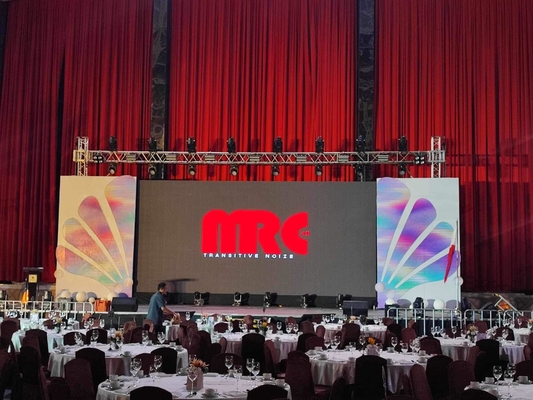

Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
FAQ
A: Yes, we welcome sample order to test. Mixed samples are acceptable.
A:Sample order needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
A: Low MOQ, 1sqm for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 8-20 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 3 years warranty to our products.
Welcome to visit our website and inquire us!!!
Contact Person: Lillian seori
Tel: +8619386814677
