Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden and flight cases,it's all up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqms/month |
| Color: | Full Color | Type Cabinet: | Iron/Die-cast Aluminum Cabinet |
|---|---|---|---|
| Application Places: | Indoor/Outdoor | Usage: | Video |
| Pixel Pitch: | 5MM | Module Size: | 320*160MM |
| Brightness: | ≥6500cd/sqm | Resolution: | 64*32 |
| Pixel Density: | 40000dots/sqm | Control System: | Nova,Linsn |
| Highlight: | Outdoor Waterproof LED Advertising Screen,Full Color LED Advertising Screen,Rental Screen LED Advertising Screen |
||

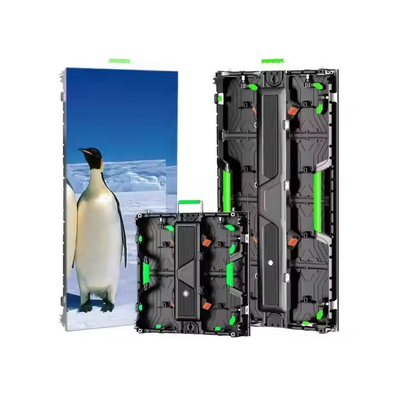

Widely used for Advertising LED Screen P5 Outdoor Full Color Display
Info about our company:
We are a manufacture company,which has our own factory to produce the products.And the kinds of the goods have indoor and outdoor,we also sell the module,and the screen contain the receiving and sending cards,but details we have to discuss.All in all,trust is mutual,if you choose to trust us,we'll give you the good result.Thank you for the time and welcome to our website and inquiry for more info!
Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Specifications of product:
| P5 Outdoor Full Color Display | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64x32mm | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 5-150m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >6500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 120(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP65 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
The shipping details and packages:
Usally if you need the Rental display,we provide you the flight case;if the fixed screen,then the wooden case.And the way of shipping for your reference are air and sea,also,if you need other ways,we also can satisfied your requirements.
Bying remarks:
1.Price terms:EXW
2.Payment terms: TT 30% in advance,balance 70% paied before the delivery.
3.Delivery time(lead time): 12-15 working days after we receive down payment.
4.Warranty: Guaranty period for free maintenance within 2 years after delivery.
5.Free training: You can send engineers to our factory for training who have knowledge of electronics. We will provide free training about how to run, maintain and repair LED display.
6.Technical Support: We can send our engineer to your city for guidance,but you must help us to get visa and pay related cost such as round-trip fly ticket,hotel,food other cost when our engineer arrive at your city.You also pay our engineer USD100.00/day/person.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
