Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | ISO,FCC,CE,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqms/month |
| Picth: | 5MM | Color: | Full Color |
|---|---|---|---|
| Module Size: | 320*160MM | Cabinet Size: | 640*640MM |
| Waterproof: | IP34 | Application Place: | Indoor |
| Resolution: | 64*32 | Brightness: | 1500cd/sqm |
| Highlight: | Full-Color Advertising LED Screen,Commercial Center LED Screen,Indoor Mosaic-Free LED Screen |
||

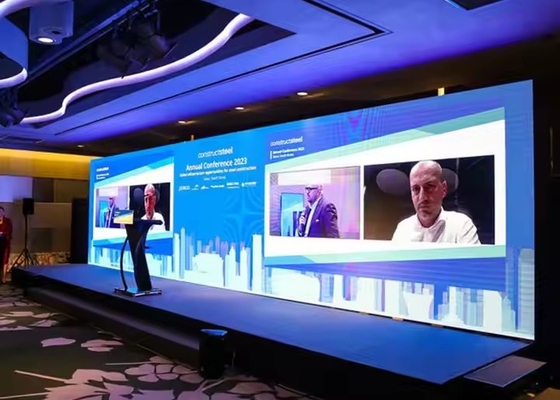

Indoor Full Color Advertising LED Screens P5 Installed in Commercial Centure
Product description:
1) Reliable quality, advanced and mature technology, in line with industry standards and technological development trends.
2) Good heat dissipation, good waterproof performance, and stable performance.
3) The system has audio and video interfaces, which can provide vivid, complete, and high-quality LED display screens for TV broadcast signals.
4) The screen image has high resolution, high definition, clear pictures, and no flicker.
5) Supports video and RF input, and the special structure can be freely assembled.
Specification :
| Indoor P5 LED screen Display | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64*32mm | ||||
| Module size/mm | 320*160mm | ||||
| View distance | 5-100m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 1500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 120(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color SCANNING | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP34 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) |
storing:10-95% |
||||
Our service:
1) Your inquiry related to our products or price will be replied in 24hrs
2) OEM&ODM,any your customized lightings we can help you to design and put into product
3) Distributoership are offered for your unique design and some our current models
4) Protection of your sales area,ideas of design and all your private information
5) Top Quality+Reasonable Price+Responsible After Service=Successful & Win
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
