LED Billboard P4 Outdoor Waterproof 5000cd/M2 Brightness High Resolution

Brand Name:	SCXK
Model Number:	SCXK-P4
MOQ:	negotiation
Price:	negotiation
Payment Terms:	T/T, Western Union, L/C, D/A, , D/A, MoneyGram
Supply Ability:	5000M/²/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE,ISO,FCC,UL

Product Brand:

SCXK-RGB LED Display

Popuse:

Renatl/Fixed

Application Place:

Indoor/Outdoor

Pixel Pitch:

4MM

Module Size:

256*128MM

Cabinet Size:

512*512MM

Resolution:

64*32

Scan Mode:

1/8

Type Of Cabinet:

Die-cast Aluminum/Iron

Brightness:

≥5000cd/m²

Packaging Details:

Wooden and flight cases,it's all up to you.

Highlight:

5000cd/M2 LED Billboard

Outdoor Waterproof LED Billboard

High Resolution LED Billboard

Product Description

RGB LED Billboards P4 Outdoor High Brightness High Resolution HD IP65 for Advertising

Details:

This product has two forms: fixed (iron cabinet) and rental (cast aluminum cabinet).

If you don't move often, you can choose the fixed type; but if you need to change the place of use frequently, the rental type is better. Therefore, the weight difference between the two products is large.

Payment method:

30% prepayment, 70% before shipment.

Delivery time: 10-12 working days after receiving the deposit.

Warranty: Free repair warranty period is 2 years.

Specifications of product:

Outdoor P4 LED screen Display
Resolution/mm	4
Pixel configuration	1R1G1B
Pixel density/pixels/m²	62500/square meter
Module resolution	64*32mm
Module size/mm	256*128mm
View distance	≥4m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>1000cd/square meter
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/8
Fresh rate	60Hz
Refresh frequency	>1000Hz
Control mode	Computer synchronous
Out of control point	<1/10000
Aging hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

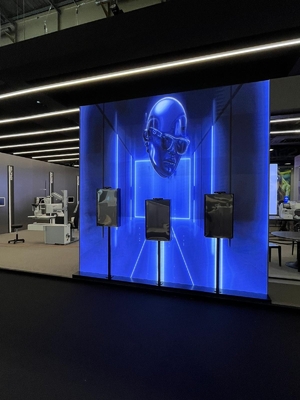

LED Billboard P4 Outdoor Waterproof 5000cd/M2 Brightness High Resolution 0

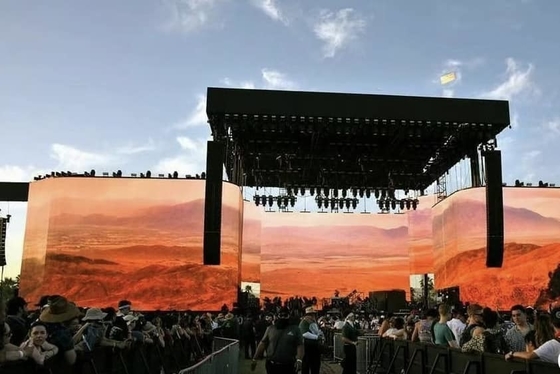

LED Billboard P4 Outdoor Waterproof 5000cd/M2 Brightness High Resolution 1

Advantage

1. We have the advantage of a full range of LED display production

2: Goods supply from indoor and outdoor P10, P8, P6, P4,P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as
wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer
evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display
system Display troubleshooting
