Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden and fligt cases,it's all up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |
| Supply Ability: | 5000M²/Month |
| Color: | Full Color | Pixel Pitch: | 5mm |
|---|---|---|---|
| Module Size: | 320*160mm | Cabinet Size: | 640*640mm |
| Module Resolution: | 64*32 | Brightness: | ≥5000cd/m² |
| Pixel Density: | 40000dots/m² | Waterproof: | IP65 |
| Control System: | Nova | Application Place: | Outdoor |
| Highlight: | Outdoor HD LED Billboard,P5 Outdoor LED Billboard,High Brightness LED Billboard |
||

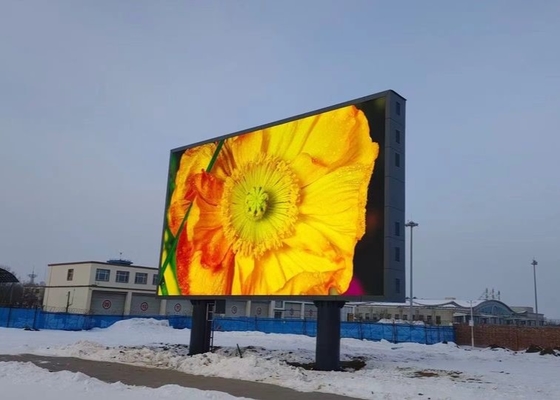

Fixed RGB LED Billboards P5 Outdoor HD Nova System High Brightness and Resolution
The introduction of the control system:
First of all, if you don't have any special requirements, we use Lingxing's control system by default. If you have other needs, you need to let us know in advance. Since the price of the Nova system is slightly higher than Lingxing,
but if the quantity is large, we can provide the Nova system for free and give away our own video processor.
If you have other questions, you can consult us online or by phone.
We will reply to you within 24 hours, thank you for your patience!
Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
Specifications:
| Resolution/mm | 5 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 40000/square meter |
| Module resolution | 64*32 |
| Module size/mm | 320*160 |
| View distance | ≥5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/8) |
| Frame rate | 60Hz |
| Refresh frequency | >1000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <800W |
| Average power:/square meter | <280W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Waterproof | IP65 |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC220V/60HZ |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) |
storing:10-95% |
