Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet

Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet

  • Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet
  • Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet
  • Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet
  • Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet
Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet
Product Details:
Place of Origin: China(Mainland)
Brand Name: SCX
Certification: CE,ISO,FCC,UL
Model Number: SCX-P4.81
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Wooden and flight cases.
Delivery Time: 12-15 working days.
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 5000M²/month
Contact Now
Detailed Product Description
Brand: SCX RGB Screen Cabinet: Die Casting Aluminum
Pixel Pitch: 4.81mm Module Size: 250*250mm
Cabinet Size: 500*1000mm Miantance: Pre-maintance
Warranty: 2 Years Installation: Outdoor
Highlight:

Die-Cast Aluminum LED Billboard

,

P4.81 LED Billboard

,

High Refresh Rate LED Billboard

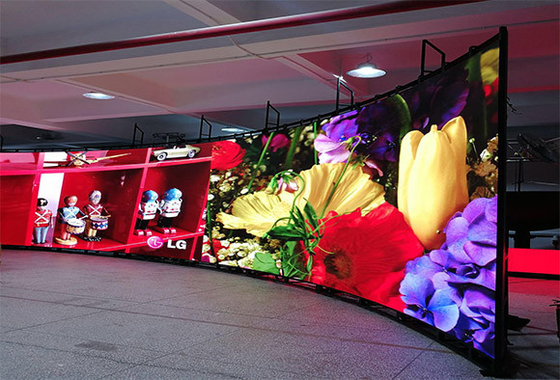

Curved Screen LED Billboards P4.81 RGB 1/13 Scan Mode High Refresh Rate 1920HZ



Pre-maintance: This installation method is very convenient for buyers.

No need to disassemble the cabinet, just remove the module with a screwdriver.

Such a design can save manpower, material and financial resources.

And the price is also suitable, not expensive, but very convenient. Many customers buy this product to install on buildings.





Short introduction:

1. The box size is 500*1000mm, and the material is die-cast aluminum;

2. The waterproof level is IP65, which can effectively protect the screen;

3. The method of use is very simple, including the control system and playback software;

4. The box weight is about 12.8KG;

5. We use aviation boxes for packaging, usually 1 package of this size is 5, and the weight of the aviation box is about 50.5KG;



Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



Specifications :



Outdoor P4.81 Pre-maintance LED Display
Resolution/mm 4.81
Pixel configuration 1R1G1B
Pixel density/pixels/m² 43222/square meter
Module resolution 52x52
Module size/mm 250x250
View distance 5-100m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 5500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/13 SCANNING
Frame rate 60Hz
Refresh frequency 1920Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 0Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 1Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 2Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 3

Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 4Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 5

Screen LED Billboard P4.81 RGB 1/13 Scanning Mode High Refresh Rate Die-Cast Aluminum Cabinet 6

How to make the order?

①Send the message to us online/by email(or other contact info,in the end of the description is our contact info)

---②inquiry the item you interested---③if the price and product you are satisfied---④tell us the insatllation place and

screen size---⑤we will make the quote for you-then send you the PI and contract---⑥you need to pay the 30% deposit

---⑦we make the goods-finish the down payment---⑧we send you the goods.



If you still have questions,just contact us in any ways,all the answers we will reply you in time!
