| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P12 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqs/month |
| Pitch: | 12mm | Scan Mode: | 1/4 |
|---|---|---|---|
| Control Mode: | Synchronous By DVI | Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Applations: | Dance Floor,advertising Shopping Mall,airport,station,concert... | Module Size: | 192*192mm |
| Cabinet Material: | Aluminum | Resolution: | 16*16 |
| Pixel Density: | 6944dots/sq | Brightness: | ≥7500cd/sq |
| Warranty: | 3-5 Years | LED Type: | DIP347 |
| Working Voltage: | DC5V | Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P8,P10... |
| Highlight: | 1/4 Scan LED Display,12mm Pitch LED Display,192*192mm LED Display |
||

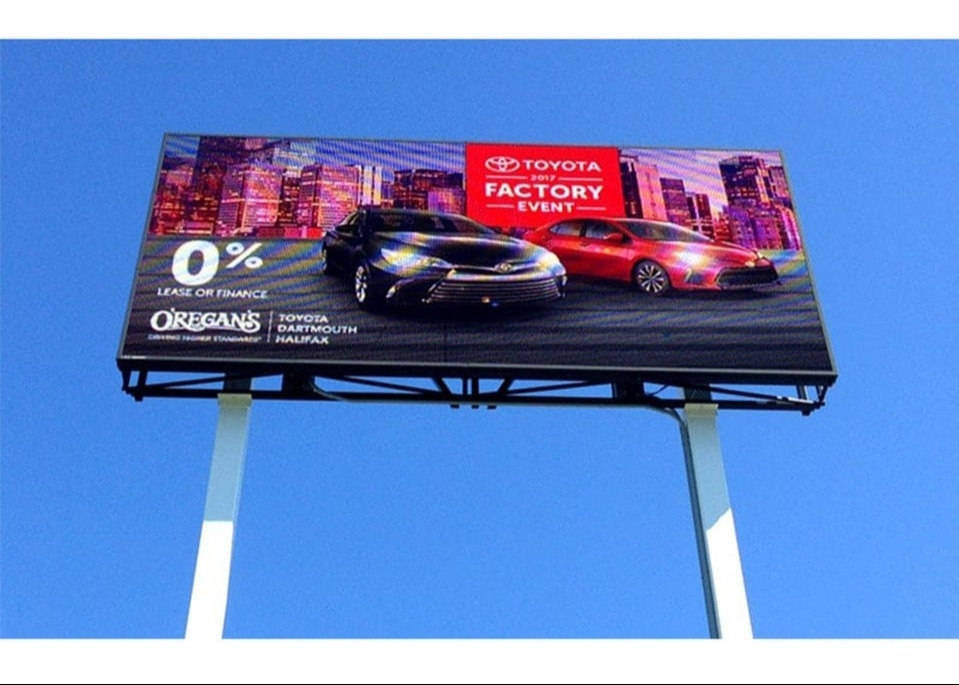

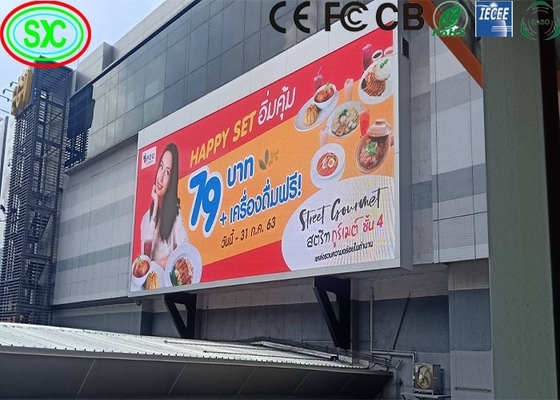

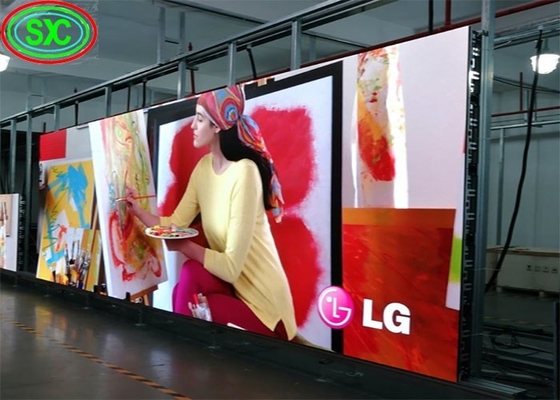

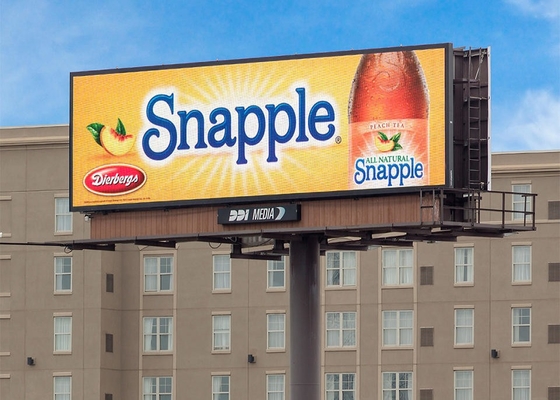

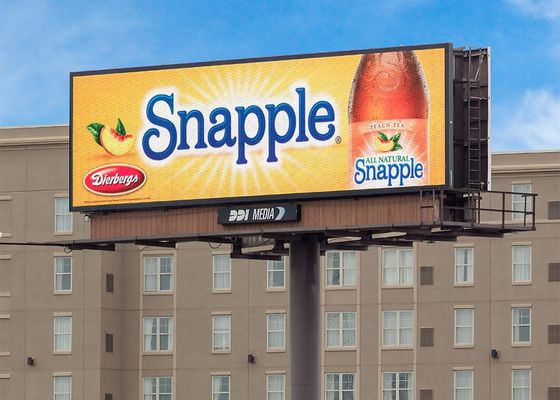

P12 DIP Full Color Advertising LED Display 1/4 Scan 192*192mm Module IP65
|
Brand name
|
SCXK-RGB LED Display | ||
|
Inner Structure Material
|
Stainless steel, aluminum, galvanized sheet optional. Conventional aluminum profile.
|
||
|
Frame
|
Waterproof casing/Simple casing
|
||
|
Pixels
|
Available for customized. such P3, P3.91,P4,P4.81,P5, P6,P8, P10...
|
||
|
Pixel configuration
|
RGB, available for customized
|
||
|
The Packaging
|
Bubble Cotton & cardboard, Wooden boxes and flight cases for export.
|
||
Parameter Description
| outdoor P12 LED Display | |||||
| Resolution/mm | 12 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 6944/square meter | ||||
| Module resolution | 16x16mm | ||||
| Module size/mm | 192*192mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Features:
1.First-class LED chips, provided by Japan Nichia and other high standard LED chips to ensure long life and high brightness.
2. High contrast ratio: above 2000:1, extremely high contrast ratio ensures vivid image of LED display system.
3. clear and vivid image quality: more than 120 degrees horizontally and vertically, ensuring to attract more viewers, so that the LED display investment to get a short ROI. 4.
4. 4. Long-term brightness: The use of high-quality LED chips and bulbs ensures that the LED display can last up to 11 years with low lumen depreciation.
5. High Definition: LED display has high resolution and can maintain good video effect.
Advantage
1. High brightness: Due to the use of high brightness LED lights, viewers can see the image clearly from a distance under strong sunlight.
2. Long service life: The use of high quality LED lamps as the core material and the patented PCB design of the screen fundamentally guarantee the long service life of the product.
Long service life is fundamentally guaranteed.
3. Stable performance: special treatment for anti-electromagnetic waves, the screen adopts distributed scanning and modular design, stable performance.
Modular design, more reliable and stable work.
4. Delicate image: non-linear correction technology makes the image delicate and clear, and the video image is vivid and realistic.
5. Excellent flatness: The precision design of module frame components controls the deviation of adjacent modules within 0.1 mm, with excellent flatness and no mosaic phenomenon.
6. High Contrast: Consistent deep black and patented masking enable higher contrast and more vivid colors.
7. Easy Installation: Modular design makes installation and maintenance easier.
8. Excellent material: Adopting the same grade of imported LED chips from Taiwan, the United States or Japan, high-quality driver IC, low-noise power supply, which can ensure the screen to work smoothly in the environment of -40~60.
9. Multiple formats: Customers can choose any screen display format, can support TXT, graphics, pictures, animation and video programs.
10. Paint: Paint can protect PCB and related components from environmental erosion, with good resistance to high and low temperatures, as well as insulation, moisture, crepe, dust, corrosion and other excellent characteristics.
11. High anti-vibration performance: the cabinet must be tested for anti-vibration performance before shipment to avoid poor contact due to loose screws.
High anti-vibration performance: the cabinet must be tested for anti-vibration performance before shipment to avoid poor contact due to loose screws or disconnected cables after a long time of line transportation.
12. High waterproof performance: the cabinet must be waterproofed during the production process, and its front and back can be completely waterproof, so that it can work smoothly in outdoor all-weather.
