| Brand Name: | SCXK |
| Model Number: | P4.81 |
| MOQ: | 3 sqm |
| Price: | negotiation |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 sqm per month |
| Pixels | 4.81mm |
| Tube Chip Color | Full color |
| LED Type | SMD3535 |
| Display Function | Video |
| Optimum Viewing Angle | H:360°, V:360° |
| Relative Humidity | ≤95%RH |
| IC | MBI 5024 IC |
| Rated Power/Average Power | 400W/240W |
| Scan Mode | Static scan |
| Brightness | Over 3000 |

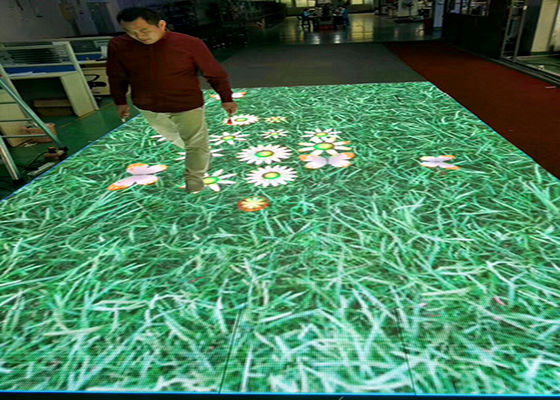

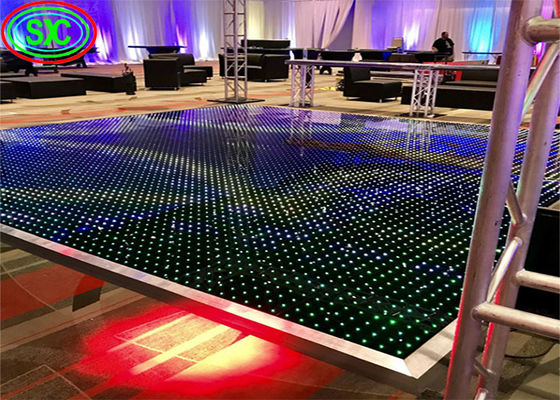

SMD3535 sound active DJ LED disco dance floor warm white beam LED disco floor panels

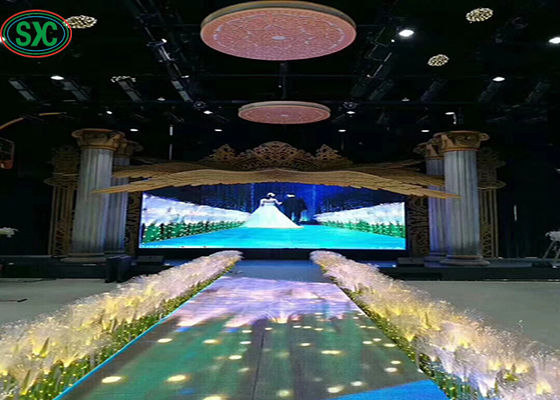

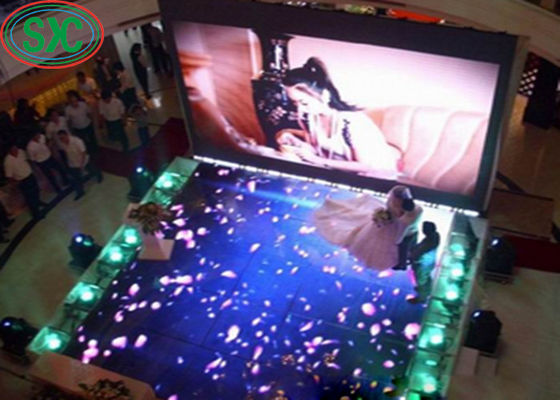

Architectural/retail spaces, stages, productions, night clubs, DJ parties, live concerts, award functions, art galleries, museums, and more.
| LED Specifications | |
| Type | SMD |
| LED Standard | Real Pixel (1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| Module Specifications | |
| Pixel Pitch | 4.81mm |
| Resolution | 52x52 dots |
| Module Size | 250x250mm |
| Cabinet Specifications | |
| Cabinet Size (W*H) | 500x1000mm |
| Cabinet Resolution | 104x208 dots |
| Pixel Density | 43222 dots/㎡ |
| Cabinet Weight | ≤6.5kg |
| Material | Die casting aluminum |
| Flatness of cabinet | ≤0.3mm |
| Screen Parameters | |
| Color/Brightness Calibration | Yes |
| Color Temperature (K) | 3000-10000 |
| Light Centre Distance Deviation | <3% |
| Brightness Uniformity | ≥97% |
| Color Uniformity | Within ±0.003C×,Cy |
| Contrast Ratio | 5000:1 |
| View Angle | Horizontal 160°/Vertical 140° |
| Input Voltage | AC100~240V (50-60Hz) |
| Power Consumption | Max:800w/㎡ Avg:280w/㎡ |
| Driving Method | 13 scanning |
| Protection Level | IP65 waterproof |
| Grey Scale Levels | R(256) G(256) B(256) |
| Life Span | 100,000 Hrs |
| Temperature-Operating | -20 -- 50℃ |
| Humidity-Operating | 10 - 90% |
| Features | Anti-slip, anti-collision, big load-bearing capacity |
| Usage | LED floors, LED wall background |
| Display function | Text, picture, video |
Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.
Condition: 3-5 mins up and down in 5mm range
With more than 12 years experience in LED display production, equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.
Large scale production capacity and professional technology allow us to maintain effective modular production. We continuously innovate to reduce costs and benefit customers.
We commit to promised delivery dates, using emergency inventory procedures when necessary to maintain uninterrupted supply.
Pre-sales: Your requirements are highly valued with product recommendations tailored to your needs.
After-sales: We track product usage to continuously improve our offerings.
