Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Made in china |
| Brand Name: | SCXK |
| Certification: | CE,ROHS, FCC.UL.CUL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | one cabinet sand one module can be avaiable. |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, flight case, paper box |
| Delivery Time: | within 7-10days, |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | Iron And Steel Cabinet | Cabinet Size: | 640mm X640mm |
|---|---|---|---|
| Module Size: | 320mm X160mm | Warranty: | 3 Years |
| Led Light: | SMD2121 | Led Chip: | Epistar |
| Color: | Full Color | Dot Density: | 62500dots/sqm |
| Use: | Advertising Publish, Shopping Mall, Welcome Display, Restaurant & Hotel Supplies | Specification: | Video Wall |
| Place Of Origin: | Guangdong China | ||
| Highlight: | Outdoor Stage LED Screens,Indoor Stage LED Screens,HD Full Color Stage LED Screens |
||
High quality chip SMD2727 Shopping Mall Stadium outdoor Full Color LED video billboard fashion Train station LED Displays
Quick details
Our factory has its own characteristic culture, which is full of passion and warmth, and has its own sunshine motto. Every employee working here is not only a worker, but also a friend, and our friendship is rich, and all of our employees are doing their best work every day. Our work motto is: passionate work, happy life; our spirit is: strict requirements, conscious dedication; our goal is: customer first, service first; our service concept is: loyal service, wonderful life.
Specification as follows.
| LED Lamps | Type | SMD2727(High Brightness LEDs) | |||||
| LED Standard | Real Pixel(1R1G1B) | ||||||
| Red Wavelength | 625-630nm | ||||||
| Green Wavelength | 515-530nm | ||||||
| Blue Wavelength | 465-475nm | ||||||
| LED Module | Pixel Pitch | 6mm | |||||
| Module Size | 320mm x160mm | ||||||
| Module Resolution | 80*40dots | ||||||
| LED Cabinet | Cabinet Size | 640mmx640mm | |||||
| Cabinet Resolution | 160dotsx160dots | ||||||
| Cabinets Material | iron and steel cabinet | ||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||
| Drive IC | MBI5024 | ||||||
| Power Supply | Series connection | ||||||
| Brightness | >2000cd/sqm | ||||||
| Display Color | 16.7million | ||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||
| Best Viewing Distance | 4m~200m | ||||||
| Max Power Consumption | 600 w/sq.m | ||||||
| Average Power Consumption | 300 w/sq.m | ||||||
| Weight | 22kgs/sq.m | ||||||
| Refresh Rate | 2500hz | ||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||
| Output Voltage | DC5V,40A | ||||||
| Grey Scale Levels | 16bit | ||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||
| MTBF | 10,000 hours | ||||||
| Life-span | 100,000 hours | ||||||
| Protection Level | IP65 | ||||||
| Failure percentage of leds | less than 0.0003 | ||||||
| Working Temperature | -25℃-60℃ | ||||||
| Drive Mode | 1/32 scaning | ||||||
| Working Humidity | 10%~99% | ||||||
| Control System | Control method | Synchronization & Asynchronization | |||||
| Control System | (software) Led studio | ||||||
| Software | LED studio | ||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||
Competitive advantage
Led moduel we have
| Indoor outdoor full color SMD 3 in 1 led display | |||||||
| P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $1,905.50 | wooden packaged |
| P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $2,301.50 | flight case package |
| P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | $1,111.50 | wooden packaged |
| P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | $1,195.50 | flight case package |
| P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $795.50 | wooden packaged |
| P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $842.50 | flight case package |
| P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | $795.50 | flight case package |
| P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | $603.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | $655.50 | flight case package |
| P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | $480.50 | wooden packaged |
| P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | $555.50 | flight case package |
| P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | $398.50 | wooden packaged |
| P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | $478.50 | flight case package |
| p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | $350.50 | wooden packaged |
| All the pricelist include the control system,3 years warranty!(we will send some spare parts based on your order | |||||||
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts. For asynchronous control We use Onbon, or Xixun control system.

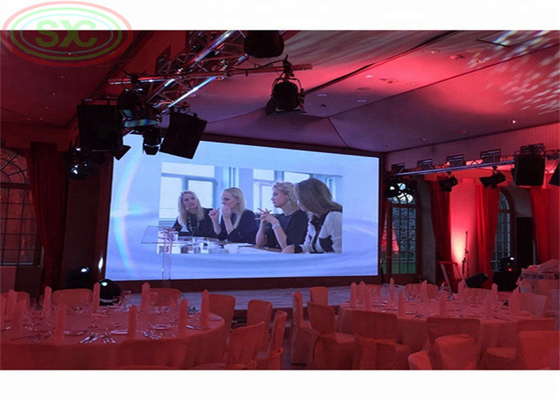

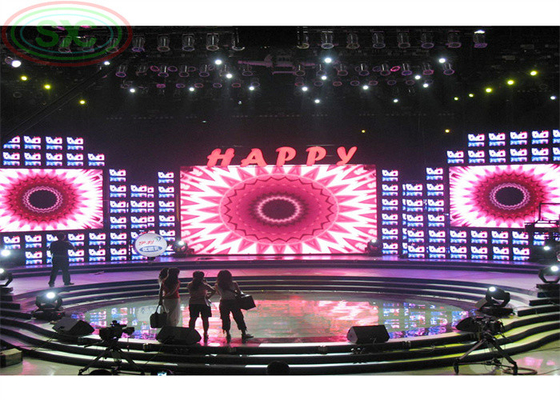

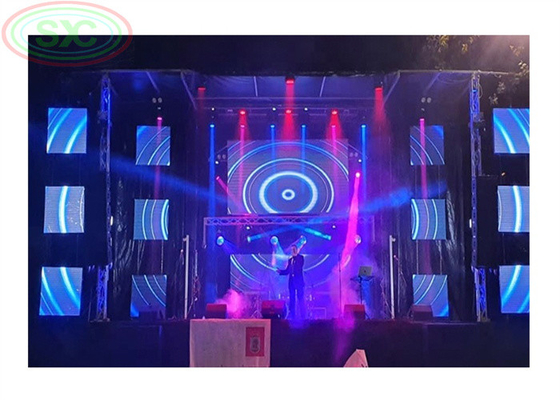

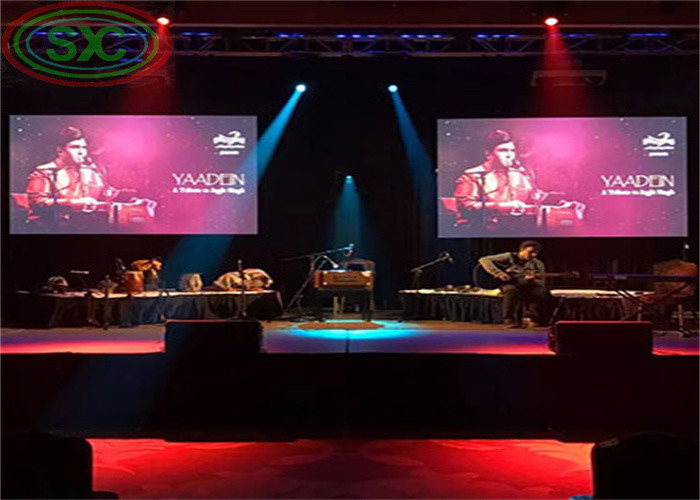

Project cas
we have many different project for our oversea market. And the P4 is very high defintion .If you have any question or confusion, just feel free to contact us.We will give you all kinds of assistance and supports.
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
FAQ
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3. Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
Q4. What's the control system?
A4. For synchronization control. We use Nova, Linsn Or Colorlight control system.
For asynchronous control We use Onbon, or Xixun control system.
