Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size

Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size

Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size
Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size
Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE,ROHS ,FCC,UL
Model Number: SCXK-P4
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm can be available
Price: negotiation
Packaging Details: wooden box,paper box,flight case
Delivery Time: within 5-8 working days
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Material: Irol And Steel Cabinet/ Super Thin Cabinet Color: Full Color
Pixel Density: 10000dot/sqm Application: Indoor Stage Rental Usage
Warranty: 3 Years Module Size: 256mm X128mm
Brightness: 2500 Name: P4 Rgb Led Screen
Use: Advertising Publish, Shopping Mall, Welcome Display, Restaurant & Hotel Supplies Specification: Advertising Publish, Shopping Mall, Welcome Display, Restaurant & Hotel Supplies
Highlight:

768X768mm Indoor RGB LED Display

,

P4 Indoor RGB LED Display

Full Color SMD2121 Indoor P4 768X768mm iron and steel cabinet RGB led display for fixing usage



Quick details



Indoor LED display adopts high quality LEDs with high luminous efficiency, low brightness attenuation, high stability and reliability. Super uniform color. Low cost, high pixel density, more vivid and stable picture (no flicker). Indoor full color LED display with ultra-thin, ultra-lightweight structure increases design opportunities and reduces transportation costs.SMD technology brings ultra-wide viewing angle, better color performance, higher contrast ratio and refresh rate to LED display. Ultra-thin rental indoor LED displays are lightweight and feature a special lifting system for simplified service, easy installation, easy configuration and maintenance, and a number of other improvements that are unmatched in the industry.



Specification as follows.



LED Lamps Type SMD2121 (High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 4mm
Module Size 256mmx128mm
Module Resolution 64*32dots
LED Cabinet Cabinet Size 768mm x768mm
Cabinet Resolution 192pixels *192pixels
Cabinets Material Sealed Iron Cabinet
LED screen Pixel Density 62500pixels/sq.m
Drive IC MBI5024
Power Supply Series connection
Brightness 2500cd/sqm
Display Color 16.7million
Viewing Angle 160°(Horizontal),110°(Vertical)
Best Viewing Distance 4m~200m
Max Power Consumption 600 w/sq.m

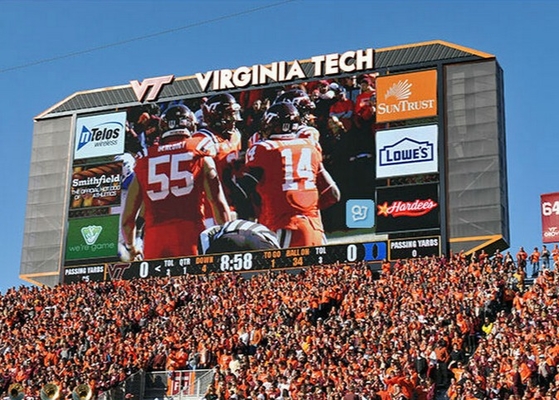

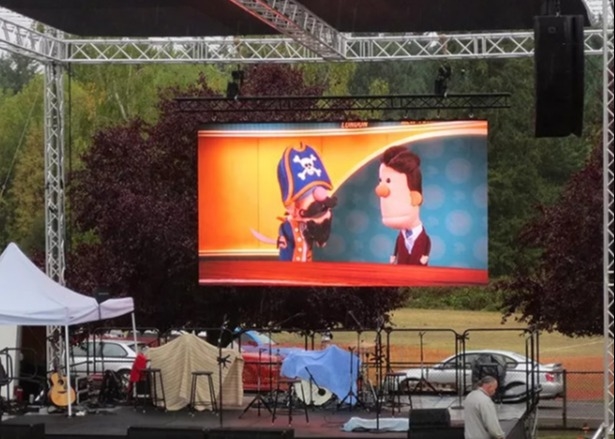

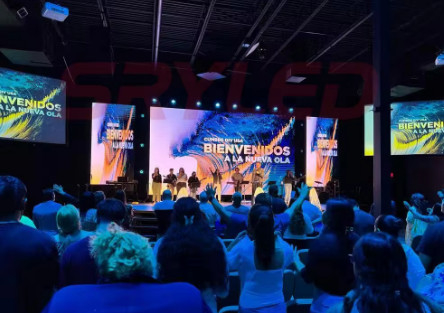

widely applied to outdoor advertisement, stage shows, advertising screens, concerts and so on.



Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size 0
 Module 256mm x 128mm Full Color SMD2121 Indoor RGB LED Display Die-Cast Aluminum Screen P4 768X768mm Size 1
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor
and outdoor led display,rental LED display, led modules where in Shenzhen city Guang dong province,China.

We adopt the Taiwan epistar chip,National star,king-star light .and all kinds of the customed light,its more high definition and brightness.


Our certification as follows: ( we regard our quality as our life.and regard our reputation as our enterprise life. all the led display will be through the strict test
before the deliverty time .And guarantee ,3 years warranty,more than 10 years lifeuse .

♦ Our advantages
Professional Manufacturer of led display

1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.

♦ Packaging and shipping

Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
