Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P12 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 12 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/4 Scanning | Module Size: | 192x192mm |
| Cabinet Size: | 960x768mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | CE Outdoor Full Color LED Display,RoHS Outdoor Full Color LED Display |
||

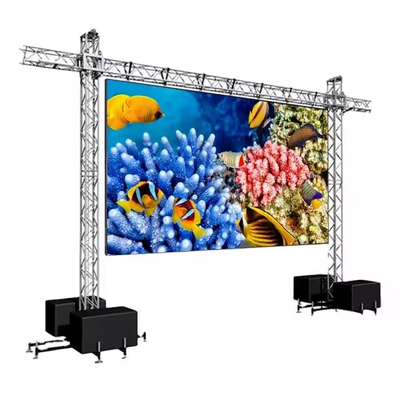

Light weight P12 Outdoor Full Color LED Display Advertising Multi Signals With CE / RoHS
Introduction:
1.CE&RoHS certificate
2. 36 months warranty and Life long free tech-support
3.Excellent contrast ratio, high resolution/high definition
4.Perect uniformity and no mosaic
5. Waterproof IP65
6. Light weight and easy to install
7. Available models: P10, 12, 16, 20, 25, 31.25, ect.
Advantages:
1. We have the advantage of a full range of LED display production
2: Goods supply from indoor and outdoor P10, P8, P6, P4,P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as
wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer
evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display
system Display troubleshooting
Specifications
| outdoor DIP P12 | |||||
| Resolution/mm | 12 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 6944/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 192x192MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our Service
LED display project support and local surveys are available from the moment the customer starts budgeting for the LED display project.
Provide customized LED screen software and hardware products according to customer requirements.
Provide LED screen technical training (factory or on-site) for different customers.
Drawings such as steel structure drawings and connection drawings are available after the order.
Whenever there is a software operation problem, we will provide timely online service and we will solve the problem as soon as possible in the process of cooperation with customers.
