Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P16 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 16 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 256x256mm |
| Cabinet Size: | 1024x1024mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | Rental Advertising Outdoor LED Screen,P16 Outdoor LED Screen,High Resolution Outdoor LED Screen |
||

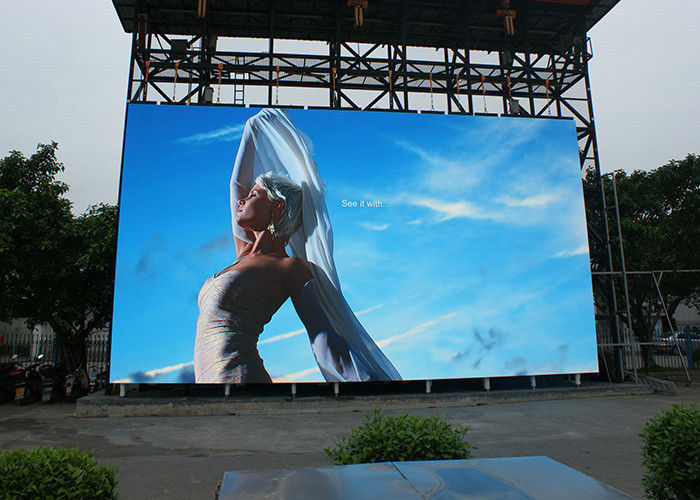

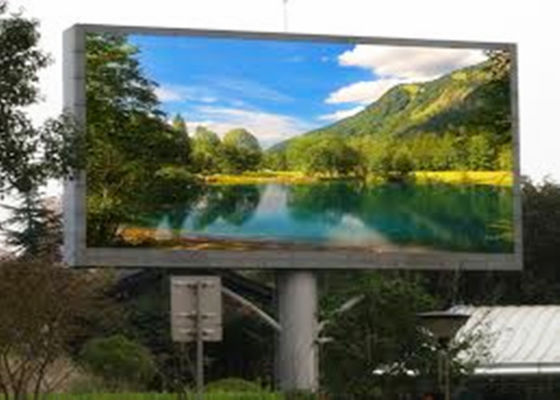

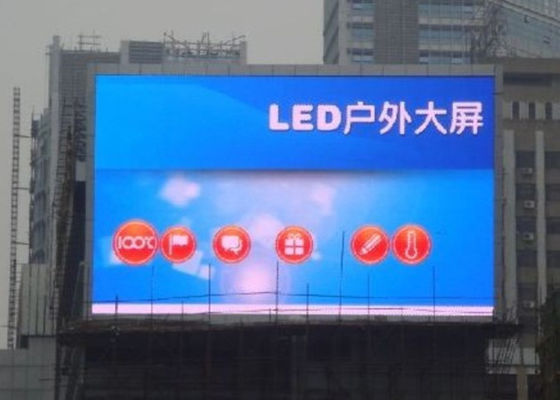

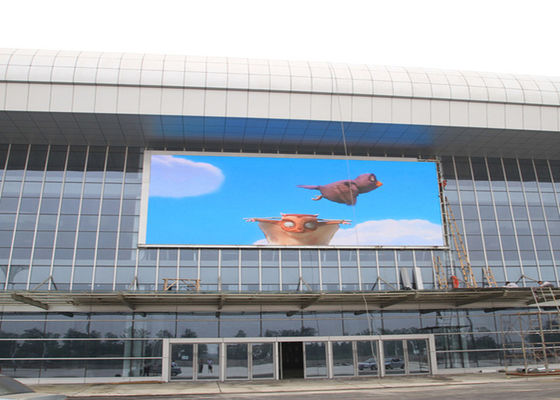

DIP Advertising P16 Outdoor Led Screen Video Wall Display Billboard High Resolution
Description:
1.Diecastingaluminumcabinet
2.High fresh frequency
3Light weight and ultra slim design
4. High Refresh with HD video
Product feature
1. Seamless assembly
With CNC processing, the range of tolerance is controlled within 0.1mm that guarantees the seamless assembly and perfect performance is presented
2.Perfect Details Design
Chamfering designed cabinet corner protects the user from accidental damage.
3.Modularization design, Friendly Maintenance
Modularization design makes assembly and maintenance quickly and efficiently, and front and rear maintenance are available which is you're your choice.
4.Curve Installation compatible,creative design
Concave and convex radian design optional , helping your LED video wall creative and changeable.
5. Light weight and Ultra-thin
The weight of each cabinet is less that 7kg that makes it easy to carry and labor-saving, high efficiency and cost-effective.
Advantages:
1. Die-cast aluminum material, solid structure, good heat dissipation
2. Equipped with an air box, easy to move and transport, more suitable for rental use
3. Equipped with a quick lock, easy to install and disassemble, saving a lot of time and labor costs
4. Seamless splicing, wide viewing angle, no discoloration at different angles, good performance
5. This box size is also suitable for indoor LED display screens P3.75, P4, P4.8 and P5
Specifications:
| outdoor DIP 16 LED Display | |||||
| Resolution/mm | 16mm | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 3906/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 256x256mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Trade terms
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation manual And maintenance manual
3. Service:Provide free technology support by phone and e-mail 7 years guarantee
4. Delivery: Approx 3-12 working days
5. Packing: Anti-shaking wooden package or Air Flight Case.
6. Transportation: By sea or air or Express
7. Two-Three years warranty. Repairing and replacement during the guaranteed period will be free,
but you should bear the freight cost from your place to our factory.
However, we can not guarantee on a workshop for replacement, compensation for damage, and repairing charge taking place within the following situations:
Accident due to careless handling and misusage.
