Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P6 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 6 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Control System: | LSN |
| Cabinet Size: | 576*576MM | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Brightness: | 6000 |
| Warranty: | 3-5 Years | ||
| Highlight: | Outdoor Full Color LED Display,P6 Outdoor Full Color LED Display |
||

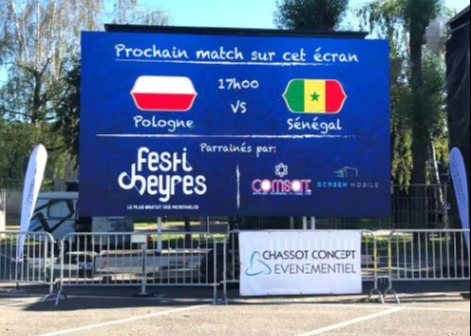

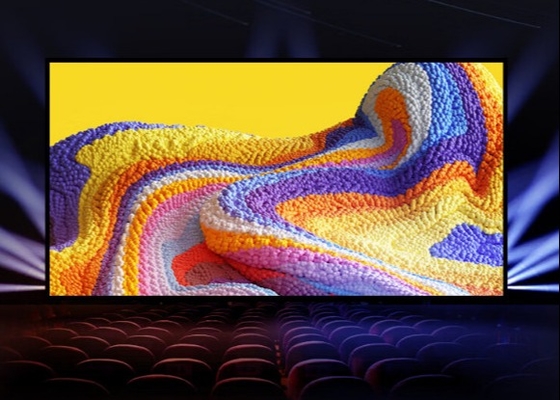

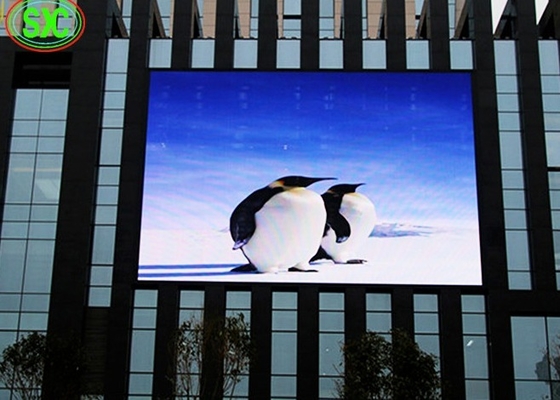

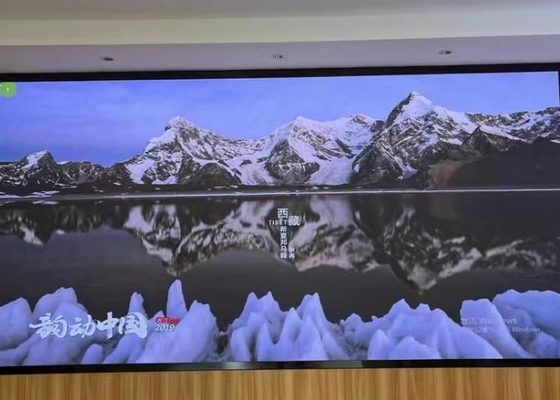

HD P6 Outdoor Full Color Led Display For video panel Advertising screen
1) Advertising video display
2) News, sports, live concerts
3) Stage background
4) Time, schedule, text information display
5) Logo, text, video dynamic display
FAQ
Q1: How to help client choose suitable display?
A1: (1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
Specifications :
| outdoor SMD P4 | |||||
| Resolution/mm | 6 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 27778/m² | ||||
| Module resolution | 192*192 | ||||
| Module size/mm | 576*576MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
after-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
Q1: How can I select your product?
Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
Q2:What if I don't know how to install the screen?
1. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation
place, and we can guide on line.
2. Training 2 people in the factory.
3. We can send our engineers to your country to guide how to install the screen.
Q3:What is the minimum order quantity?
Qty: 1 unit. Different order quantity different price.
Q4:I would like to ask you if it's possible to have my logo on the product.
Logo printing service is available for mass order based on our M.O.Q
Q5:What if I don't know how to maintain the screen?
We will provide you the operation manual, software when you place the order and also we can remote to help you to adjust the software by teamviwer.
Q6: How to deliver the my goods?
It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air, otherwise by sea to save the costs.
Q7: How about your warranty?
We provide 3 year warranty for all of our products and supply life-time maintenance.
Q8: What kind of packaging do you provide?
We provide flight case, wooden case and carton.
Q9: How long will it take me to get the product?
We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.
Q9: What kind of certification do you get?
We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
Contact Person: Lillian seori
Tel: +8619386814677
