Die-Cast Aluminum Soft Module Flexible Large Outdoor LED Display P4.81 1/13 Scanning Mode

Brand Name:	SCXK
Model Number:	SCXK-P4.81
MOQ:	Negotiations
Price:	Negotiations
Payment Terms:	T/T, Western Union
Supply Ability:	5000 sqms/month

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

ISO,CE,FCC,UL

Pixel Pitch:

4.81mm

Control System:

Nova

Type Of Cabinet:

Die-cast Aluminum/Iron

Working Voltage:

DC5V

Outdoor Options:

P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8,P10

Payment:

T/T,Western Union

Application Places:

Shopping Mall,Stations,Airports，Commercial Centure...

Certifications:

CE,ISO,FCC,UL.

Packaging Details:

Wooden and flight cases,it's up to you.

Highlight:

Flexible Outdoor LED Display

Soft Module Outdoor LED Display

P4.81 Outdoor LED Display

Product Description

Soft Module Flexible Outdoor Full Color LED Display P4.81 1/13Scan Mode

Short details:

1.High brightness LED lamps and good quality plastic kit.
2.High contrast ratio, outstanding display effect.
3.Light weight, easy to assemble and dismantle.
4.Maintenance can be a single point or single lamp.
5.Good heat dissipation capability because of the unique design of vent fan.

Specifications of products:

Flexible Outdoor Full Color LED Display P4.81
Resolution/mm	4.81
Pixel configuration	1R1G1B
Pixel density/pixels/m²	43222/square meter
Module resolution	52*52mm
Module size/mm	250*250mm
View distance	5-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>8000cd/square meter
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	alternating driving current
Scanning mode	1/13
Fresh rate	60Hz
Refresh frequency	>3000Hz
Control mode	Asynchronous,3G,4G,Wifi
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Aging hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Waterproof	Ip65
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

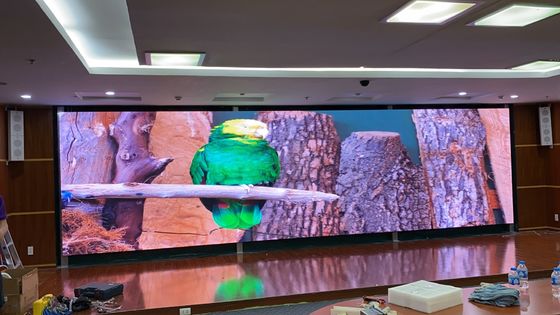

Die-Cast Aluminum Soft Module Flexible Large Outdoor LED Display P4.81 1/13 Scanning Mode 0

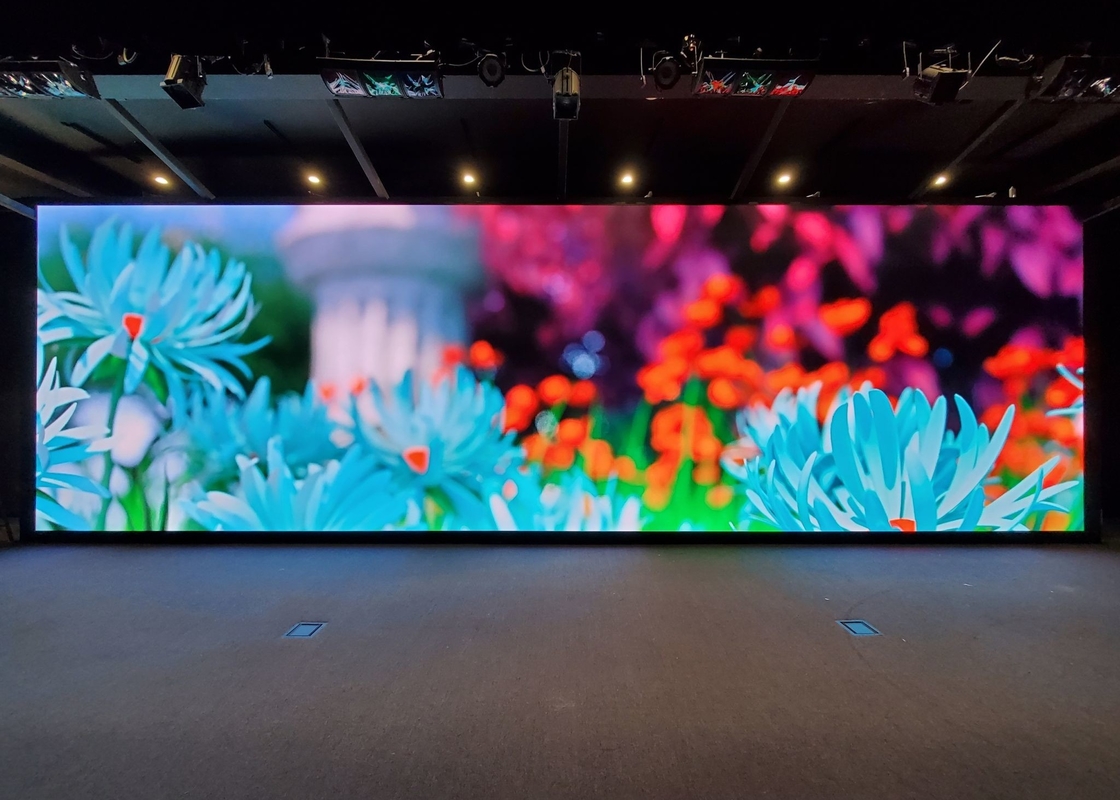

Die-Cast Aluminum Soft Module Flexible Large Outdoor LED Display P4.81 1/13 Scanning Mode 1

Our service:

1. Complaint response time is no more than 24 hours; maintenance guidance and problem solutions are provided within 48 hours.
2. Warranty period: 24 months.
3. Free technician training.
4. A full set of documents is provided free of charge, including installation guide, software operation manual, simple maintenance manual, control system software CD, etc.

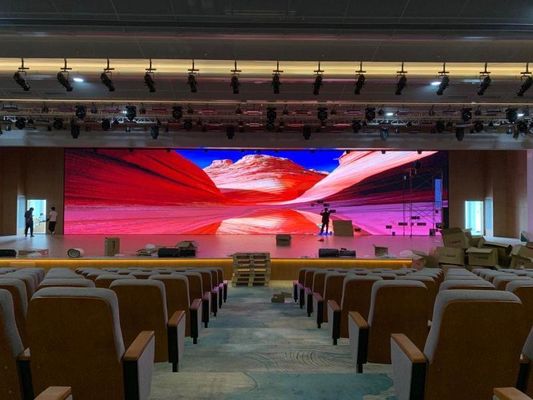

Die-Cast Aluminum Soft Module Flexible Large Outdoor LED Display P4.81 1/13 Scanning Mode 2

Welcome to visit our website and inquire us more info,waiting for you all the time!!!
