P10 Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof

P10 Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof

Product Details:
Place of Origin: Shenzhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T,Western Union
Supply Ability: 5000 sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 10mm Tube Chip Color: Full Color
Led Type: SMD 3535 Display Function: Video/Text/Image
Waterproof: IP65 Cabinet Material: Iron Or Die-casting Aluminum
Driver Mode: 4S
Highlight:

P10 Big Full Color LED Panels

,

Outdoor Shopping Mall LED Panels

,

Street Advertising LED Panels

Outdoor Shopping Mall Street Advertising LED Panels P10 Big Full Color LED Display Screen
Product Specifications
Attribute Value
Pixel pitch 10mm
Tube Chip Color Full color
Led Type SMD 3535
Display Function Video/Text/Image
Waterproof IP65
Cabinet material Iron or Die-casting Aluminum
Driver mode 4S
Production Process
  • Incoming Inspection
  • SMD
  • Plug-in
  • Wave Soldering
  • After Welding
  • Testing
  • Semi Finished Aging
  • Module Assembly
  • Gluing
  • Finished Aging
  • Detection Finishing Warehousing
Quality Assurance

5 Years warranty. Even after the warranty period, we continue to provide support and service. Within warranty period, any product malfunction under normal usage will be repaired or replaced at no cost.

Warranty Exclusions
  • Damage caused by incorrect use, unauthorized repairs or alterations
  • Damage from natural disasters, abnormal voltage or secondary product damage
  • Transportation failures after purchase
  • Improper operation not following user manual
  • Man-made factors or external device issues
Technical Specifications
Parameter Value
Lamp size 3535
Resolution 10mm
Pixel configuration RGB 3 in 1
Pixel density 10000/m²
Module resolution 32x16
Module size 320x160mm
View distance ≥10m
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Viewing angle 120° (H) x 120° (V)
Refresh frequency >1200Hz
Working temperature -20°C to 45°C
Power consumption Max: 850W/m², Avg: 280W/m²
Lifespan 100,000 hours
Key Features
  • High brightness (5500-10000cd) for excellent visibility in sunlight
  • Superior waterproof performance with IP65 rating
  • Strong UV resistance for outdoor durability
  • Quick content updates via simple control system
  • Automatic brightness adjustment based on ambient light
  • High refresh rate and gray scale for realistic images
  • Remote monitoring and control capabilities

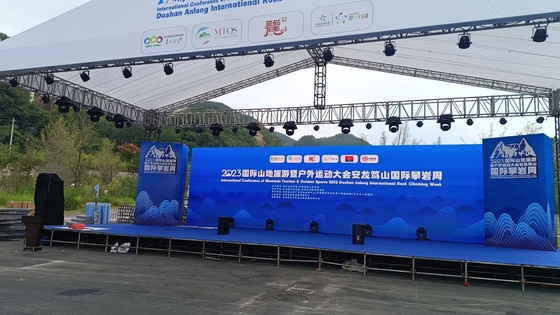

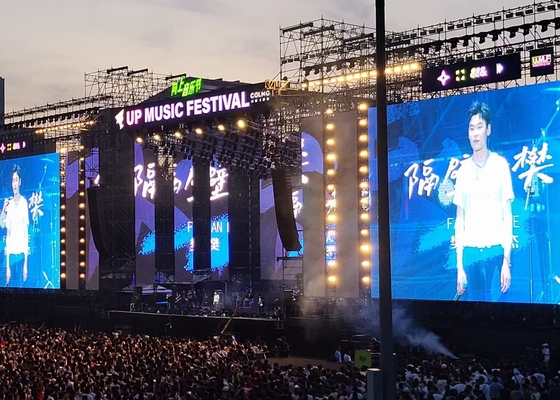

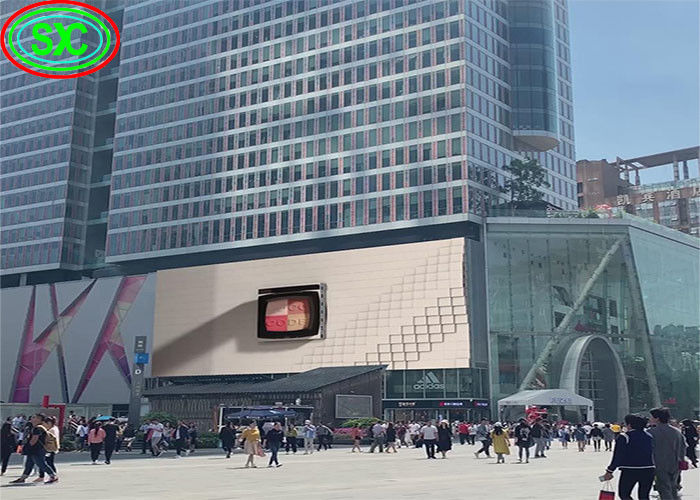

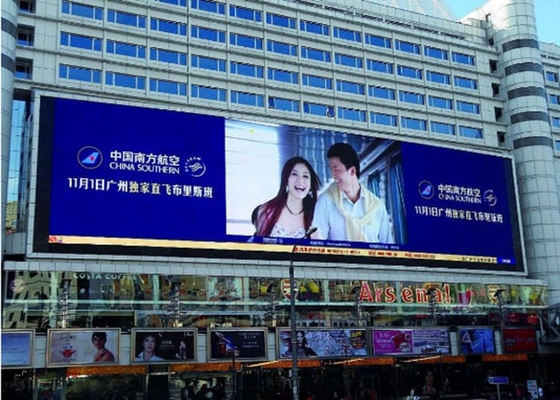

P10 Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof 0 P10 Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof 1
Our Advantages
  • Professional LED display manufacturer with OEM service
  • No minimum order quantity
  • Fast delivery (6-8 working days)
  • Free design drawings available
  • Remote control and adjustment capabilities
  • Custom packaging options (wooden or flight cases)
  • 24-hour customer support response
  • Experienced R&D team ensuring quality products
Our team provides comprehensive support for all your LED display needs!
