Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P2.5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 2.5 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/16 Scanning | Module Size: | 160x160mm |
| Cabinet Size: | 480x480mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum/iron |
| Warranty: | 3-5 Years | IC: | MB5124/MB5024 |
| Highlight: | P2.5 Indoor LED Screen Panel,SMD 1212 Indoor LED Screen Panel |
||

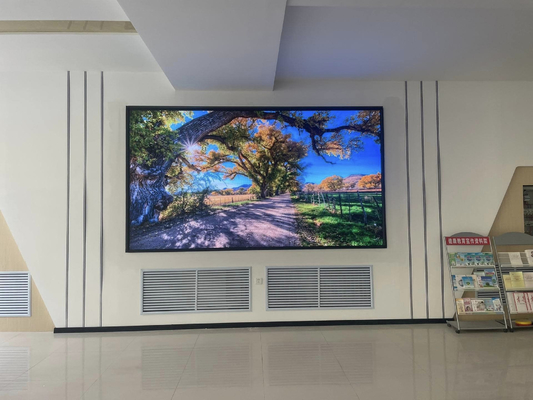

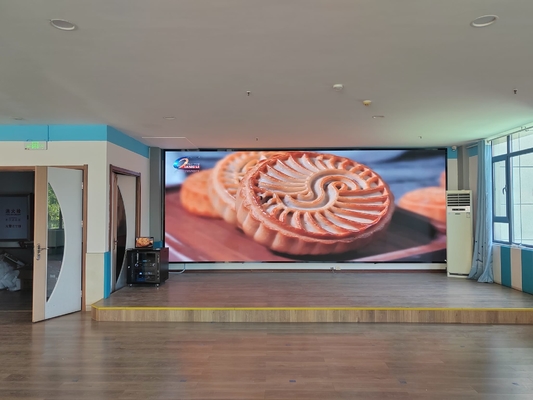

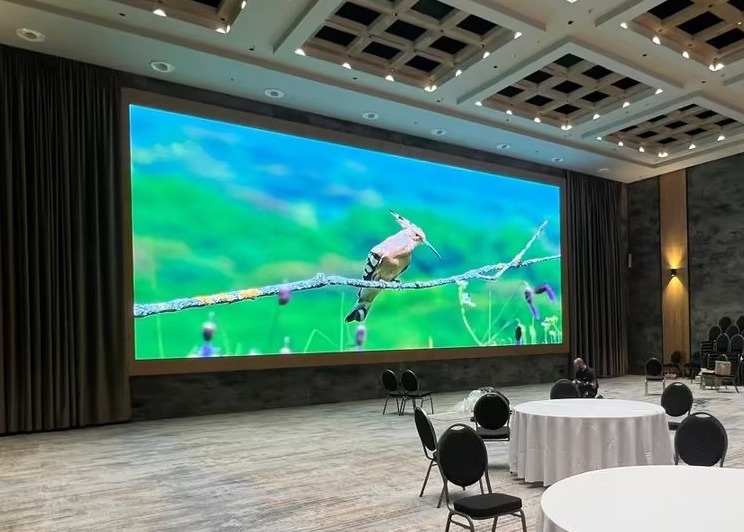

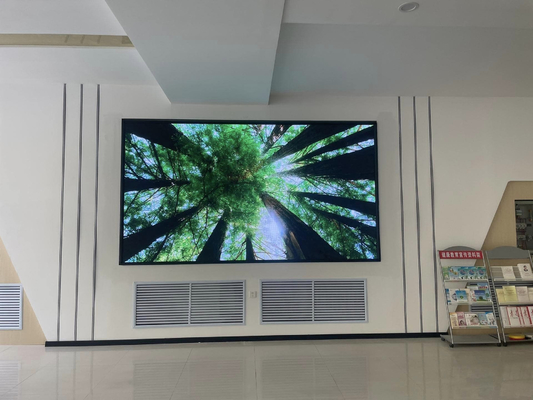

pixel 2.5mm indoor LED screen board ,aluminum LED cabinet with Nova system
Features:
1. CE,FCC,RoHS,FCC approved
2. High brightness: >6000nits, high refresh
3. Superior uniformity, good display effect
4. 2-3 years warranty, best after-sales service
5. Video, flash, animation, graphic, text available;
6. Installation structure drawing offered FOC;
7. Factory visiting and inspecting is welcome;
8. OEM service offered;
9. Models available:
Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P10mm, etc.
Outdoor led display-P5mm, P6mm, P8mm, P10mm, P16mm, etc.
1. The new mask design makes the light emitted by the LED almost non-reflective.
2. The module box body design adopts high-temperature spraying technology, and the anti-rust performance is greatly improved.
3. Adopt high-quality LED, high luminous efficiency, small brightness attenuation, and stable display.
4. The flatness of the module installation surface is controlled within 0.2mm to ensure the flatness of the entire screen.
5. Adopt all-round anti-static measures to effectively reduce the damage of static electricity to LED, so that the annual mortality rate of LED is controlled within 5 parts per million.
6. Advanced production technology to ensure the quality and life of the LED display.
7. Good color uniformity, effectively solve the mosaic problem.
8. Adopt wave soldering technology, and the PCB board uses antioxidant green oil to prevent the circuit from being damp and oxidized, extending the life of the LED display.
9. Greatly improve the power utilization rate and reduce the power failure rate.
10. The front is made of high-quality silicone and the back is made of waterproof glue to improve the waterproof performance of the LED display.
11. High reliability, high brightness, high corrosion resistance, suitable for various harsh outdoor environments, with excellent waterproof and moisture-proof performance. Dust-proof performance, exceeding IP65 level.
Specifications :
| outdoor DIP P2.5 | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
8 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
High quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before packing , make sure our quality before delivery.
6. Quality gurantee:
Life span of LED display screens is more than 100,000 hours
All our LED displays have CE,FCC,RoHS certificates.
7. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
FAQ
Q1: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q2: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q3: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q4: What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
