products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Stadium LED Display
Created with Pixso.

P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen

P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen

Brand Name: SCXK
Model Number: P5
MOQ: 5 pcs
Price: 371$-571$
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 5000sqm per month
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen China
Certification:
CE/ROHS/FCC/ISO/CB
Pixel Pitch:
5mm
Tube Chip Color:
Full Color
Led Type:
SMD2727/3535
Display Function:
Video/Text/Image
Waterproof:
Ip65
Cabinet:
Die Casting/iron
MBI:
5024
Viewing Angle:
H:160, V:140
Voltage:
DC5V
Cabinet Size:
960*960mm
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

Large Stadium LED Perimeter Display

,

Waterproof Outdoor LED Screens

,

Sport Stadium LED Perimeter Display

Product Description
Waterproof Outdoor LED Screens P5 Sport Stadium LED Perimeter Display Large Stadium
Product Attributes
Pixel Pitch 5mm
Tube Chip Color Full color
Led Type SMD2727/3535
Display Function Video/Text/Image
Waterproof IP65
Cabinet Die casting/Iron
MBI 5024
Viewing Angle H:160° V:140°
Voltage DC5V
Cabinet Size 960*960mm
Product Description

P5 Outdoor Sports Field Large LED Advertising Billboards Video Wall Panel

High refresh rate and gray scale ensures seamless picture quality for stadium LED displays.

P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 0
Key Features
  • High Gray Scale - Superior picture quality for stadium LED displays
  • High refresh rate and gray scale ensures seamless picture quality
  • Manufactured with premium materials for supreme quality and performance
Product Parameters
Resolution/mm 5
Pixel configuration 1R1G1B
Pixel density/pixels/m² 40,000/m²
Module resolution 32x32
Module size/mm 320x160
View distance 5-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120°
Vertical view angle 60°
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100,000hours
Life-all-white(brightness halving) 50,000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <800W
Average power:/㎡ <280W
Product Images

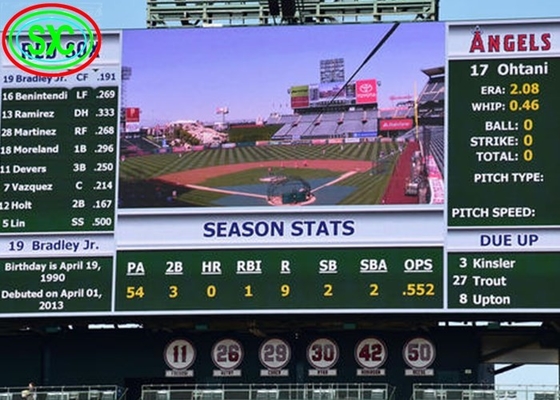

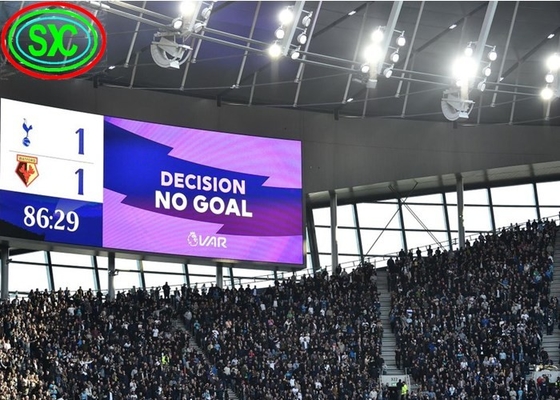

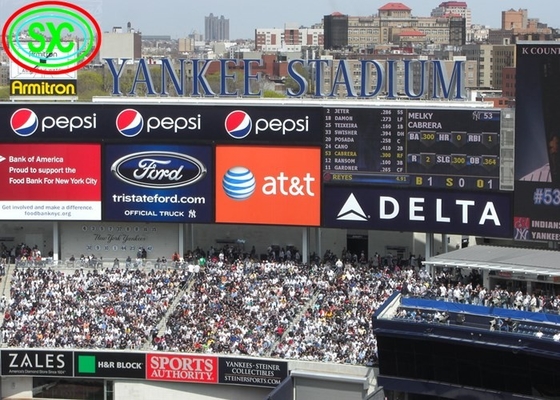

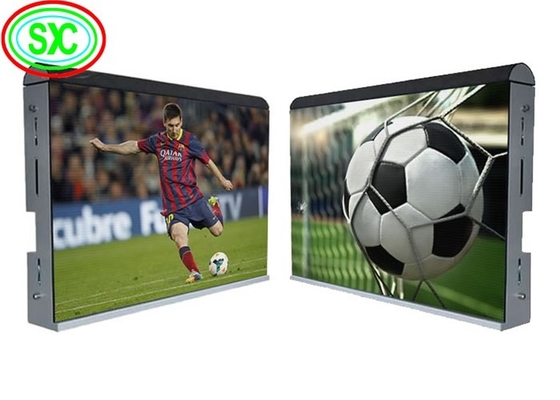

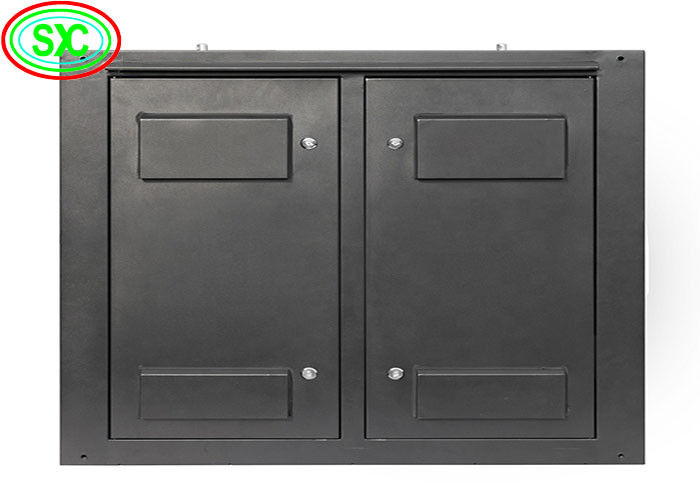

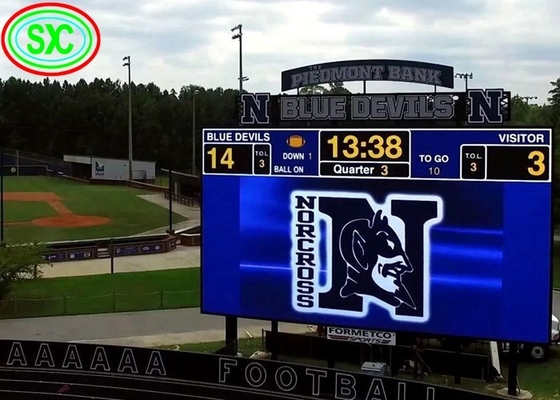

P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 0 P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 2 P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 3 P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 4 P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 5 P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 6
Production Process
  1. Incoming Inspection
  2. SMD
  3. Plug-in
  4. Wave Soldering
  5. After Welding
  6. Testing
  7. Semi Finished Aging
  8. Module Assembly
  9. Gluing
  10. Finished Aging
  11. Detection Finishing Warehousing
Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Why Choose Us
  • Continues Quality: Over 10 years of experience in LED display production with regularly updated equipment and unique standardized module production ensuring continuous product quality.
  • Competitive Price: Large-scale production capacity and professional production technology enable effective modular production, promoting technical innovation and cost reduction to benefit customers.
  • Fast Delivery: Commitment to promised delivery dates with special procedures like emergency inventory to maintain uninterrupted product supply.
  • Perfect Service: Pre-sales purchasing requirements are highly valued with suitable product recommendations. After-sales product usage tracking for continuous product improvement.
Workshop Show
P5 Outdoor LED Display 5mm Pixel Pitch IP65 Waterproof Stadium Screen 7
Future Partnership

Hope we can be partners in future growth!
