Die-Cast Aluminum Screen Fixed Installation/Rental Customizable P2.5 Small Pitch Indoor Full-Color Led Display

P2.5 aluminum cabinet Indoor Full Color LED Video Display for Conference room



Quick Detail:

1, High resolution at 160000pixels/㎡;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7000cd/㎡;
4, Power Supply: Meanwell;G-erngy ,chuanglian LED driver
5, Control System: Linsn,Nova etc.

Description:

1. P2.5 SMD LED display has high resolution and is suitable for indoor LED screens;
2. Both horizontal and vertical viewing angles are 140 degrees;
3. P2.5 is increasingly used for electronic digital signage because the trend of LED screens is high resolution.
4. Advertising images and videos are clear and realistic;
5. High contrast ratio of 1000:1, presenting a real and natural color LED screen;

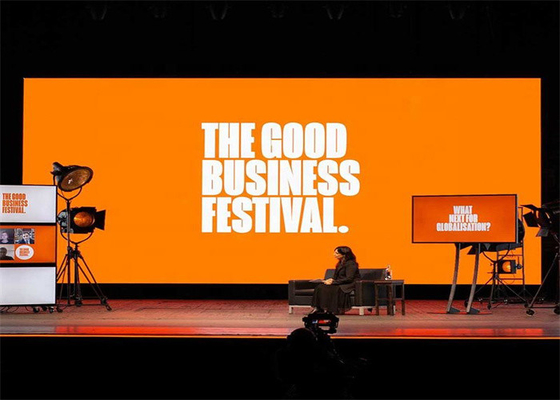

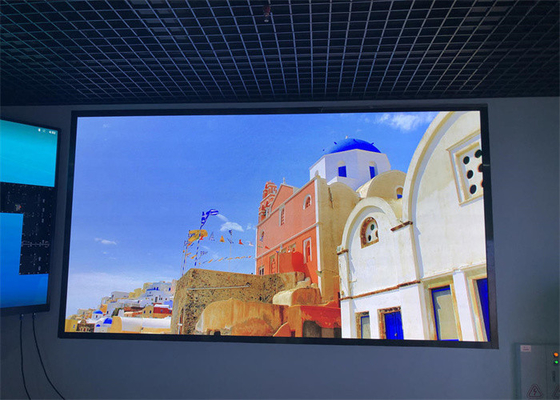

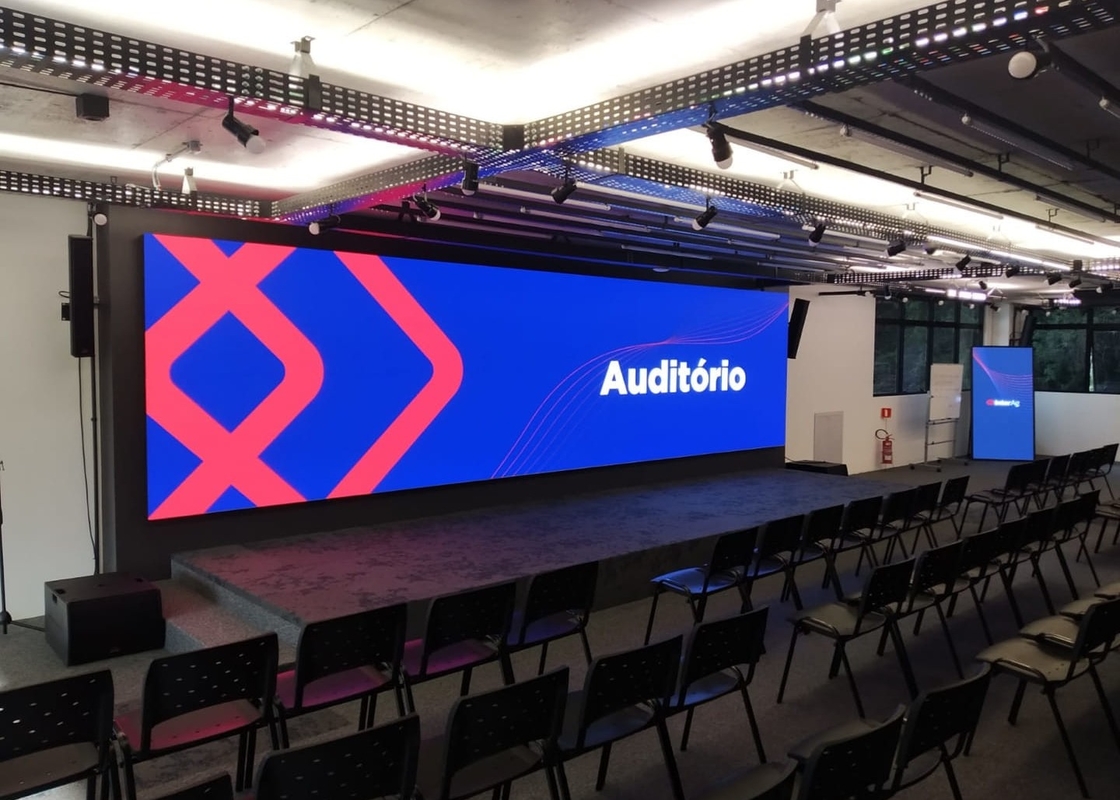

Applications:

Airport Full Color Indoor LED displays advertising

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display





Specifications :



outdoor DIP P2.5
Resolution/mm	2.5
Pixel configuration	1R1G1B
Pixel density/pixels/m²	160000/m²
Module resolution	64x64
Module size/mm	160x160mm
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/30 SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%



Competitive advantages:



1. The P2.5 indoor full-color LED display has uniform brightness and color;
2. The full-color P2.5 LED screen uses all-black LED chips;
3. The indoor full-color LED display has a contrast ratio of up to 1000:1, which truly restores the content color;
4. It uses Sum driver IC, with high refresh rate and high grayscale;
5. Both horizontal and vertical viewing angles are 140 degrees;
6. The P2.5 LED display has high resolution and is suitable for indoor rental activities that require high-quality demonstrations. The cost of large-size indoor LED screens is low;



♦ Production process



1) Incoming Inspection→2)DIP→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing





♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.





♦ Why choose us



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





♦ Frequently Asked Questions



Q1: How can I select your product?

Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.

Q2:What if I don't know how to install the screen?

1. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation

place, and we can guide on line.

2. Training 2 people in the factory.

3. We can send our engineers to your country to guide how to install the screen.

Q3:What is the minimum order quantity?

Qty: 1 unit. Different order quantity different price.

Q4:I would like to ask you if it's possible to have my logo on the product.

Logo printing service is available for mass order based on our M.O.Q

Q5:What if I don't know how to maintain the screen?

We will provide you the operation manual, software when you place the order and also we can remote to help you to adjust the software by teamviwer.

Q6: How to deliver the my goods?

It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air, otherwise by sea to save the costs.

Q7: How about your warranty?

We provide 3 year warranty for all of our products and supply life-time maintenance.

Q8: What kind of packaging do you provide?

We provide flight case, wooden case and carton.

Q9: How long will it take me to get the product?

We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.

Q9: What kind of certification do you get?

We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
