COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command
COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command
COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command
Product Details:
Place of Origin: CHINA
Brand Name: SCX-COB P0.9 ,P1.25 ,P1.56
Certification: CB,FCC CE
Model Number: P1.56
Payment & Shipping Terms:
Minimum Order Quantity: 6 sqm
Price: 1300usd per sqm
Packaging Details: wooden case,flight case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4100 sqm month
Contact Now
Detailed Product Description
Pixel Pitch: 1.56mm Ip Protection: Indoor IP43
Weight: 4kg Pixel Density: 409600dots/sqm
Cabinet Resolution: 384x216 Maintenance Method: Front Maintenance
Moudle Size: 300X168.75mm Maintain: 100% Front Access
Control System: Nova Star Operating Voltage: DC2.8V
Scanning Mode: 1/54 Maximum Power: ≤50W
Highlight:

Full Color HD COB LED Display

,

Indoor Small Pitch COB LED Display

,

Conference Room COB LED Display

Specifications


type cob
composition 1R1G1B
Scan method 54 S
LED  module resolution 192x 108dots (W x H)
Pixel pitch 1.56mm
Module size 300 x 168.75 mm
Module quantity 2x2
 cabinet resolution  384x 216(W x H)
Cabinet size 600 x 337.5mm
Panel Type and Material Die-casting aluminum
Best viewing distance 1m
Maximum power <300W /m2
Viewing angle 160°/160°
Brightness 1200 cd/m2
Pixel density

409600dot/m2
Control system Synchronous System
lifespan 100,000 hours
Frame frequency 60Hz
installation Hanging/Fixed with support bracket





Details pictures

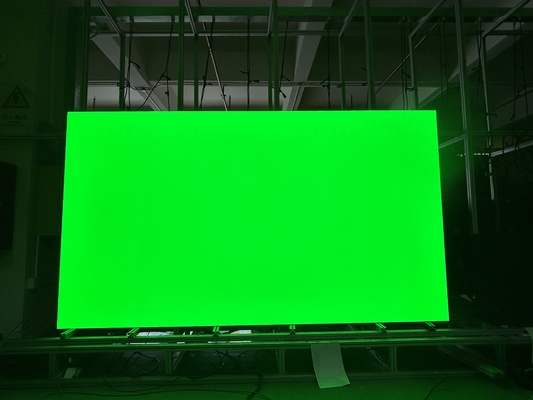

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command 0

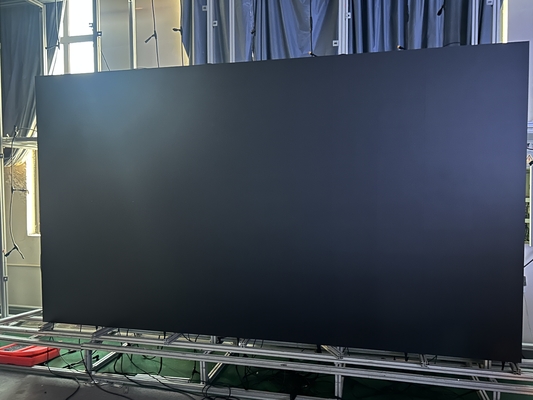

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command 1

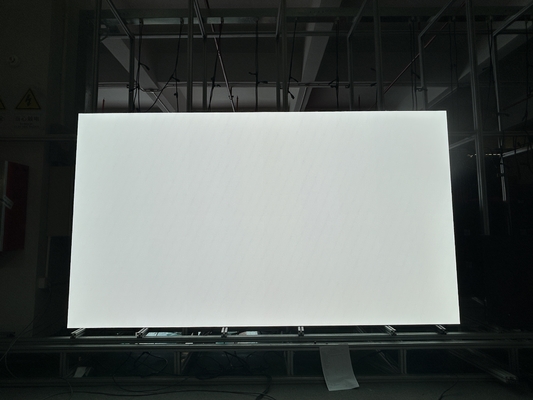

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command 2

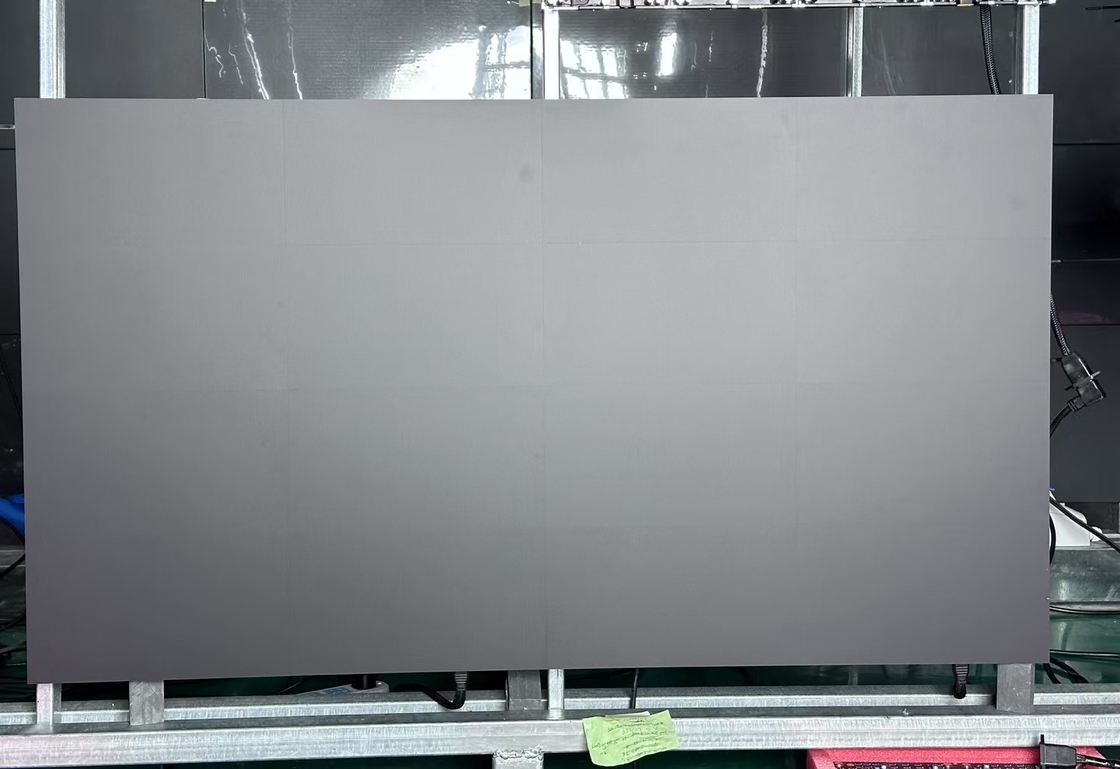

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command 3

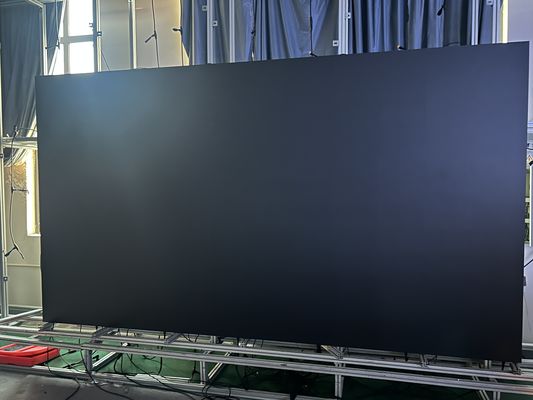

COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command 4
COB LED Display for Indoor Small Pitch Full Color HD P0.9P1.56 Large Screen for Conference Room Command 5

Our Service



1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure
