Outdoor Full Color LED Display
Created with Pixso.

Outdoor High Brightness P6 Full Color LED Screen Panels For Shopping Mall Advertising With MBI 5024 IC

Outdoor High Brightness P6 Full Color LED Screen Panels For Shopping Mall Advertising With MBI 5024 IC

Brand Name: SCXK
Model Number: P6
MOQ: 1 sqm
Price: negotiation
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/CB/UL
Pixel Pitch:
6mm
Display Function:
Video/Text/Image
Voltage:
DC5V
Refresh Rate:
>=1920HZ
Maximum Power:
800 W/㎡
Module Size:
192mmx192mm
Brightness:
≥5000 Cd/m2
Pixel Density:
10000
Driving Mode:
1/8 Scan
IC:
MBI 5024 IC
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

Shopping Mall Advertising LED Screen Panels

,

Outdoor High Brightness LED Screen Panels

,

MBI 5024 IC LED Screen Panels

Product Description

High Quality Outdoor Fixed Installation LED Billboard P6 Digital LED Panels Advertising LED Sign



♦ Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• It can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.


Fixed P6 Outdoor Full Color Led Display Smd 3535 With 3 Years Warranty

1. P6 outdoor digital led billboard
2. Factory price and good quality
3. Environmental-friendly and energy-saving.
4. Convenient and easy maintenance
5. Good heat dissipation capability because of the unique design of vent fan.


Our Advantage

1. High quality: 100% tested before shipping, Best quality LED chip tube the CREE, SILAN, OPTO, EPISTAR assuring high brightness and long life span. industry-leading
2. Strong productivity: 8000 square meters per month, Shorter delivery time
3. Good price: our price is 10% lower than the market because of the introduction of full
automatic production line with the characteristics of reducing the cost of labor and management.
4. Stable performance: our most basic guarantee: the aging time exceeding 24 hours. Malfunction
dot rate less than 0.0001. MTBF more than 1000 hours.
5. Any questions can be answerd quickly within 24 hrs.

The Outdoor P6 SMD Led Display Paramter As Follow


Outdoor DIP / SMD P6
Resolution/mm6
Pixel configuration1R1G1B
Pixel density/pixels/m²27778m2
Module resolution32*32
Module size/mm192*192
View distance7-500m
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 16bit
Driving modeConstant driving current
Scanning mode8dring
Frame rate60Hz
Refresh frequency3000Hz
Control modeComputer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

Out of control point<1/10000
Maximun power :/m2<800w
Average power:/m2<300w
Self-check technologLED spot self-check, communication check, power check, temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault send out warning signs to the operators(need customization)
Software environmentWindows 1999, Windows

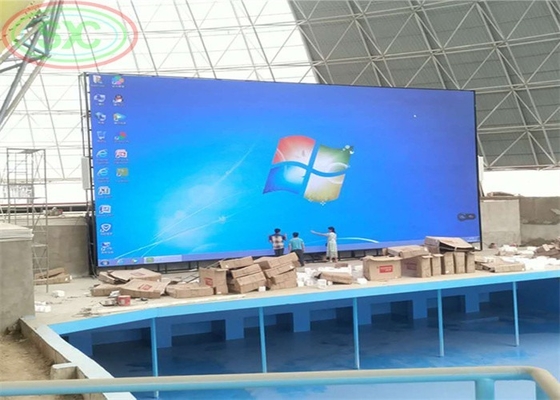

Outdoor High Brightness P6 Full Color LED Screen Panels For Shopping Mall Advertising With MBI 5024 IC 0

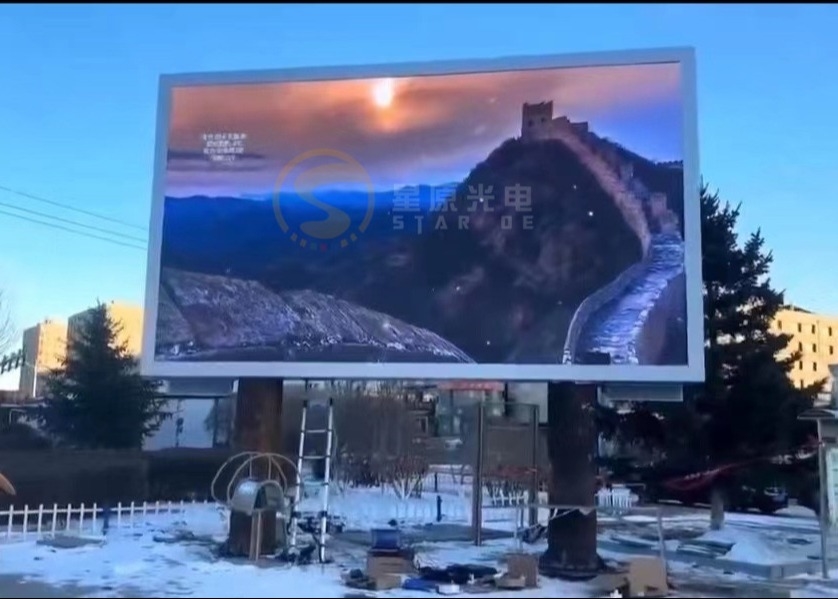

Outdoor High Brightness P6 Full Color LED Screen Panels For Shopping Mall Advertising With MBI 5024 IC 1

♦ Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds, school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.


Installtion

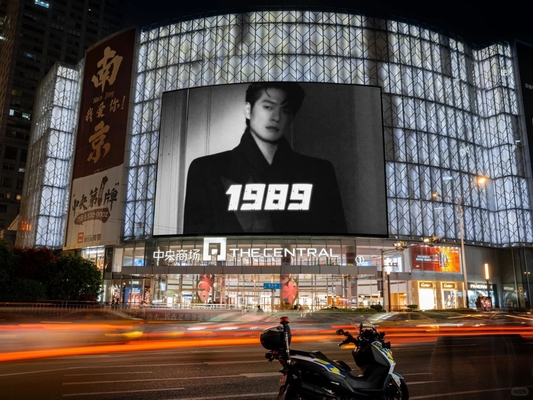

Outdoor High Brightness P6 Full Color LED Screen Panels For Shopping Mall Advertising With MBI 5024 IC 2

♦ Packaging and Shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.

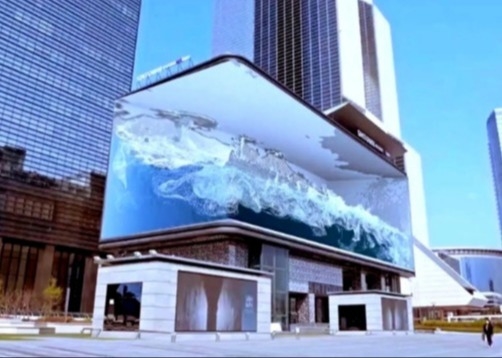

Outdoor High Brightness P6 Full Color LED Screen Panels For Shopping Mall Advertising With MBI 5024 IC 3
