Home ProductsFine Pitch Led Display

0.9mm smaller Pitch Led Display Easy Installation Full Flip-Chip COB Adjustable Color Temperature 600cd/m2 Brightness

0.9mm smaller Pitch Led Display Easy Installation Full Flip-Chip COB Adjustable Color Temperature 600cd/m2 Brightness

0.9mm smaller Pitch Led Display Easy Installation Full Flip-Chip COB Adjustable Color Temperature 600cd/m2 Brightness
0.9mm smaller Pitch Led Display Easy Installation Full Flip-Chip COB Adjustable Color Temperature 600cd/m2 Brightness
0.9mm smaller Pitch Led Display Easy Installation Full Flip-Chip COB Adjustable Color Temperature 600cd/m2 Brightness
Product Details:
Place of Origin: CHINA
Brand Name: SCX-COB P0.9 ,P1.25 ,P1.56
Certification: CB,FCC CE
Model Number: P0.9
Payment & Shipping Terms:
Minimum Order Quantity: 6 sqm
Price: 1500usd per sqm
Packaging Details: wooden case,flight case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4500 sqm month
Contact Now
Detailed Product Description
Pixel Pitch: 0.9mm Weight: 4kg
Cabinet Resolution: 640x360 Moudle Size: 300X168.75mm
Maintain: 100% Front Access Control System: Nova Star
Operating Voltage: DC2.8V Scanning Mode: 1/64
Maximum Power: ≤50W Refresh Rate: 3840hz

Product Paramenters
Technical Parameter
Product Model
Full Flip-Chip COB
Applications
Indoor
X series
X 0.93
X 1.25
X 1.56
LED type
Full Flip-Chip COB
Pixel Pitch
0.9375mm
1.25mm
1.5625mm
Panel Size (mm)
600x337.5x42mm
Panel Weight (kg)
6±0.5Kg/panel
Module Size(mm)
150x168.75
Cabinet Resolution(Pixel)
160*180
120*135
96*108
Brightness (cd/m²)
600
Color Temperature (K)
3000-13000K adjustable
Refresh Frequency (Hz)
≥3840
Method of Installation
Hoisting/mounting/wall hanging
Viewing Angle(H/V)
H140°/V140°
Highest Contrast Ratio
1000000:1
Max power consumption (W/m²)
280
270
210
Avg power consumption(W/m²)
95
90
70
Frame Change Frequently (Hz)
50/60
Signal color processing bits
≥13bit
Pixel Density
1137778 dots/m²
640000 dots/m²
409600 dots/m²
Operating Voltage
AC:100V-240V(50~60Hz)
Continuous working time
≥7x24hrs
Average trouble-free operating
≥10000 hours
LED Life
100000 hours
Operating ambient temperature
-20°C~+50°C
Operating environment humidity
10%~95%RH.no condensation
Manufacturing Technique

Process Grade
Flip COB
(Full Flip Chip on Board)
Standard COB
(Chip on Board)
SMD
(Surface-Mount Device)
IMB
(Integrated Module)
Technical Difficulty
High
Moderately High
Low
Medium
Display Quality
Excellent
Excellent
Good
Average
Stability and Protection
Excellent
Good
Average
Average
Energy Efficiency
High
High
Moderate
Low
Cost
High
Moderately High
Low
Low

Application Scenario
High-end market, occasions with strict display requirements
Mid to high-end market, occasions with high stability and protection requirements
Mid to low-end market, occasions sensitive to cost
Low-end market, occasions extremely sensitive to cost

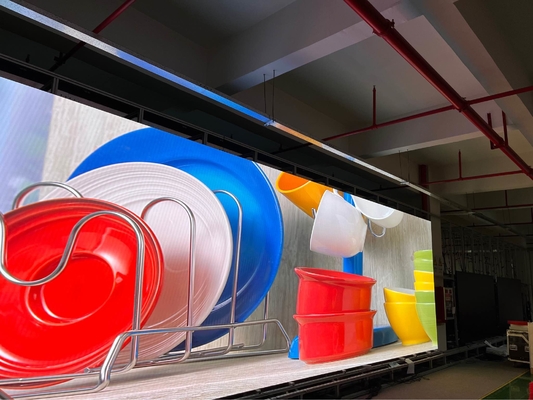

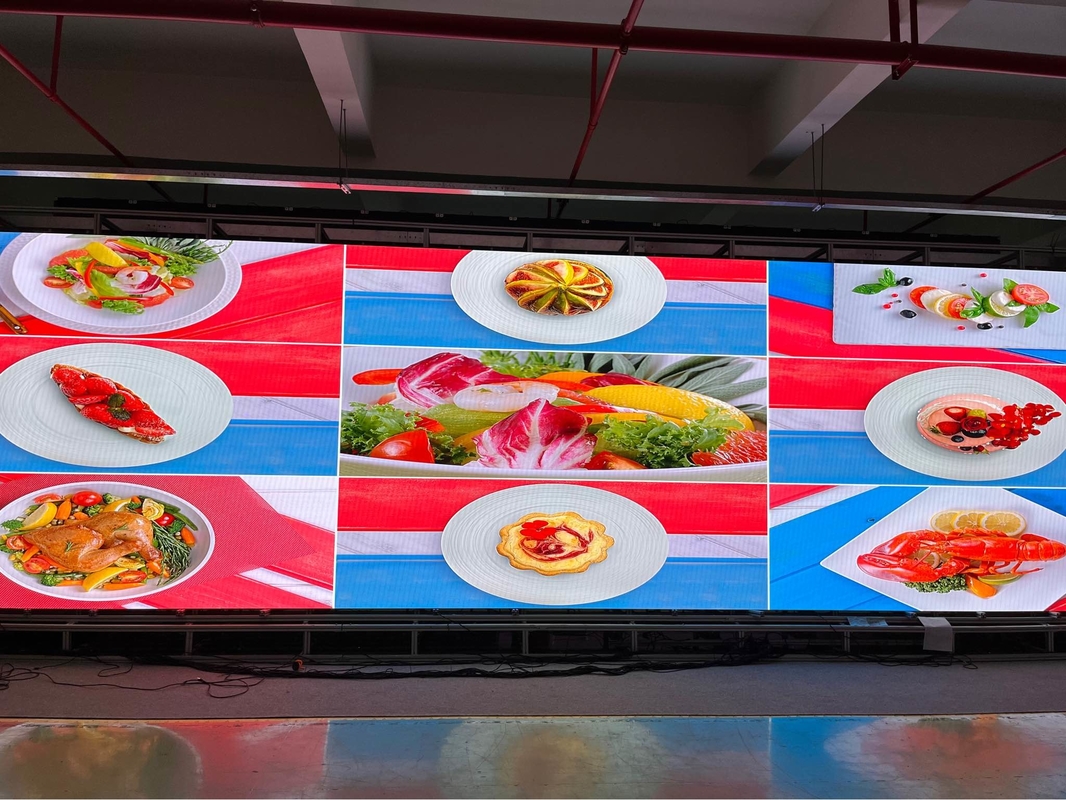

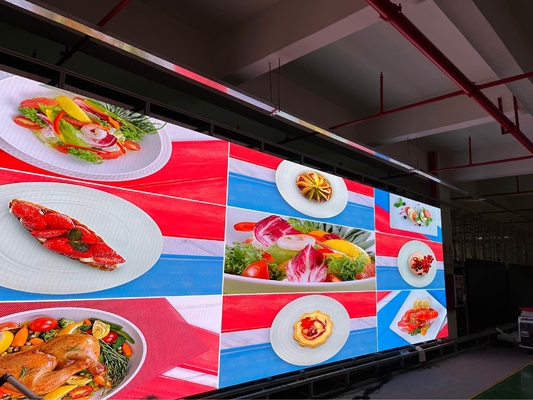

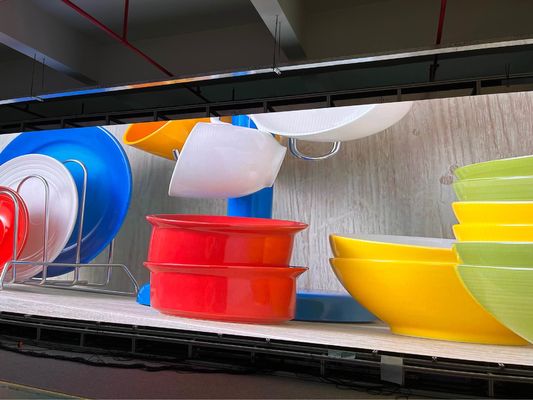

Project Case
0.9mm smaller Pitch Led Display Easy Installation Full Flip-Chip COB Adjustable Color Temperature 600cd/m2 Brightness 0


FAQ
Q.Can I have a sample order for led display?
A: Sample order is acceptable. we welcome clients to order sample for testing quality . Q. What about the lead time? A:Sample needs 5-7 days, Bulk order needs 7~14 working days. Q.How do you ship the goods and how long does it take to arrive? A: Led screens will be packed by wooden box or flight case. We usually shipped them by Sea. But client also can chose DHL, UPS, FedEx or TNT also option. Q. How to proceed an order for led screen? A: Please let me know your order requirements. So that we will quote price according your information. If everything confirm, we will send the PI to client and arrange deposit. When we get ready the order, client pay the balance. Goods can be shipped after that. Q. Is it OK to print my logo on led display product? A: Yes. Your logo can be print on the cabinet. Q: Do you offer guarantee for the products? A: Yes, we offer 2-3 years warranty to our products. Q: What would the screen weight be? A: The weight of aluminum profile or die-cast aluminum cabinet is between 22~30kg per square meter. The iron cabinet is generally 35~55kg per square meter. Q: If I only purchase LED modules, what other components do i need? A: For fixed installation, in addition to Led modules, customers also need to purchase sending cards, receiving cards, power supplies and a variety of cables. We will provide these components for a fee. Q: How do I install the LED screen? A: The screen with cabinet is easy to install, and only the cabinets need to be spliced together. If the customer only buys LED modules and components, we will provide detailed installation instructions. Q: How do I debug the LED screen? A: The clients told us in advance what length and width he needed to install. We will debug the LED screen before shipment. After installation, the client can use it immediately after connecting the sending card. We will also provide remote technical support.
