Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | 5m² |
|---|---|
| Price: | 1000-1100USD/M² |
| Packaging Details: | Wooden and flight cases,it's all up to you. |
| Delivery Time: | 10-12 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000M/²/Month |
| Product Brand: | SCXK-RGB LED Display | Popuse: | Renatl/Fixed |
|---|---|---|---|
| Application Place: | Indoor/Outdoor | Pixel Pitch: | 3MM |
| Module Size: | 192*192MM | Cabinet Size: | 576*576MM |
| Resolution: | 64*64 | Scan Mode: | 1/8 |
| Type Of Cabinet: | Die-cast Aluminum/Iron | Brightness: | ≥5000cd/m² |

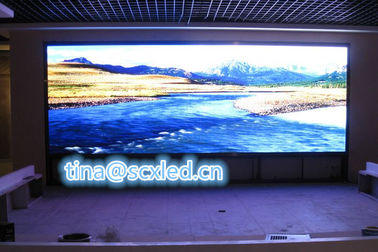

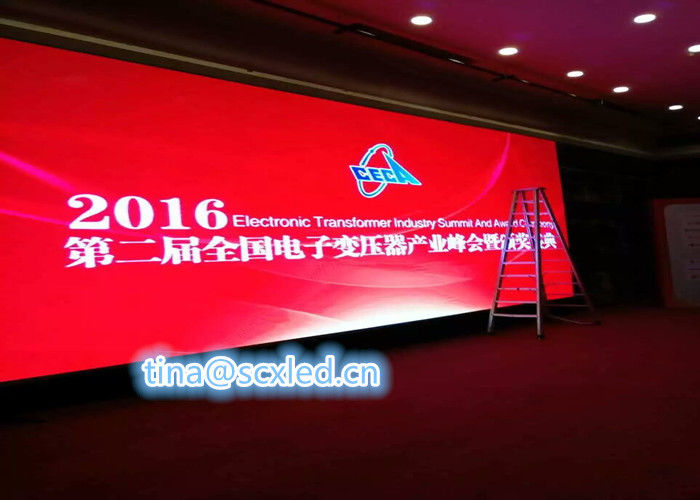

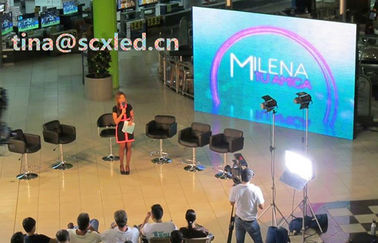

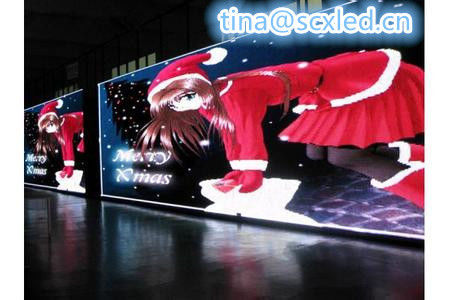

Full Color Rental LED Display P3 High Brightness Installed in the Commercial Centure
Why choose us?
1. We have our own factory, so the product quality is guaranteed,
and the price is lower than that of middlemen.
2. Our company has more than 10 years of experience in this field, and we are experienced and can provide you with thoughtful and meticulous service.
3. We have mature technology, so we can provide you with better technical support.
4. Our online service is also excellent, and any questions will be answered within 4 hours.
Payment terms:
T/T 30% in advance,70% before the delivery.
Delivery time:10-12 working days after receiving your down payment.
Warranty:Guaranty period for free maintance for 2 years.
Specifications of product:
| Outdoor P3 LED screen Display | |||||
| Resolution/mm | 3 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 111111/square meter | ||||
| Module resolution | 64*64mm | ||||
| Module size/mm | 192*192mm | ||||
| View distance | ≥3m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Out of control point | <1/10000 | ||||
| Aging hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
Q1: Can you provide OEM or ODM service?
Yes, our company specializes in OEM and ODM services with excellent R&D team, perfect quality and lighting solutions, just tell us what you think.
Q2: What kind of packaging is usually used for this product?
Usually we provide air box packaging (wooden box and flight case are available)
Q3: Can I print my logo on the lamps?
A: Yes, we can print your logo on the lamps for free.
Q 4: Do you offer a warranty on your products?
A: We offer a three-year warranty. The defective rate of our products is less than 0.2%.
Q 5: How long does it take to produce after an order is placed?
A: It depends on the quantity of the order. Most online wholesale orders are shipped within 3-5 days after payment is received.
Q 6: What payment methods do you accept for full orders?
We offer a variety of payment methods including PayPal, Visa, MasterCard, Alibaba Trade Assurance, Western Union, and Wire Transfer (T/T).
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
