|Place of Origin:||China|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000sqm per month|
|Product Name:||P10 Led Full Color Outdoor Led Video Panel Display Signs Novastar||Usage:||Outdoor|
|Led Type:||DIP 5050||Waterproof:||IP68|
|Cabinet:||Steel Or Aluminum For Options||Warranty:||5 Years|
full color led signs outdoor,
outdoor full color led screen
p10 led full color outdoor led video panel display signs novastar
♦ Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

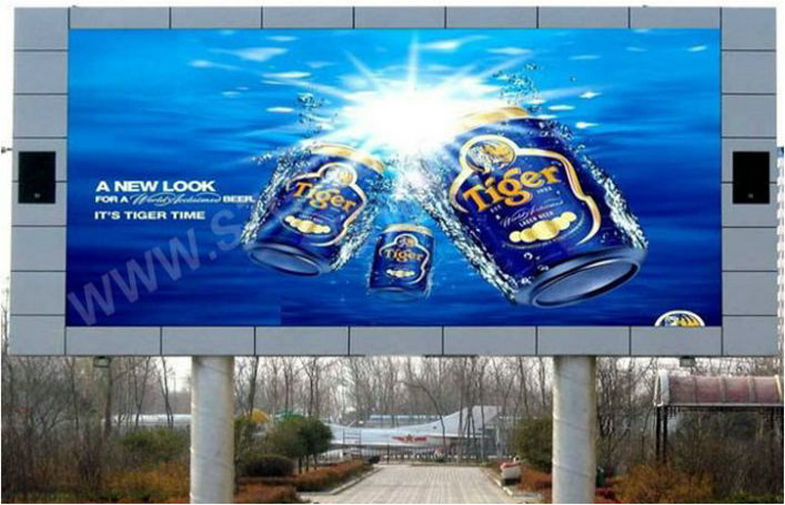

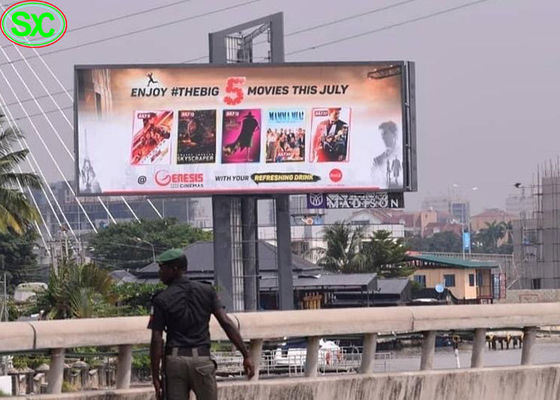

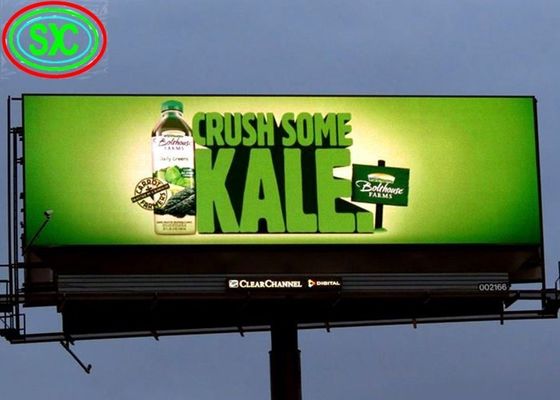

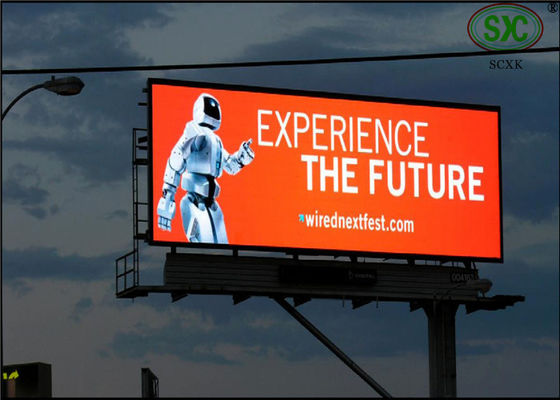

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Technical specification
|outdoor SMD P10|
|Single point brightness adjust||Can be added|
|Single point color adjust||Can be added|
|White balance brightness||>8000cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||60(degrees)|
|Signal Process bit||10 or 16bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||Internet cable:100m, multimembrane:500m, monofilm:2km|
|Driving mode||Constant driving current|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
