P5 Outdoor Rental LED Video Wall Screen IP65 Waterproof 5mm Pitch

P5 Outdoor Rental LED Video Wall Screen IP65 Waterproof 5mm Pitch

Brand Name:	SCXK
Model Number:	P5
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

5mm

Tube Chip Color:

Full Color

Led Type:

SMD2121

Display Function:

Video

Waterproof:

IP65

Cabinet:

Die Casting Aluminum

MBI:

5024

Viewing Angle:

H:100 V:50

Optimal Viewing Distance:

>=5m

Voltage:

DC5V

LED Parameter:

R:625-630nm

Module:

320*160mm

Cabinet:

640*640mm/

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Outdoor Event Rental LED Screen

Outdoor Rental LED Video Wall Screen

960*960mm Outdoor Rental LED Screen

Product Description

Outdoor Event Rental Full Color LED Video Wall Screen P5 960*960mm with 320*160mm Module

Product Specifications

Attribute	Value
Pixels	5mm
Tube Chip Color	Full color
Led Type	SMD2121
Display Function	Video
Waterproof	IP65
Cabinet	die casting Aluminum
MBI	5024
Viewing angle	H:100° V:50°
Optimal viewing distance	≥5m
Voltage	DC5V
LED parameter	R: 625-630nm
Module	320*160mm
Cabinet	640*640mm

Product Description

Outdoor Waterproof P5 Stage Events LED Video Wall Rental Screen with 3~5 Years Warranty

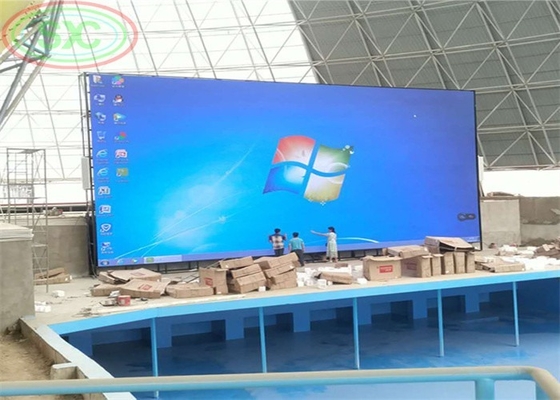

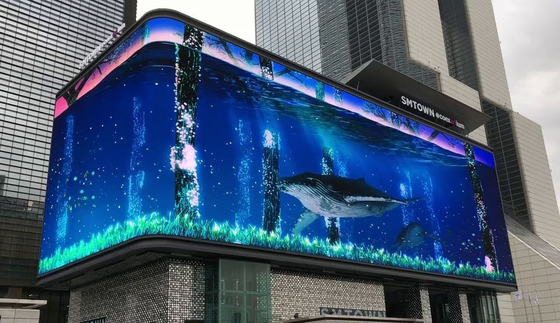

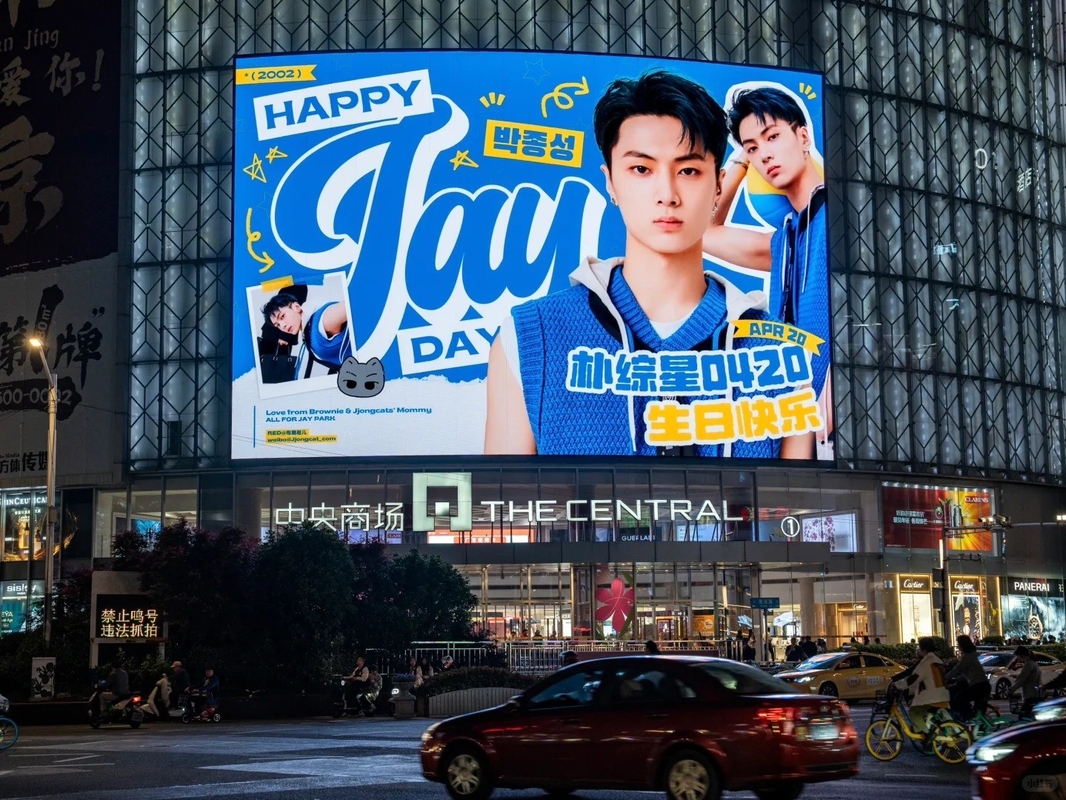

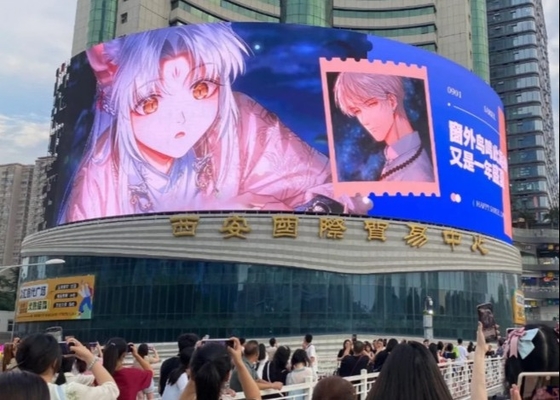

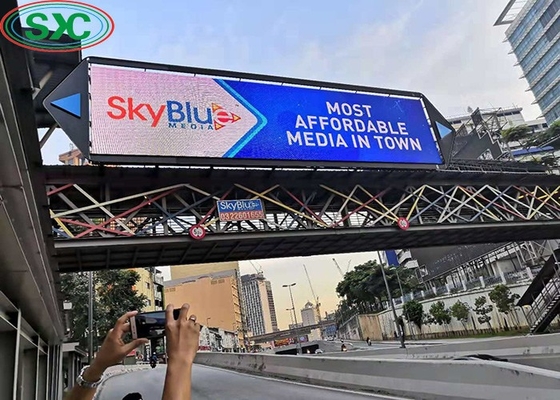

P5 Rental LED Screen Applications

Ideal for outdoor advertising and events, this rental LED display features adaptability to various brightness levels and outdoor conditions. Perfect for stages, banks, promotions, exhibitions, stations, KTVs, stadiums, airports, and other outdoor venues.

High Gray Scale - Superior Picture Quality

Manufactured with premium materials, our LED display delivers exceptional performance with high refresh rates and gray scale for seamless picture quality.

Wide Viewing Angle for Maximum Visibility

With a 120° horizontal and vertical viewing angle, the display ensures consistent picture quality from all directions, making it perfect for large gatherings.

Strict Quality Assurance

All products undergo a rigorous 72-hour aging test to ensure no dead lamps, dim lamps, color differences, or mosaic issues before market release.

Technical Parameters

Pitch size	5mm
Module size	320mm*160mm
Panel pixel(dots)	64*32
Pixel configuration	1Red, 1Green, 1Blue
Color scale	256-65536grade/16777216colors
Pixel density	40000 pixels/square meter
View angle(H/V)	160/120 degree
Brightness	≥5000cd/square meter
View distance	5-150m
Power consumption	100-1200W/square meter
Net weight	8kg/pcs
Operating temperature	-25°C~+60°C
Operating humidity	10%--95%RH
Life time	≥100,000hours
Exchange frame speed	>150frames per second
Refresh frame frequency	1920-3840 Hz
Control distance	100m (without relay), single mode fiber: 20000m, multi mode fiber: 500m-20km
Power	110V/220V/380V±15% 50Hz
Operating system	Windows98/Me/2000/Xp
Drive mode	constant current driving
Display mode	VGA640X480--VGA1600X1024
Protections for outdoor display	IP65
Accepting signal	PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI

Installation Procedure

Packing & Shipping

Packing: Wooden & Flight case are available

Shipping: By Air, Sea, DHL, UPS, EMS

Frequently Asked Questions

Q1: What's your payment term? How long does delivery take?

A: We accept T/T and L/C. Production time averages 16 days after receiving deposit.

Q2: Can I place a sample order?

A: Yes, we welcome sample orders for quality testing.

Q3: What about your pre-sale and post-sale service?

A: Our professional sales and technical teams provide complete project solutions. Post-sale support includes usage guidance, module replacement, and on-site technical assistance when needed.

Q4: What control system do you use?

A: We use Linsn, Nova, and Carlette control systems.

Q5: What's the warranty for your LED Display Screen?

A: 2-year warranty with 100,000 hours LED lifespan.

Q6: How to place an order for LED display?

A: 1) Share your requirements (project size, rental/fixed installation)
2) We provide quotation
3) Confirm order and place deposit
4) We arrange production and delivery
