| Brand Name: | Shichuangxinke |
| Model Number: | SCXK-P4.81 |
| MOQ: | 1 square meters |
| Price: | USD1200-1400per square meters |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |

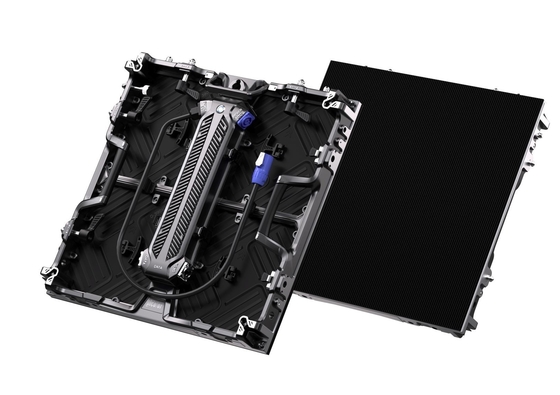

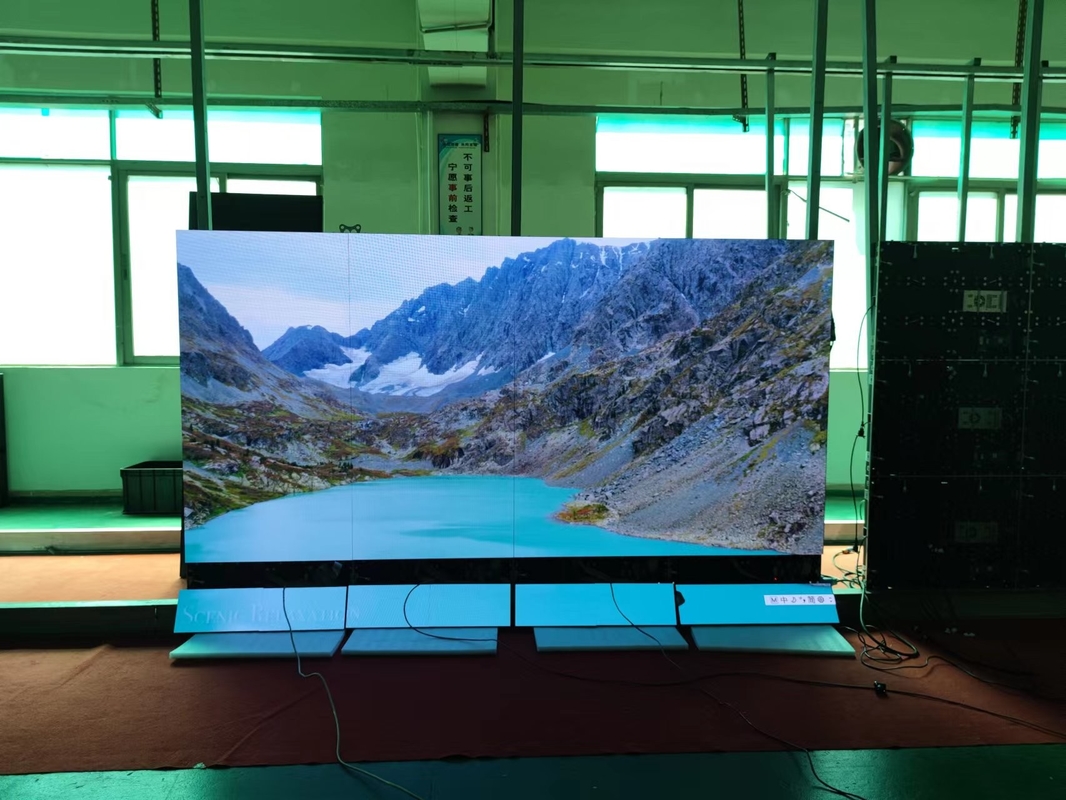

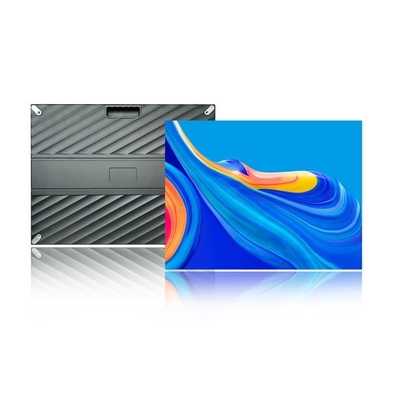

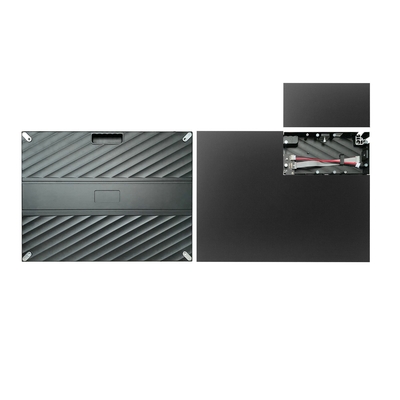

Hot sale rental P4.81 new images hd led display screen for videos and photos
Specifications :
| outdoor SMD P4.81 | |||||
| Resolution/mm | 4.81 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/m² | ||||
| Module resolution | 52z52 | ||||
| Module size/mm | 250x250mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Service goal:
Fast, timely, professional, customer first
1,Free consultation before and after sale.
2,Warranty period: 2 years.
3,Maintenance and repair. Timely response (within 4 hours). Repair within 24 hours for general faults and 72 hours for serious faults. Regular maintenance.
4.Long-term provision of spare parts and technical service fees.
5,Provide technical support for important actions and plans.
6,Free system upgrade.
7,Free training.
Q1: What is your lead time?
A: Under the normal condition, sample order for 3-7 working days, regarding mass order, if we have available raw material,the lead time will around 15 working days, otherwise, would be 20-30 working days
Q2: What is your payment method?
A: Our usually practice for payment is by T/T for the mass order and also we do the trade assurance ( Provided by Alibaba and Gteak to make sure your payment, shipment, goods’ quality security and ensurance)
Q3: What is your shipping and packing way?
A: We do wood box or flight case as per customers’ requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airlin
Q4: Can i place a sample order before i decide to do the mass production?
A: Yes, we acceptable sample orders led display, please let us know your detail request then we will send you the sample asap for confirmation.
Q5: Can i have a free sample?
A: We offer free sample for some models, please advise what you need to see if we have available free samples here to be sent
Q6: Can we make any size of led display?
A: Nope, according the led module size and cabient size, such as ph4.81mm is 500x500mm for smallest unit.
Q7: How to install led display?
A: We will provide drawing of steel structure or hanging truss,then you can install led display very easy.
![]()
![]()
![]()
![]()
![]()
![]()
