P10 Outdoor Full Color LED Display P10mm , outdoor led video display

P10 Outdoor Full Color LED Display P10mm , outdoor led video display

    • P10 Outdoor Full Color LED Display P10mm , outdoor led video display
    • P10 Outdoor Full Color LED Display P10mm , outdoor led video display
  • P10 Outdoor Full Color LED Display P10mm , outdoor led video display

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SLS-F2

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Usage: Outdoor Display Function: Video
    Module Resolution: 16x16 Frame Rate: 60Hz
    IP Degree: IP68 Warranty: 3 Or 5 Years

    P10 Outdoor Full Color LED Display P10mm , outdoor led video display





    ♦ Our mission:



    To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.





    ♦ Product Description



    1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
    2. Nice appearance and simple structures.
    3. Jointed correctly, being installed & dismounted by one person without tool.
    4. Humanized operating interface with breakdown indicator lights, easy to maintain.
    5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

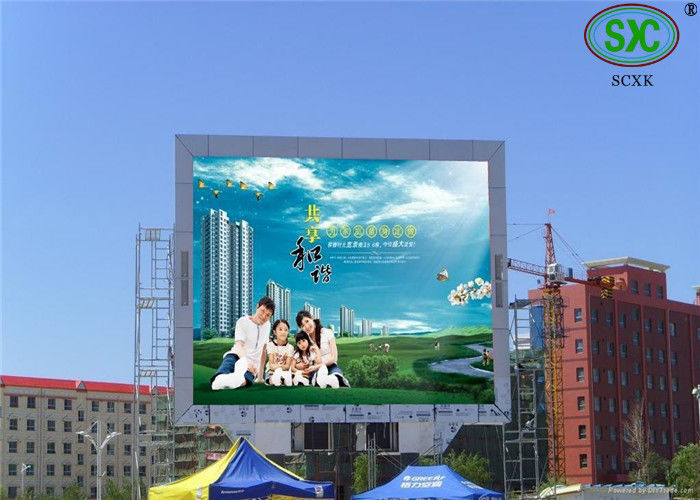

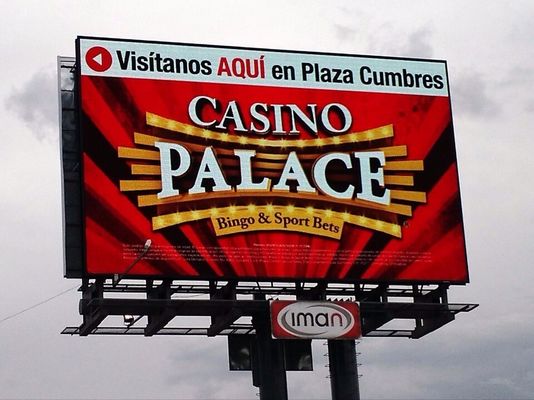

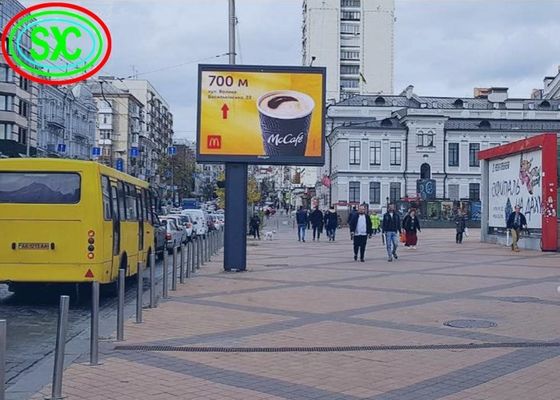

    ♦ Applications



     --- Outdoor and indoor advertising, digital billboards, advertising companies
     --- Sports halls, fields, playgrounds,school church
     --- Airports, bus stations and railway passenger terminals.
     --- Facades of shopping malls, department stores, banks and car dealerships.
     --- Architecture and social projects, information systems in cities.
     --- Show-business, concerts, festivals, motor shows and other public events.





    ♦ Technical specification



    outdoor  SMD P10
    Resolution/mm 10
    Pixel configuration 1R1G1B
    Pixel density/pixels/m² 10000/m²
    Module resolution 16x16
    Module size/mm 160x160
    View distance 4-250m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 16bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode Constant driving current
    Scanning mode (1/4)
    Frame rate 60Hz
    Refresh frequency >3000Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃
    Maximum power:/㎡ <950W
    Average power:/㎡ <350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast  (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%





    ♦ Production process



    1)  Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing





    ♦ Packaging and shipping



    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.





    ♦ Why choose us



    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.





    ♦ Frequently Asked Questions



    What kind of payment terms you can accept ?

    We can accept T/T and Western Union.



    What about your Led Display  quality ?

    Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

    our products continuity.



    What is your delivery time ?

    Within 7-35 days according to your area and quantity.



    Is your LED display competitive ?

    Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

    our led display’s competitiveness.
